MINIX NEO Z64 is an Intel Atom Z3735F Bay Trail mini PC Selling for $129

Orange Pi Development Boards

If you thought the upcoming ZBOX ZOTAC PI320 mini PC powered by Intel Bay-Trail-T Atom Z3735F quad core processor was nice and small (and powerful), but at $199, a little pricey, MINIX NEO Z64 may be what you are looking for. On On the outside, NEO Z64 looks very much like the company’s NEO X8 Android TV Box, but inside it’s powered by the same Z3735F processor with 2GB RAM, and 32GB eMMC, and it’s is expected to sell for just $129.

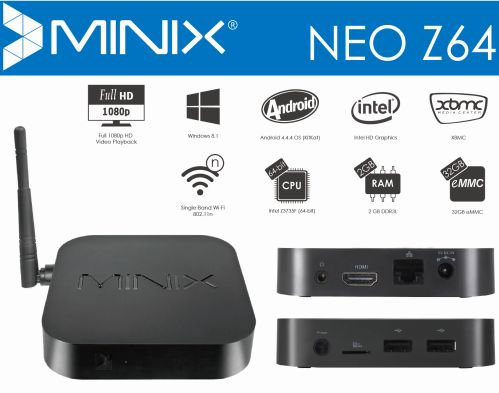

MINIX_NEO_Z64MINIX NEO Z64 specifications:

  • SoC – Intel Atom Z3735F “Bay Trail” quad core processor @ 1.33 GHz (Burst freq up to 1.83 GHz) and Intel HD Graphics
  • System Memory – 2GB DDR3L
  • Storage – 32GB eMMC flash  + micro SD slot
  • Connectivity – 10/100M Ethernet, Wi-Fi 802.11n + Bluetooth 4.0
  • Video Output – HDMI
  • Audio Output – Analog Stereo output, HDMI
  • USB – 2x USB 2.0
  • Misc – Power button, IR receiver
  • Power Supply – 5V/3A
  • Dimensions – 13.5 x 12.5 x 2.5 cm (based on MINIX NEO X8 dimensions)

The system will support either Android 4.4 (pre-installed), or Windows 8.1 (optional) operating systems, and will be sold with power supply, and a IR remote control. It will also support XBMC out of the box, but for x86 platform it’s sort of expected. Contrary to my initial belief when I posted about ZOTAC PI320, it may not be that simple to install Linux on the platform, as it’s unclear whether any Bay Trail-T platforms are currently fully supported.

The $129 price tag, if true, if about the same price as their NEO X8 powered by Amlogic S802 quad core processor, which should have much less CPU power, less storage (8 vs 32GB), but possibly better multimedia capabilities (TBC). For example, the latter comes with optical S/PDIF output which lacks in the Intel version.

MINIX NEO Z64 has not been yet formally announced, but should be launched in the next few weeks. [Update: MINIX announced the released date should be October 2014].

Via AndroidPC.es and Fudzilla

19
Leave a Reply

avatar
19 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
11 Comment authors
CNXSoft – Embedded Systems News » MINIX NEO Z64 Windows 8.1 / Android Intel mini PC Should Sell Soon for $148Tired_iPC002 is an Ultra Thin Windows 8.1 mini PC with a 7,000 mAh BatteryGiada F110D and Asus E210 Fanless mini PCs Feature Intel Bay Trail Celeron N2807 Processor10moons iBox D9i Intel Mini PC with 2GB RAM & 16GB eMMC Flash Sells for $82 in China Recent comment authors
  Subscribe
newest oldest most voted
Notify of
CSylvain
Guest
CSylvain

It is not very efficient at the VPU :
Decoding MPEG2, H.264/AVC, VC-1
Encoding : H.264/AVC MPEG2

However, it may be well for the office.

dhead666
Guest
dhead666

@cnxsoft

Don’t mind post from people who can’t google.
Users do run Linux on top of these devices, google Asus T100 and Dell Venue 8 Pro.
From what I read graphics and vaapi does works on the T100 also audio but not on the Venue (though the last post on this is quite old).
I will add that both using Z3775 (Z3775D for the Venue).

And the user that compared Linux to Windows in regards to the state of audio passthrough is clearly not aware that the with the Nuc N2820 passthrough works in the former but not in the latter, so you can’t assume anything.

dhead666
Guest
dhead666

@dhead666
My mistake: Venue uses Z3740D while T100 Z3775.

manny
Guest
manny

Me need linux in this 🙂

dhead666
Guest
dhead666

@dhead666
I dropped the comma:
“graphics and vaapi does works, on the T100 also audio but not on the Venue”

Marius
Guest
Marius

I doubt the minix will retail for this price but we always get cheaper versions from other manufacturers for a lot less. It’s just important for the trend to start and for Intel SOCs to catch on.
The new Intel SOCs will surely give ARM some serious trouble and they’re much more flexible due in part to the good state of Intel open source support.

Jibril
Guest
Jibril

Windows 8.1 (optional) OS on 2 GB Ram Single Channel (maximum for Atom Z3735F) … really ?? LOL

werewolfc
Guest
werewolfc

Looks interesting !

Galll0s
Guest
Galll0s

@Jibril

Seems like… omg

trackback

[…] this week, we’ve seen MINIX NEO Z64 mini PC based on Intel Atom Z3735F that will sell for less than $150 in October. If you’d […]

Harley
Guest
Harley

Intel Atom Processor Z3735F (2M Cache, up to 1.83 GHz) spec:
http://ark.intel.com/products/80274/Intel-Atom-Processor-Z3735F-2M-Cache-up-to-1_83-GHz

trackback

[…] already been informed about Intel Bay Trail mini PCs such as NEO MINIX Z64, MeLe PCG03 and Meego Pad P01, but the first two are not available yet (MeLe mini PC will ship by […]

trackback

[…] many small computer based on Intel Atom Bay Trail-T (Tablet) Z3735F/G processor lately including MINIX NEO Z64 and MeegoPad T01, which should ship by the end of the month (it keeps getting postponed). But Intel […]

trackback

[…] Z3735f/g tablet processors have been announced in the last few months, including MeegoPad T01 and MINIX NEO Z64. But iPC002 introduced to me by VISSON, is a little different, as it includes most features of a […]

Tired_
Guest
Tired_

Did this ever come out, or is it vapour?

trackback

[…] MINIX NEO Z64 mini PC powered by Intel Atom Z3735F was unveiled in September 2014, but as other Windows 8.1 Intel based mini PCs hit the market in late December, early January, some people suggested NEO Z64 may end up being vaporware… Fortunately, it appears those people might be wrong, as I’ve been informed of a cached page on DX.com selling the computer for $148.07 with Android 4.4.4 pre-installed. […]
