Yesterday I wrote about MINIX NEO X6 featuring Amlogic S805 quad core Cortex A5 processor with HEVC hardware decoding. MINIX device is expected to sell later this month for around $120, but I’ve been informed there’s another model called TV110 with similar hardware specifications, but selling for around $60 or even lower on sites like GeekBuying and Aliexpress. I’ve seen one of the seller offering $10 coupon, so it might even be possible to get it for $50.

TV110_Android_TV_BoxTV110-S805 specifications:

  • SoC – Amlogic S805 quad core ARM Cortex A5 @ 1.5GHz with quad core Mali-450MP GPU
  • System Memory – 1 GB DDR3
  • Storage – 8 GB NAND flash + micro SD slot
  • Connectivity – 10/100M Ethernet, 802.11 b/g/n Wi-Fi (2.4 GHz), Bluetooth 4.0
  • Video Output – HDMI 1.4, AV output
  • Audio Output – HDMI 1.4, 3.5mm stereo audio jack
  • USB – 2x USB 2.0 port
  • Misc – IR sensor
  • Power Supply – 5V/2A
  • Dimensions – N/A

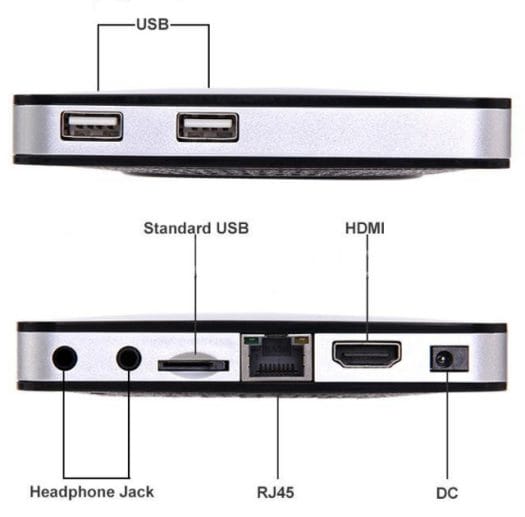

TV110-S805_Ports
(Somewhat inaccurate) TV110 Ports Description

The box runs Android 4.4, and comes with an IR remote control, AV and HDMI cables, a 5V/2A power adapter, and a user’s manual in English. Compared to a device like MINIX NEO X6, you’ll lose the micro USB OTG port, the box probably uses NAND flash instead of eMMC, but you’ll gain AV output so this media player can also be connected to older TVs. It’s also not clear whether it can support HDMI CEC, and support (firmware update / community) will probably be limited.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

21
Leave a Reply

avatar
21 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
8 Comment authors
Stane1983Paulonebir$60 EC-U6D Android Media Player Powered by Realtek RTD1195 Supports 4K/HEVC, USB 3.0 and Gigabit EthernetMXQ S85 Android TV Box Based on Amlogic S805 is Available for $50 Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Gabe
Guest
Gabe

I have one of these with a white remote.
Manufacturer is ECT Dongzhou Technology:
http://www.usb-ect.com/index.php?case=archive&act=show&aid=148
Marking on PCBA is : ECT_TV110_V1.1 20140714
WIFI chip is AP6210, which should support bluetooth.(on my box neither wifi or bluetooth worked, probably defective, but I got partial refund from Aliexpress seller.)
Here is CPU-Z info:
http://valid.canardpc.com/a/f2f8k5
Min. frequency should be 96 MHz I think.
Governor setting is hotplug.
Rooting is easy via EZ root update ZIP:
http://www.freaktab.com/showthread.php?12076-EZ-root-update-ZIP-for-s802-(all)-quot-Stock-ROM-quot-ROMs
Google play store didn’t work, but after rooting I’ve deleted the google apps & copied apps from gapps (downloaded from the net) priv-app folder to /system/priv-app. So finally Google Play store worked.
One other thing is that after you shutdown the box via remote you can’t turn it on(have to unplug & plug power adapter back), but this seems common with S802 boxes too.

Rocker
Guest
Rocker

Again, still no HEVC/H265 hardware video decode support in XBMC/Kodi yet?

One would think that it would be in the interest of SoC manufacturers and larger makers/resellers of media players like Geekbuying, MINIX, and Matricom to sponsor more XBMC/Kodi developers at least with hardware and early SDK availability so features like HEVC/H265 hardware video decode and HDMI-CEC support code get added to the official upstream version of XBMC as soon as possible.

Gabe
Guest
Gabe

Also it has an internal antenna & no micro USB OTG port(specs are wrong). HDMI CEC for me it isn’t working.
HEVC 1080p playback with default player works.

dhead666
Guest
dhead666

@Gabe

Have you tried 4K/UHD HEVC ?
(it can’t output 4K but can it play it ?)

Gabe
Guest
Gabe

I’ve tried a file, but didn’t work.

dhead666
Guest
dhead666

@Gabe
Thanks.

djwyze
Guest
djwyze

i dont see an AV port on this unit

Gabe
Guest
Gabe

I see a stock firmware has been released(it’s newer than the firmware on my box), it’s an img so have to flash with Usb Burning tool, problem is there is no microUSB OTG port and reset button either.

Gabe
Guest
Gabe

@cnxsoft
Well I remember correctly when opening the box I didn’t found anything behind the AV port,but I will open it again & take a picture.

Gabe
Guest
Gabe

Here are some photos, no reset button inside the AV port:
https://drive.google.com/folderview?id=0B10UT829N36jdUZEYjA3OHF0Q1k&usp=sharing
I’ve asked the manufacturer a method for updating.

trackback

[…] media players powered by Amlogic S805 quad core processor such as TV110 are already pretty cheap at around $60, but there’s currently a deal on Gearbest where you […]

trackback

[…] EC-U6D Android TV box on Aliexpress for $59.99 including shipping, so it competes on price with Amlogic S805 TV boxes powered by a quad core Cortex A5 processor, with H.265 hardware decoding, but that only support […]

Paul
Guest
Paul

@Gabe
Has anyone gotten far with this? I am looking for the firmware but I can’t find it anywhere. Also, does everyone have the different launcher then the other AML QuadCore boxes. I really want to fix my box and customize it a little.

Gabe
Guest
Gabe

There are two firmwares, but they are in img format, so the must be flashed with USB Burning tool. Don’t know how to connect to computer yet & no recovery or reset button anywhere, maybe one USB port is OTG.
