Radxa Rock 2 Development Board Pictures and Specifications

Radxa Rock 2 is an upcoming development board based on Rockchip RK3288 quad core Cortex A12/A17 processor, which will run Android, and I would expect it to have better support for Linux desktop distributions than the original Radxa Rock board thanks to the current work done by Rockchip and Google on Chromium OS, which could bring 2D/3D graphics, and hardware video decoding to the platform. The board is not available for purchase yet, but pictures have been published, and specifications released.

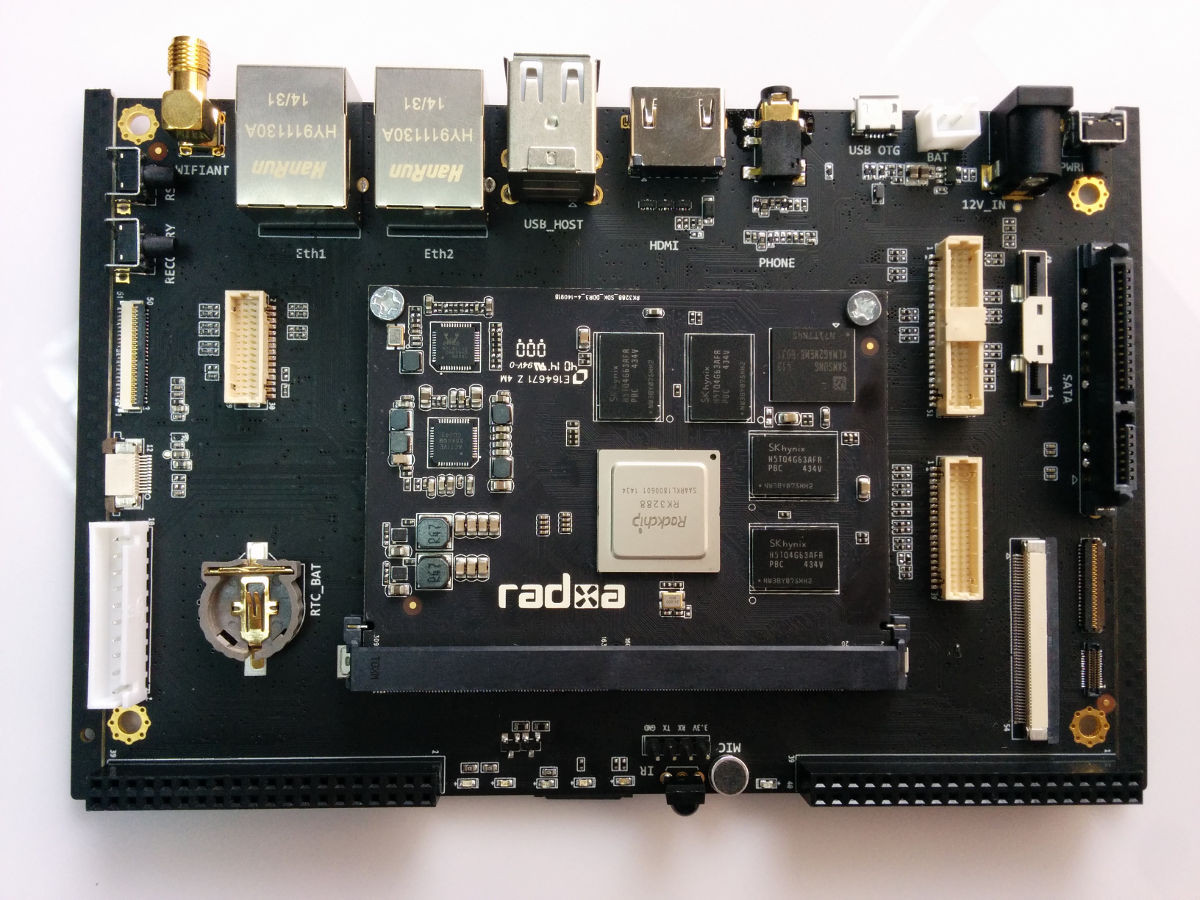

Radxa Rock 2 (Click to Enlarge)
Radxa Rock 2 (Click to Enlarge)

So the new board is comprised of a baseboard and a system-on-module (SoM), which should help Radxa’s customers design their own products, while using Radxa SoM, and doing early development on Radxa Rock 2 board.

Radxa SoM specifications:

  • SoC – Rockchip RK3288 quad core ARM Cortex-A17 processor@1.8Ghz with ARM Mali-T764 GPU with support for OpenGL ES1.1/2.0/3.0, OpenCL 1.1, DirectX 11
  • System memory – 2GB (4GB optional), 64bit DDR3@800Mhz
  • Storage – 16GB eMMC on board
  • Connectivity – Ethernet PHY (Realtek)
  • Connector – 314-pin MXM edge connector (TBC)
  • Dimensions – N/A

This module is connected to a baseboard with the following specifications:

  • External Storage – microSD slot up to 128GB, SATA 2.0 up to 4TB connected via USB 2.0 to SATA bridge
  • Video Output
    • HDMI 1.4 and 2.0 compatible, up to 4kx2k@60hz
    • LVDS up to 1080p@60hz
    • eDP up to 4kx2k@30hz
    • MIPI up to 1080p@60hz
  • Audio – HDMI, 3.5mm headphone jack, built-in microphone
  • Connectivity
    • 2x 100/1000M Ethernet
    • Dual band Wi-Fi 802.11 b/g/n/ac, Bluetooth 4.0 (AP6335 module) + external antenna
    • Built-in 3G module + SIM Card
  • Camera – 24-pin MIPI CSI connector
  • USB – 2x USB host ports, 1x micro USB OTG port
  • Expansions Headers – Two 2×20-pin headers for IOs, various other unmarked connectors
  • Debugging – 4-pin UART header for console
  • Misc – Recovery, reboot, and power buttons, IR receiver, battery slot for RTC,
  • Power – 12V input, Li-Po battery connector
  • Dimensions – N/A

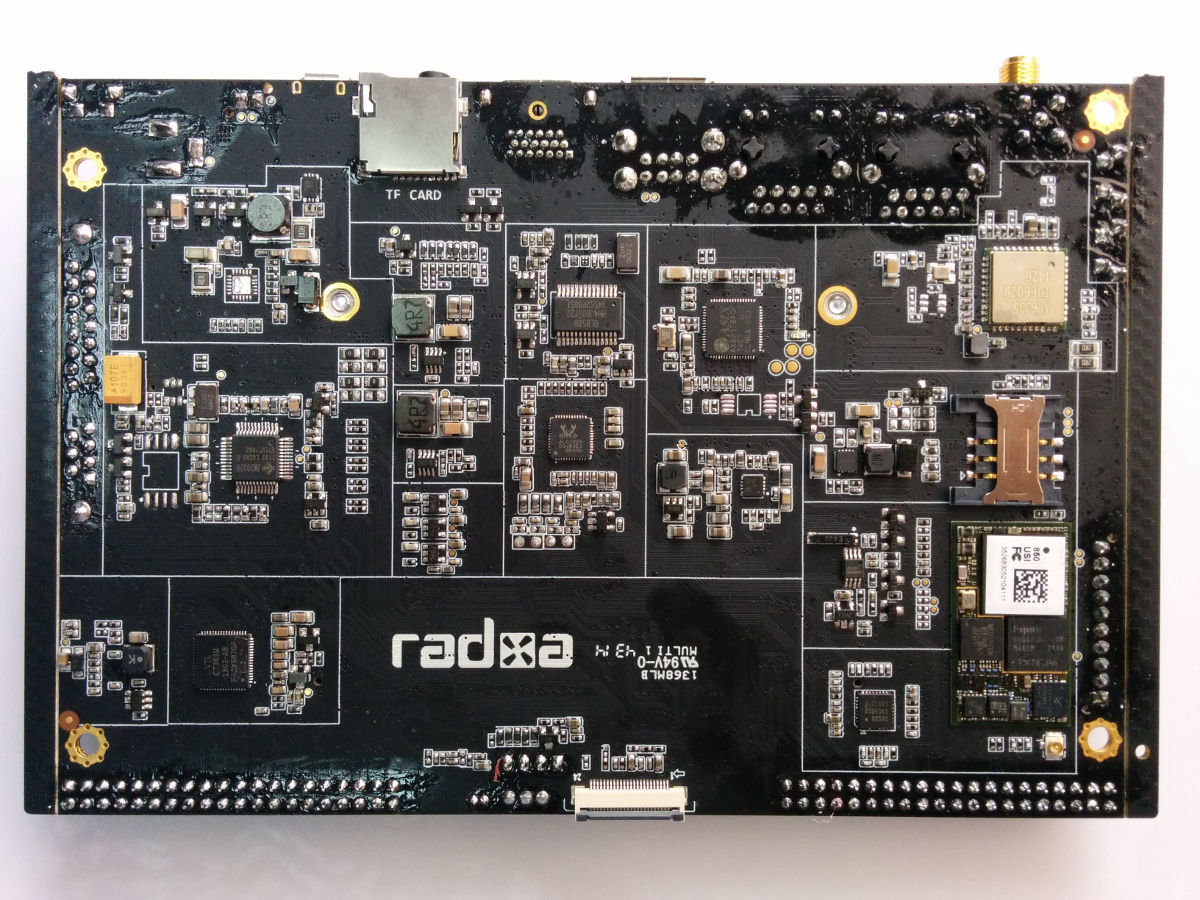

Bottom of Radxa Rock 2 Baseboard (Click to Enlarge)
Bottom of Radxa Rock 2 Baseboard (Click to Enlarge)

Radxa Rock 2 is rather feature-packed, and does not seem optimized for cost. Tom Cubie also confirmed the board was targeting commercial applications, and this version won’t be a low cost board, but they’ll still sell it to individuals who want it. A few more pictures can be found on Radxa Rock 2 page. Availability information is not available at this stage.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

9 Replies to “Radxa Rock 2 Development Board Pictures and Specifications”

  1. USB to SATA – is this the only way it can be done on these boards? I know that can neuter the performance….

  2. @Digitlman
    That depends on the SoC, and Rockchip RK3288 does not have SATA, so USB (or PCIe when available) are the only solutions.

    Rockchip RK3288 does have a GMAC, so its a direct connection. There must be a Gigabit switch (Realtek) on the board too, in order to provide two Gigabit Ethernet connection.
