Raspberry Pi, Banana Pi, and ODROID-C1 Boards Power Consumption

Mikronauts has recently reviewed MIPS Creator CI20, ODROID-C1, and Raspberry Pi 2 Model B. R-PI 2 review is especially interesting since this is the last one, and the reviewer goes to compare all Raspberry Pi models (A, A+, B, B+ and 2 B) with Banana Pi, Banana Pro, MIPS Creator CI20, and ODROID-C1 development boards. The benchmark results are good to know, and expected with ODROID-C1 the fastest of the bunch both in terms of CPU and storage performance, but here I’ll just share the results of his power consumptions testing.

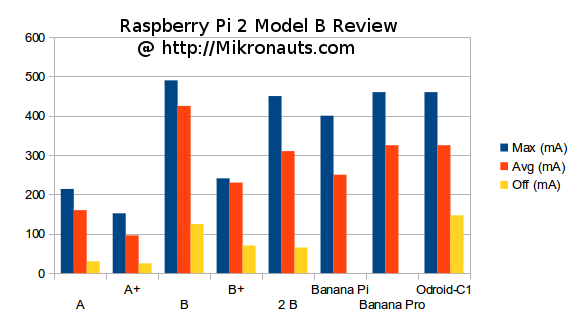

Raspberry_PI_ODroid_Banana_Power_ConsumptionSince all platforms are powered by a 5V power supply, I’ve converted the results into watts.

Model Max (W) Avg (W) Off (W)
A 1.07 0.80 0.15
A+ 0.76 0.48 0.125
B 2.45** 2.12 0.62
B+ 1.20 1.15 0.35
2 B 2.25 1.55 0.325
Banana Pi 2 1.25 0
Banana Pro 2.3 1.62 0
Odroid-C1 2.3 1.62 0.735*

* Connecting an ON/OFF switch to ODROID C1’s power header will allow for turning off the board completely (0W).
** Updated with correct value

For battery powered applications, Raspberry Pi A+ is clearly the best choice out of the list, ODROID-C1 and Raspberry Pi 2 Model B+ have quite similar power consumption values with a slight advantage to the latest Raspberry Pi model, except for soft power off where ODROID-C1 power consumption is about double.

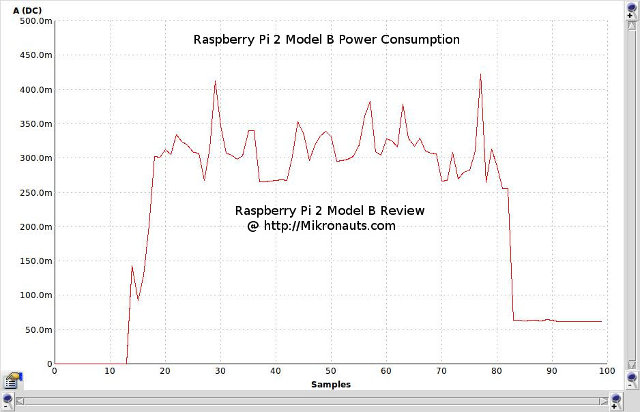

The downside of these measurements is that there’s no indication of the program(s) running during measurements. He only shared the following chart for the Raspberry Pi 2 Model B, which made me assume the measurements are made when the board is idled, and after power off.

Raspberry_PI_2_Power_ConsumptionHowever, looking at ODROID-C1 measurements,  the chart looks a bit different with a spike, and the measurement duration is also longer (130 seconds vs 100 seconds), but this should not affect the conclusion that much.

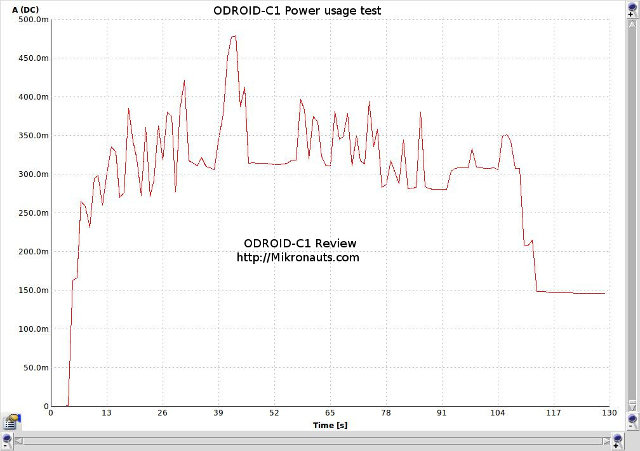

ODROID-C1_Power_ConsumptionThe procedure is also clearly explained with “the chart showing ODROID-C1 powering up, waiting a few seconds, opening the web browser, waiting a few seconds, and shutting down the desktop”.

Thanks to José for the links.
