Mixtile LOFT-Q Allwinner A31 Board with SATA Can Now be Purchased for $90

Orange Pi Development Boards

Mixtile LOFT-Q and LOFT Kit were unveiled nearly a year ago, the first being a development board based on Allwinner A31 processor with 2GB RAM, 16GB RAM,  SATA connector, Gigabit Ethernet, etc.., while the second is a kit with an enclosure and power supply. The kit does not appear to be available yet, but the board has recently been listed on SeeedStudio for $90.

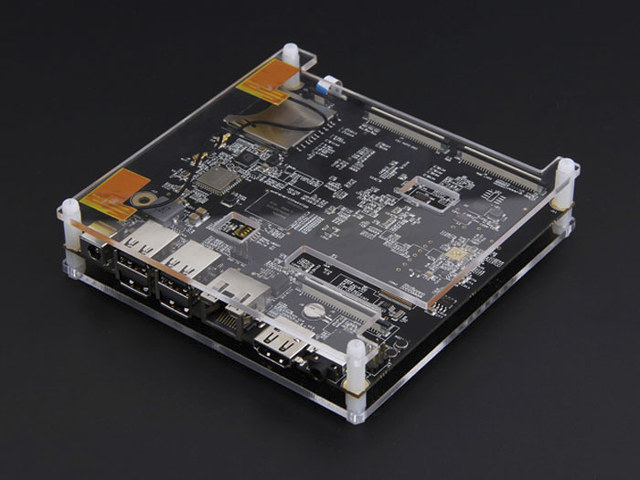

Mixtile_LOFT-Q

Mixtile LOFT-Q specifications:

  • SoC – Allwinner A31 quad core ARM Cortex-A7 processor with PowerVR SGX544 MP2 GPU
  • System Memory – 2GB DDR3
  • Storage – 8GB eMMC, SATA III connector for 2.5″ drives, and SD card Slot
  • Video Output – HDMI 1.4 up to 1080p60
  • Video Decoding – H.264 4Kx2K video decoding, multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264,etc
  • Audio I/O – HDMI, 1 S/PDIF, high definition microphone
  • Camera I/F
    • Integrated Parallel & MIPI I/F sensor
    • Integrated powerful ISP, supporting Raw Data CMOS sensor
    • Supports 5M/8M/12M CMOS sensor
    • Supports 8/10/12-bit YUV/Bayer sensor
  • Connectivity – 10/100/1000M Ethernet, dual band WiFi 802.11 a/g/n + Bluetooth 4.0 (AP6234), and Zigbee (NXP JNS168)
  • USB – 4x USB 2.0 host post
  • Debugging – UART debug connector, JTAG connector
  • Expansion header – 180-pin header with access to I2C, SPI, LCD, MIPI DSI, RGB/LVDS, CSI, MIPI CSI, ADC, CTP, RTP, SPDIF-OUT, SPDIF-IN, GPIO, etc…
  • Sensor – Acceleration sensor, IR receiver
  • Misc- Battery slot for RTC
  • Power – 12V/4A (48W)
  • Dimensions – N/A
Mixtile_LOFT-Q_SATA_USB_Dongles
SATA Connector and Wireless Dongles? are on the Back of Mixtile Board

You won’t find many details on Mixtile Hardare page, but there’s some recently updated documentation and software on Mixtile github account, with various repositories for documentation with a getting started guide, linux and u-boot source code, development tools, and BSPs for Android 4.4.2, Ubuntu Touch, and OpenWRT. What I failed to find however is a clear graphical description of the board and connectors.
