ODROID-C2 Amlogic S905 Development Board is in the Works

Hardkernel ODROID-C1 and later ODROID-C1+ boards, both based on Amlogic S805 SoC, have been a popular alternatives to Raspberry Pi 2 board this year. But now that Amlogic S905 quad core 64-bit ARM Cortex A53 processor has been available for a few months, people have been wondering whether the Korean company would launch an Amlogic S905 board, and it looks like ODROID-C2 might not be too far off based on firmware files on odroid.in website.

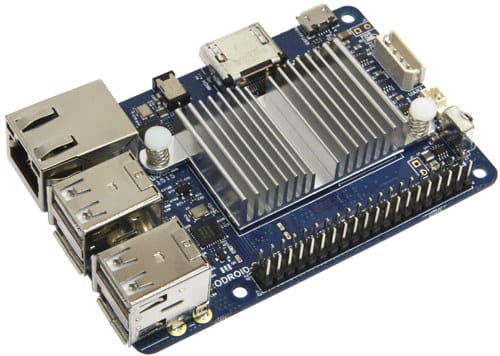

Picture of ODROID-C1+ (Not ODROID-C2 pic yet)
Picture of ODROID-C1+ (No ODROID-C2 pic yet)

The firmware includes a device tree file, which combined with other files give some clues about ODROID-C2 specifications:

  • SoC – Amlogic S905 quad core Cortex A53 processor @ up to 2.0 GHz with penta-core (3+2) Mali-450MP GPU
  • System Memory – 1GB RAM (in doc), 2GB RAM (in Device tree)
  • Storage – 1x micro SD card
  • Video Output – 1x HDMI out
  • USB – 1x USB hub, 1x USB OTG

I don’t have much more information about the platform.

Buildroot menuconfig with ODROID-C2 config file
Buildroot menuconfig with ODROID-C2 config file

You can also find some ODROID-C2 or “odroidc2” references it in the latest Amlogic buildroot, and for example to build a bootable image based on Linux 3.14.29 for ODROID-C2, you can run:


I guess we’ll have to wait a little longer to find out exactly whether ODROID-C2 is based on the same form factor as ODROID-C1+ board, or closer to ODROID-C0 concept. If you’ve been trying to run Linux on Amlogic S905 devices, using the latest kernel may help fixed some of the issues we’ve had in the past. I have not tried it yet.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

5 Replies to “ODROID-C2 Amlogic S905 Development Board is in the Works”

  1. Odroidc2 build wont work. If you check actual defconfig, you will see that kernel (and some other stuff maybe, don’t remember) are downloaded from Korean git server. When I tried to sync, I got permission denied (git+ssh). But indeed, uboot also does have odroidc2 configuration.

  2. @Stane1983
    It takes a while to download everything during the build… It failed first at u-boot for me, as I discovered I needed to install a “second toolchain”. But finally it worked, so maybe you have an older version of buildroot:

    @Steven Lin
    Hmmm. that’s right, but I have another document that says 1GB. Maybe they” have 1GB and 2GB options.

  3. @kucho
    Their community has grown A LOT since the C1 came out. I’ve notice there are a lot more community images as well as images from groups like Lakka, Arch, ect.

    I would be really disappointed to see a 64bit board paired with only 1Gb or RAM. I know Hardkernel confirmed with a date the C0, I wonder if this is still in R&D slated for a summer release?
