Google Glass 2 For Enterprise Shows Up on FCC Website

I’ve never been a fan of Google Glass for consumer applications, and the company has apparently more or less given up on this market, but instead they are now focusing on the enterprise market according to Google Glass 2 (codenamed AR4-GG1) photos and a user’s manual released on the FCC website.

Click to Enlarge
Click to Enlarge

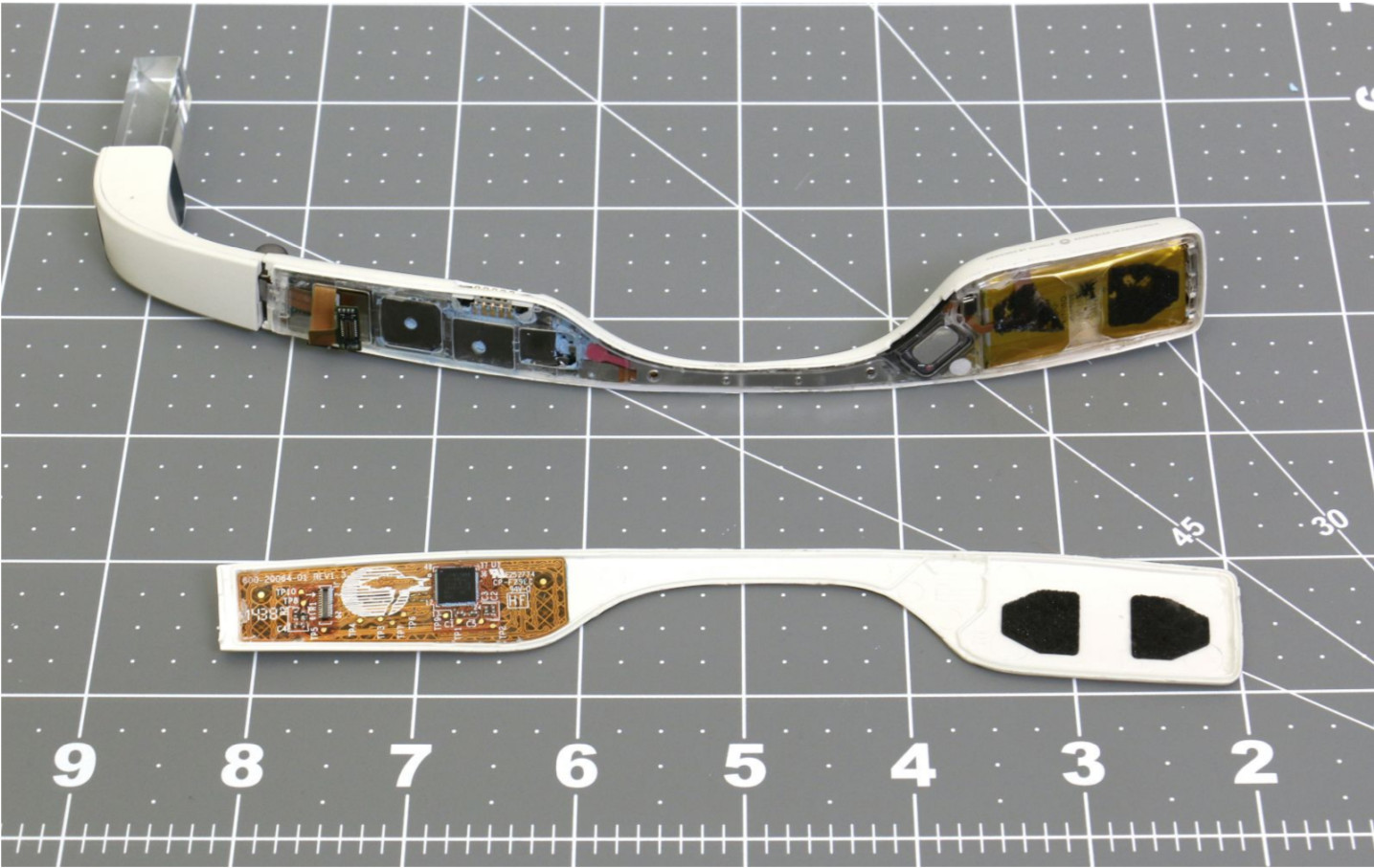

The user’s manual lists some of the key external components including a power button, a display with its button to take pictures or shot videos, a touchpad along the flat area on the side to control the display using taps and gestures.

Click to Enlarge
Click to Enlarge

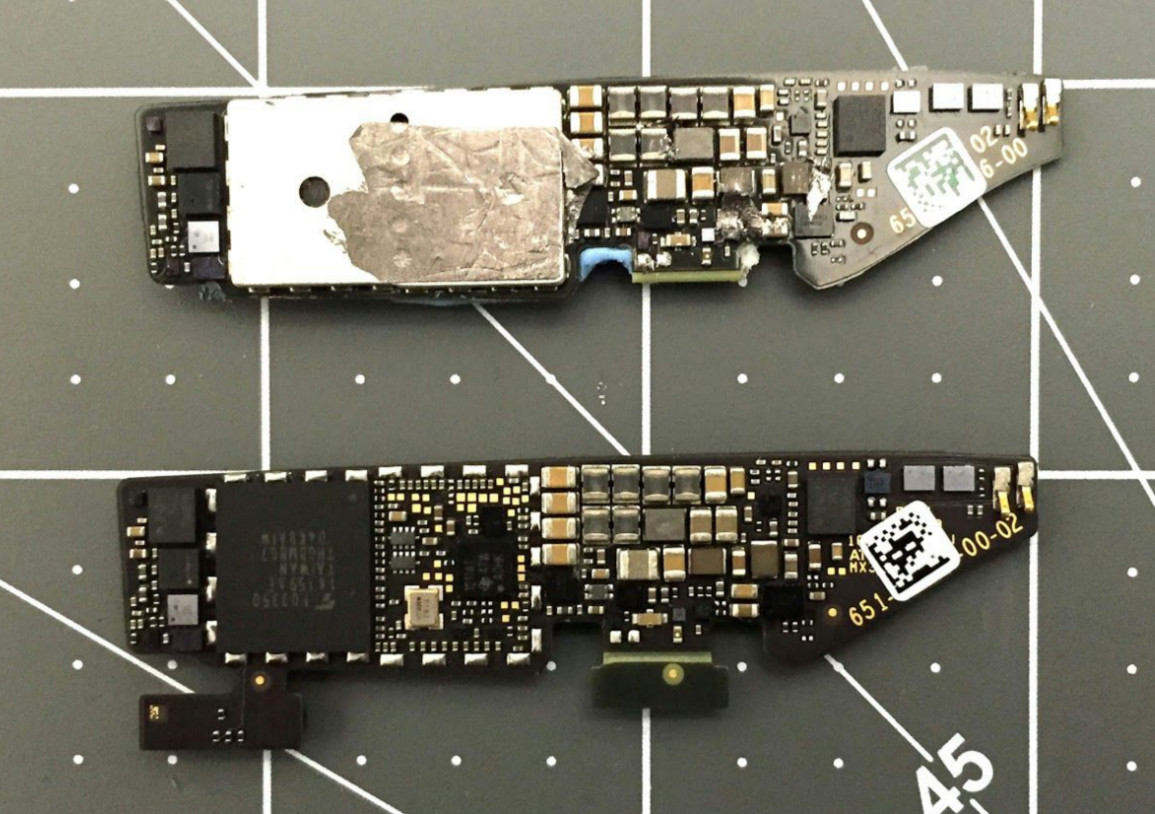

Although not really sharp, the internal pictures allow to have a look at the main electronic components featured in the device, and David Anders analyzed the pictures and found the following ICs:

  • Toshiba THGBMBG7D4LBAIW that should be a 16GB eMMC flash
  • Texas Instruments TUSB1211 USB 2.0 ULPI PHY transceiver

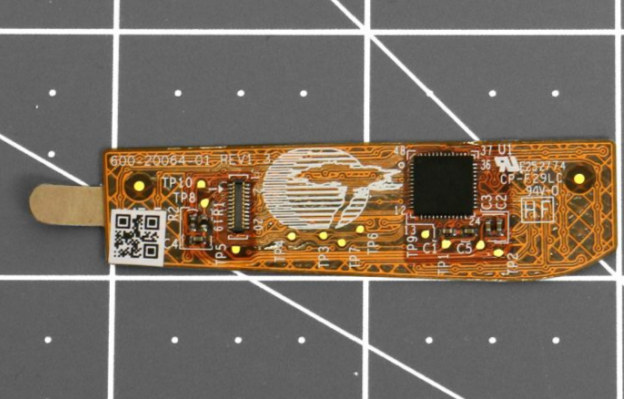

  • Touchpad area with Cypress logo and a 48-pin chip that could be part of TrueTouch CYTT21X/31X family


Mashable also reports that the new version of the glasses features a larger glass prism, a faster Intel Atom processor, and 5 GHz Wi-Fi.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

5 Replies to “Google Glass 2 For Enterprise Shows Up on FCC Website”

  1. just fyi i made another pass at the image of the TI part and it turns out it is the TUSB1211 which is a usb2.0 ulpi phy…
