MK808B Pro Android TV Stick Mini Review

MK808B PRO is the first Amlogic S905 TV stick readily available for sale, and GeekBuying sent me a sample for review. I’ve already checked out the hardware, and the lack of heatsink is a worry, so we’ll see how it performs in this mini review, where I’ll focus mainly on potential pitfalls, rather than do a throrough review as usual, since I’ve already tested so many Android TV boxes powered by Amlogic S905 processor

First Boot, Settings, and First Impressions

I’ve connected MINIX NEO A2 Lite air mouse RF dongle to the USB port, and Tronsmart Mars G01 wireless gamepad dongle to the mini USB port via the provided USB OTG adapter, and the provided HDMI cable to the AUX port of my AV receiver and nothing else, except the power adapter to the other mini USB port.

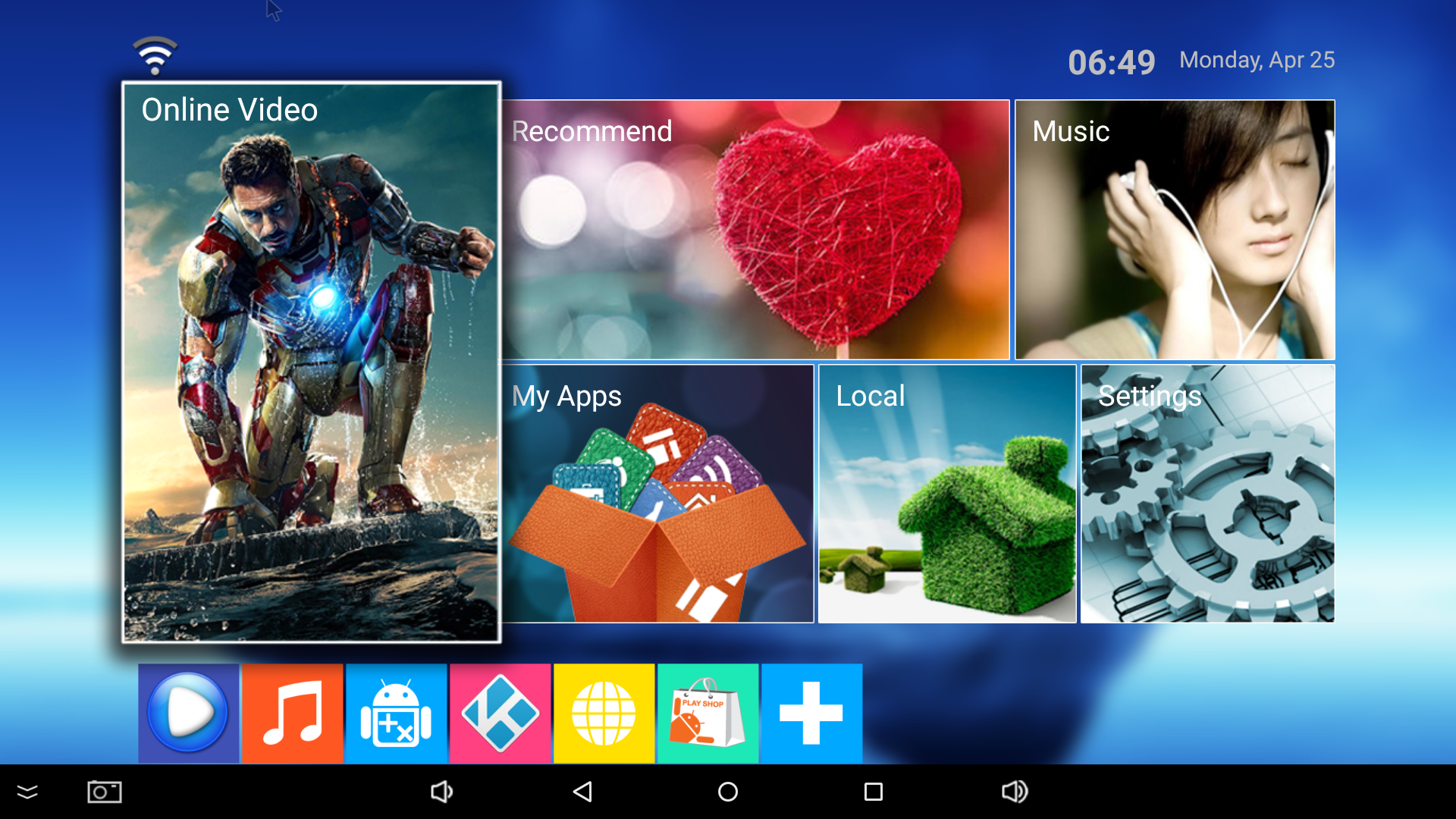

Boot time typically takes about one minute that it’s not a speed daemon in that regards. The user interface is familiar, since it’s the same as used in Beelink MINI MX, and a few other models.

Click for Original Size
Click for Original Size

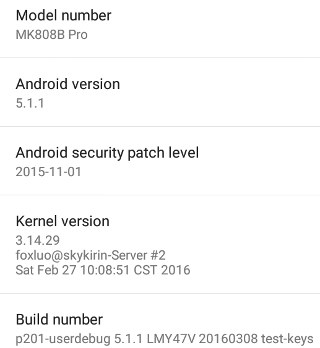

About_MK808B_ProThe settings are also the same, so I won’t go through them all. But I could set video output to 4K @ 60Hz, and connect to WiFi (2.4 GHz only) without any problems. There’s a single storage partition with 4.41GB in total available for apps and data. The About section reports MK808B Pro model is running Android 5.1.1 on top of Linux 3.14.29. The firmware is rooted.

I also tried the Online Update in the Update&Backup app to get the latest firmware, but sadly OTA firmware update is not implemented.

Since the stick does not come with the remote control, I use an air mouse, but in theory if you don’t have one, you should be able to use RemoteIME app after enabling “Remote” in the “Remote & Accessories” settings. This did not work for me the first time with the app unable to find MK808B Pro, but as I tried again a few hours later, it worked pretty well with keyboard, mouse, and remote control modes.

The lack of remote also raise a problem when you want to turn off the device, especially since there’s no power icon on the task bar. I could turn off the device by connecting a USB keyboard, and pressing the Power key. It works, and power consumption in that mode is only 0.3 Watt. However, the only way to turn the stick back on is to manually power cycle it, by disconnecting the power supply for a few seconds, and putting it back in. So it’s definitely not user-friendly.

I could install most apps needed for review the first time I used Google Play, except most games would not be compatible with my device. I tried again later, and i could install Candy Crush Saga, and Beach Buggy Racing. So Google Play is working OK. Amazon Underground refused to install though. After 5 or so minutes trying to install the apk, it will just say “App not installed”. I downloaded it twice, and tried to install it a few minutes with the same result.

MK808B Pro feels a little sluggish compared to other device, and you may have to be especially patient when installing apps. Sometimes apps exit by themselves, while other times, I would only get a black screen with the status bar when trying to get back to the home screen. I wonder if it would be because memory is tight. So my first impressions were not that good about the device.

Kodi in MK808B Pro

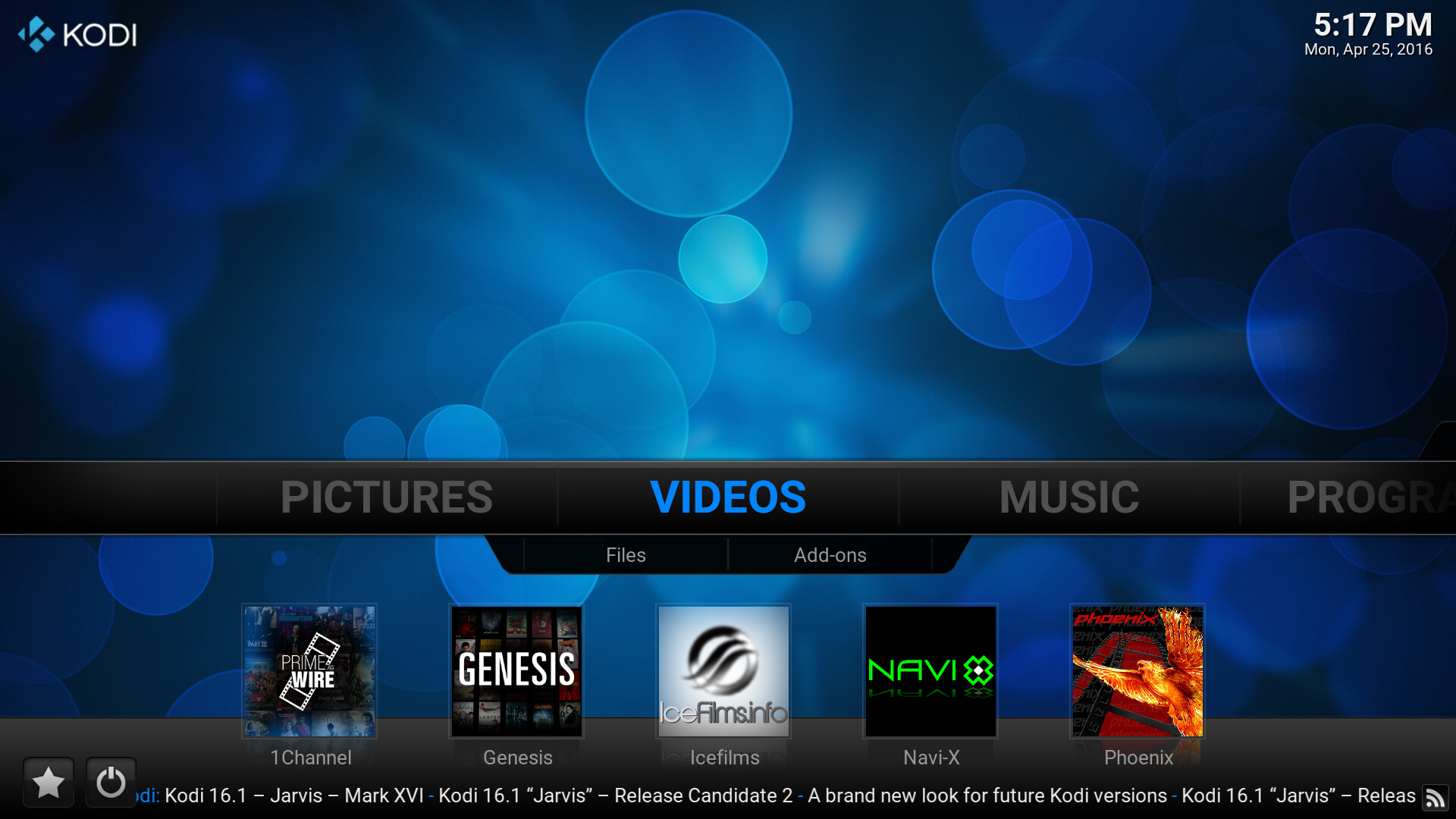

Then I switched to the pre-installed Kodi 15.2 which comes with some add-ons.

Click for Original Size
Click for Original Size

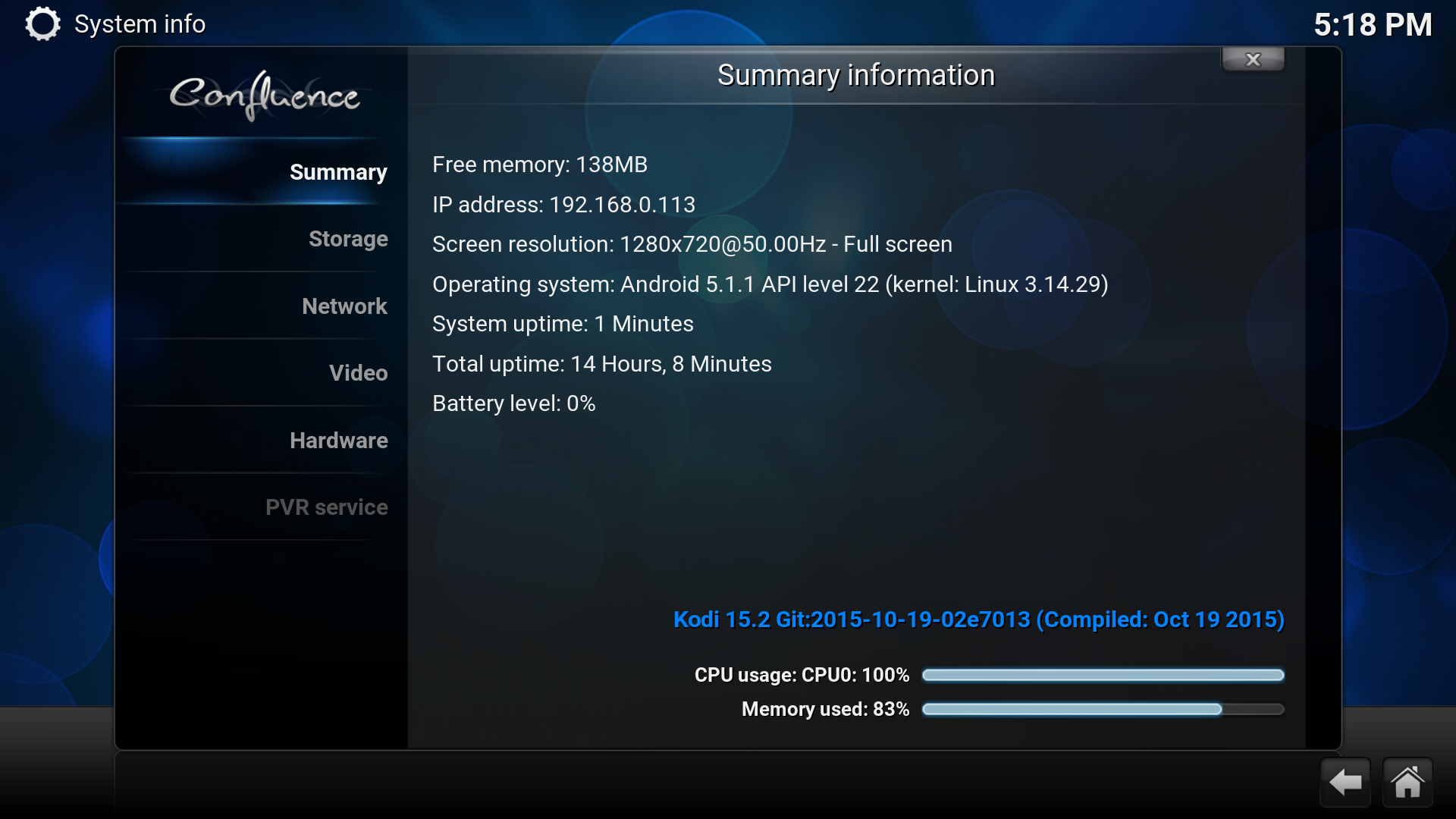

For some weird reasons, Kodi 15.2 reports a 1280×720 screen resolution, but if you enlarge the screenshot below, it is instead 1920×1080.

Click to Enlarge
Click to Enlarge

Nevertheless, just a small issue. A much bigger issue was the disaster the box is to play 4K videos:

  • big_buck_bunny_4k_H264_30fps.mp4 (4K H.264, ~ 8 Mbps) – Choppy as hell, frequent audio cuts, artifacts may appear after a while.
  • HD.Club-4K-Chimei-inn-60mbps.mp4 – Not smooth at all, unwatchable

I was about to give up at this stage, but later I found that Kodi had an update in Google Play, so they may have the original version of Kodi without modifications, except installing add-ons. I did the update to Kodi 16.1, and the videos played a bit better, but still not watchable:

  • big_buck_bunny_4k_H264_30fps.mp4 (4K H.264, ~ 8 Mbps) – Video somewhat smooth at the beginning, but then becomes more choppy with frequent audio cuts. Kodi decided by itself it could not take it anymore, and exited by itself.
  • HD.Club-4K-Chimei-inn-60mbps.mp4 (H.264) – Not smooth, then buffering kicks in (60 Mbps is too high for WiFi)
  • Fifa_WorldCup2014_Uruguay-Colombia_4K-x265.mp4 (H.265 @ 60 fps – ~6.5 Mbps) – Video not smooth, and some audio cuts, but no buffering issues here. After a few minutes, Kodi exited.

If I wanted to access Kodi UI while the video is playing, key inputs from my air mouse were either irresponsive, or with 10 seconds or so delay.

I’ve decided to to waste any more with Kodi, and video playback, on that TV stick.

Wi-Fi & Storage Performance

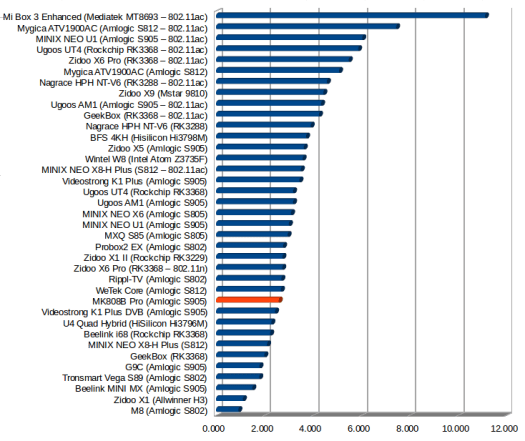

WiFi throughput averaged about 2.6 MB/s after several transfers between the internal flash and a SAMBA server. Not a catastrophe, but still below average.

Throughput in MB/s
Throughput in MB/s

I also tested the internal storage performance with A1 SD bench app, and the results clearly show why the stick is so cheap.

Read and Write Speeds in MB/s
Read and Write Speeds in MB/s

Gaming and Performance Stability

I’ve only played Beach Buggy Racing game on MK808K Pro. At the beginning it was not quite as smooth as on some other Amlogic S905 based TV boxes, but still playable. However, the games became very slow near the end of my first races (one lap – less than 1 minute play), and stayed that way after that. I measured the temperature on the top and bottom of the device, and both were around 60 C. I’ve also notice that at the beginning my power meter reported 4.4 Watts, but when it became slow, it dropped to 3.0 Watts, most probably because the system was throttling.

So the lack of heatsink, possibly combined with high ambient temperature (30 C), is really a problem with the stick, and you can’t expect good performance over time.

MK808B Pro Benchmark and System Info

I’ve finally ran CPU-Z and Antutu 6.1.4 to complete the review.

Click to Enlarge

The package mentions the CPU was clocked @ 1.5 GHz, but CPU-Z and Antutu info both reports a Quad coe Cortex A53 processor clocked between 100 MHz and 2.02 GHz. But whenever it reaches 2.02 GHz, it won’t stay there for long, as we’ve seen before. The total RAM is only 775 MB, with 4.41 GB internal storage. MK808N Pro is also based on p201 board.

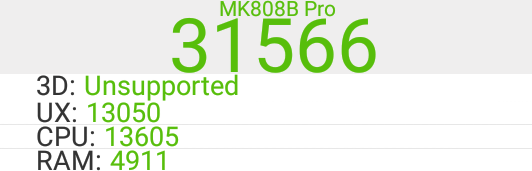

Antutu 6.1.4 score is 31,5166, but that’s without 3D graphics. I tried to run the benchmark again, but it would always get stuck during “Image Processing Fisheye” test right after the 3D benchmark successfully completed. It was a complete system freeze, I noticed the power draw was 8.4 watts, and my IR thermometer reported 88 C. I had to turn if off, and let it cool for 5 minutes to be able to use the stick again.


I wonder why anybody would buy MK808B Pro, even if the price is so low, as I’ve had so many problems, it performs slowly, Kodi 15.2 & Kodi 16.1 don’t handle 4K video very well at all, and WiFi performance is under par, at least with my setup. Maybe the stick works better at a lower ambient temperature, but I would not bet on it.

GeekBuying kindly provided the sample for review, and if for some reasons you feel the urge to buy it, you can do so for $34.99 including shipping.
