Hacking ARM TrustZone / Secure Boot on Amlogic S905 SoC

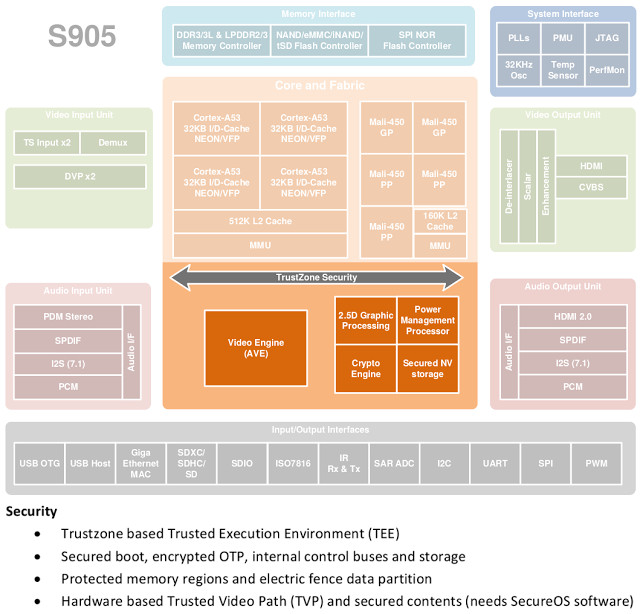

Amlogic S905 processor used in many Android TV boxes and ODROID-C2 development board implements ARM TrustZone security extensions to run a Trusted Execution Environment (TEE) used for DRM & other security features.

amlogic-s905-security

He explains the steps they went through and how they managed to exploit vulnerability to bypass secure boot in a detailed technical blog post.

They first started by looking for info in Amlogic S905 datasheet, but most info about TrustZone had been removed from the public version. So not that much help here except a potential address for BOM Root (ROMBOOT_START   0xD9040000). The next step was to connect the UART pins in order to access the serial console, but he could not read the BootROM from there most probably because you can’t access secure code from an non-secure memory.

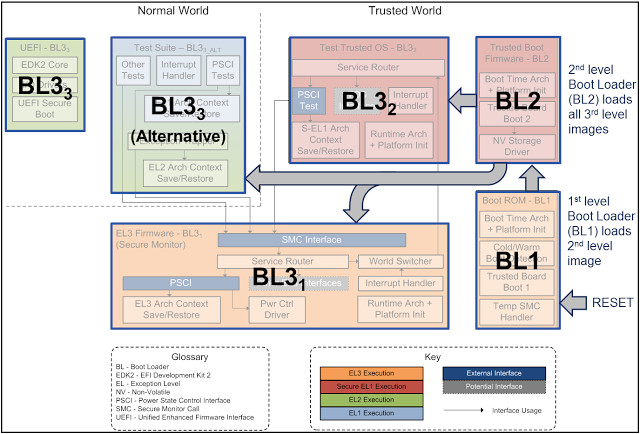

However, a closer look at the boot log lead them to find the bootloaders were based on the ARM Trusted Firmware (ATF) reference implementation, which include BL1x (BootROM in SoC), BL2, and BL3x bootloaders as shown in the diagram below.

arm-trusted-firmware-architecture

At this point everything becomes much more technical, as he explains various attempts using U-Boot bootloader, SMC (Secure Monitor Call) interface, and bypassing the Secure Boot chain. The first attempt was a non-stater, the second could have been exploitable but might have required some expert skills and time, but the third one was successful after an analysis of  the mechanism used by BL2 to parse and authenticate the BL31 image, and finding out the cryptographic code came from OSS PolarSSL/mbed TLS project.

Further reverse-engineering of the “authentication” header revealed that BL2 is only using SHA-256 hash to verify the integrity of the firmware, and that there’s no actually authentication. To confirm their findings, they customized a BL31 firmware, updated the SHA-256 hash (using aml-bootloader-tool script), and it would boot, and eventually they managed to dump the BootROM from Amlogic S905 SoC.

That’s the conclusion:

The S905 SoC provides hardware features to support Secure Boot, however OEMs can still choose to enable it or not. But even when Secure Boot is enforced, a flaw in the current version of Amlogic’s BL2 allows to bypass it. So Trusted Execution Environment cannot be trusted. The good news is BL2 can be patched, unlike BootROM.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

4
Leave a Reply

avatar
4 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
4 Comment authors
cortex-a72tkaiserGaetano Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Gaetano
Guest
Gaetano

Let me understand: if I buy a chinese S905(X) box, can I avoid the SecureBoot and can I install an Ubuntu distro on if (something similar to Odroid C2)?

tkaiser
Guest
tkaiser
Member

From my understanding, the TEE not is a limitation to install Linux, is used for DRM
See https://en.wikipedia.org/wiki/Trusted_execution_environment#Uses
Right now you can install linux on your S905(x) device without bypass the TEE
See:
http://www.cnx-software.com/2015/12/06/how-to-run-headless-linux-on-amlogic-s905-devices-such-as-mini-mx-or-k1-plus/
Also http://www.armbian.com/, http://dietpi.com/ and http://libreelec.tv/ has support for S905

cortex-a72
Guest
cortex-a72

Unfortunately, this quite useful capability has been turned into a dumb locking “feature”. Instead of establishing a well defined mechanism for third parties to get involved into implementing Secure World software, vendors quickly have locked their devices wasting all of the potential of it. Noone learn it, noone can acsess it, noone can fulfill it with something useful. And the vendor by itself doesn’t make use of it. Just a dummy lock in and forget it. And, as it is seen, even this they have done in a very lame way. Shout out to Amlogic for such a brilliant facepalm!
