Following up yesterday’s post about Voyo VMac Mini mini PC benchmarks with Intel Pentium N4200 processor, I’ve switched to its cheaper little brother powered by Intel Celeron N3450 processor and performed the same benchmarks to compare the performance difference with the Pentium version, as well as older Braswell and Cherry Trail systems.
I’ve run HWiNFO64 before running the benchmarks to get more details about computer, and especially the processor. Celeron N3450 is a quad core processor clocked at 400, 800, and 1,100 MHz, and up to 2.2 GHz in burst mode. It’s quite similar to Pentium N4200, except the later has a higher burst frequency (2.5 GHz), and a better GPU with 18 EU, instead of just 12 EU on the Celeron. My exact version of the processor is stepping B0/B1 with sSPEC SR2YA/SR2Z6. I forgot to comment about supported features compared to Cherry Trail and Braswell processors yesterday, and Apollo Lake processors do support some extra CPU features including RDSEED for random generators, SHA for SHA-1 & SHA-256 hashs, SMAP (Supervisor Mode Access Prevention), and MPX (Memory Protection Extensions).
Let’s move on with the benchmarks staring with PCMark 8 Home Accelerated 3.0.
Voyo VMac mini N3450 got 1,566 points, which compares to 1,846 points with the Pentium N4200, and 1,543 points for MINIX NEO Z83-4 powered by an Intel Atom x5-Z8300 processor. I have expecting a higher score here, so I ran the test again and got 1,595 points only marginally higher.

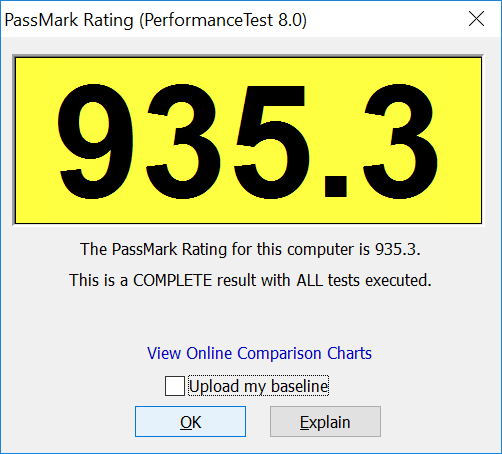

The PassMark PerformanceTest 8.0 score is more in line with the expectations as VMac Mini (N3450) achieved 935.3 points, against 1052.1 points for the Pentium N4200 model, and 845.9 points for Beelink BT7 (Atom X7-Z8700).
I’ve also run PerformanceTest 9.0 for future reference, and comparison with Voyo VMac Mini with N4200 SoC.
Results: 998.4 points which compared to 1087.0 for N4200. The performance delta roughly matches theory, especially once we look into the details with the CPU mark also identical, but 2D & 3D graphics quite faster.
Talking about graphics performance, I also ran 3D graphics specific benchmarks with 3D Mark’s Ice Storm 1.2 (18,892 points), Cloud Gate 1.1 (2,130 points), Sky Driver 1.0 (941 points), and Fire Strike 1.1 (262 points).
Let’s compare the results against other mini PCs & TV sticks including Cherry Trail systems such as MINIX NEO Z83-4 & Voyo V3, Braswell computers like MINIX NGC-1 and Vorke V1, as well as an Intel Computer Stick powered by Core M processor.
Note: Ice Storm scores divided by 10, Fire Strike scores multiplies by 4 for scale.
Based on those benchmarks, the performance of Voyo VMac Mini with Intel Celeron N3450 (Red on chart) is nearly identical to the one of Vorke V1 based on Intel Celeron J3160 (Dark green on chart) both for a general computing benchmark like PCMark 8, and 3D graphics. Fire Strike however failed to run on Vorke V1. Both N3450 & J3160 SoC come with a 12EU HD Graphics gen9 GPU which may explain the similar performance for graphics. Overall the performance differences between Cherry Trail / Braswell and Apollo Lake processors are more incremental, than a big jump in performance, and for many tasks you’re unlikely to see much differences between systems, except for the more expensive Core M computers and sticks. Anyway, thats’ what I intend to find out in the review.
I’d like to thank GeekBuying for sending the sample for review, and if you are interested you can buy Voyo VMac Mini (N3450) for $199.99.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
5 Replies to “Voyo VMac Mini mini PC Benchmarks with Intel Celeron N3450 Apollo Lake Processor”
HD audio pass-through with windows work?
How’s Linux running on these voyo boxes?
10bit 4k h265 working?
It should work.
It require kernel version 4.10+.
Modified LibreELEC is working:
