Back in 2015, Xilinx unveiled Zynq Ultrascale+ MPSoC combining ARM Cortex A53 & Cortex R5 cores, a Mali-400MP2 GPU, and UltraScale FPGA, and the company recently launched ZCU102 Evaluation Kit based on the SoC, which sells for just under $3,000. But if you are based in the European Union, you’ll be glad to learn about 4 millions Euros of your taxes have been spent to design a board based on the same MPSoC family as part of the AXIOM project, which was developed in collaboration with European universities and companies with the “aim of researching new software/hardware architectures for Cyber-Physical Systems (CPS) to meet the expectations” in terms of computational power, energy efficiency, scalability through modularity, easy programmability, and leverage of the best existing standards at minimal costs.

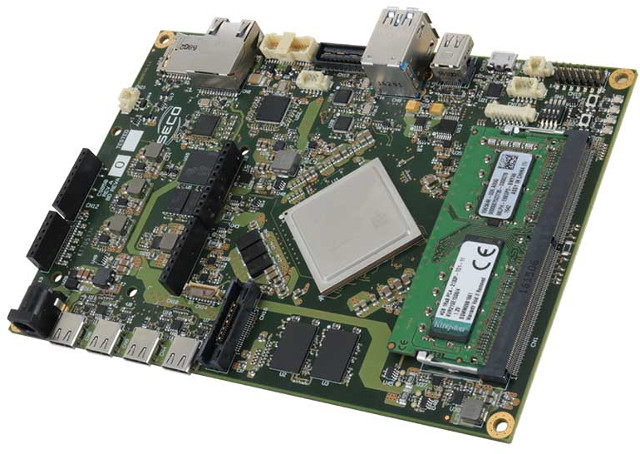

AXIOM (Agile, eXtensible, fast I/O Module) board’s key specifications:

  • SoC – Xilinx Zynq Ultrascale+ ZU9EG MPSoC with four ARM Cortex A53 cores @ 1.2GHz, two Cortex R5 “real-time” cores @ 500MHz, a Mali-400MP GPU @ 600 MHz, 600K System Logic Cells;
  • System Memory – 32 GB of swappable SO-DIMM RAM  (up to 32GB) for the Processing System, plus a soldered 1 GB Programmable Logic.
  • Storage – 8 GB eMMC flash (PCN layout supports up to 32GB), and a micro SD card reader.
  • Display – miniDP connector, single channel 24-bit LVDS interface, touch panel connector
  • Connectivity – Gigabit Ethernet port (RJ45)
  • USB – 4x USB Type C ports, 2x USB Type A ports
  • Expansion
    • Arduino UNO headers
    • 12x GTH transceivers @ 12.5 Gbps  (8 on USB Type C connectors + 4 on HS connector)

There’s also mention of an Axiom Link interface that would allow to interconnect multiple AXIOM boards in order to arrange small clusters.

Since it’s a public project I would have expected it to be open source. While there are some deliverables available for download, they appear to be outdated with “the technical specification of AXIOM board” PDF mentioning only AXIOM-15 and AXIOM-35 boards based on the previous Xilinx Zynq-7000 series SoCs. We can also find links to a Wiki, as well as git and svn repository, but all those are in a private area that requires a login, and as far as I could tell, it’s not possible to register. So maybe the EU commission wants to protect its investment, or we just need to be a little more patient. [Update: This Download page  seems to have more public info available]

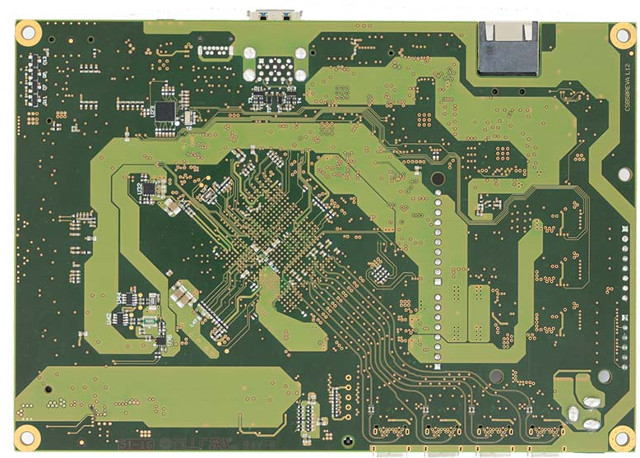

Click to Enlarge

The AXIOM Board is said to combine features required for High-Performance Computing, Embedded Computing and Cyber-Physical Systems, with typical applications including real-time data analysis of a huge amount of data, machine learning, neural networks, server farms, bitcoin miners, and so on.

It’s unclear when/if the board will be available for sale, and at what price.

Via Board DB and Single Board Computers G+ community.
