NXP QorIQ LayerScape LA1575 Programmable Wireless SoC to Support 5G, 802.11ax & 802.11ad WiFi, and Wireline

NXP has recently announced QorIQ LayerScape LA1575 programmable wireless platform with two ARMv8 cores, and simultaneous multi-standard support for 5G, Wi-Fi (802.11 ac and 802.11ax) and Wireline systems for enterprise and high-end home gateways.

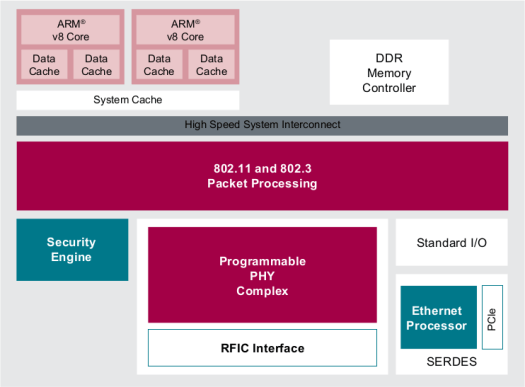

QorIQ LayerScape LA1575 Block Diagram

QorIQ LayerScape LA1575 key features and specifications:

  • Multicore ARMv8 Processors for user applications
  • DDR4 with ECC
  • Programmable accelerator engines for signal processing.
  • Programmable low latency MAC layer processing engines
  • Programmable high performance packet processing engines to over 10 Gbps
  • Configurable cryptographic offload engines
  • Simultaneous multi-standard support for 5G, Wi-Fi (802.11 ac and 802.11ax) and Wireline systems
  • Multiple Ethernet interfaces including 10Gbps
  • PCIe gen 3.0
  • Integrated Trust architecture
  • Single source clocking

The main benefit of this SoC is that is is programmable, so even if some standards evolve after the release, it can be re-programmed to reflects the changes in specifications.

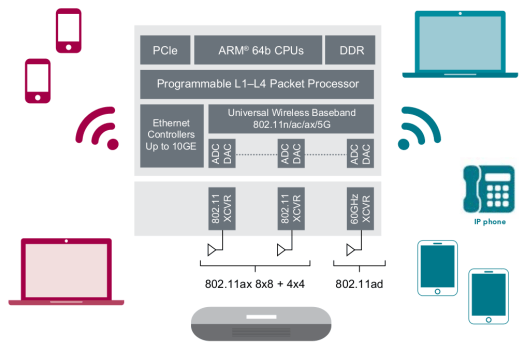

LA1575 Gateway Example – Click to Enlarge

Just to refresh everybody’s memory:

  • 5G is the successor of 4G/LTE scheduled to start (Wave 1) around 2018, with higher speeds(Wave 2) solutions coming in 2019-2020 with up to 10 Gbps data transfer
  • 802.11ad is a new WiFi with very high bitrate (Up to 7Gbps) working within a room @ 2.4/5/60 GHz, and capable of reliably transferring uncompress video data. It’s limited to room use, and the range is about 5 meters.
  • 802.11ax, also known as High-Efficiency Wireless (HEW), should improve the average throughput per user by a factor of at least 4 times in dense user environments, with a total bandwidth of 10 Gbps over 2.4 and 5.0 GHz frequencies. The standard is expected to be published in 2019.
  • Wireline may have two meanings: simply wired communication (e.g. Ethernet), or “high-speed data transmitted between chips using electrical or optical communication over wires to reach the lowest power requirements.” according to the University of California. It’s possible NXP refers to both meanings.

LayerScape LA1575 samples will be available in April 2017, and NXP will do some presentations (under NDA) next week, at NXP Mobile World Congress 2017 booth #7E30, Fira Grand via, Barcelona, Spain. You’ll find some (limited) extra information on QorIQ LayerScape LA1575 product page.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard

3 Replies to “NXP QorIQ LayerScape LA1575 Programmable Wireless SoC to Support 5G, 802.11ax & 802.11ad WiFi, and Wireline”

  1. Aha, an on chip SDR system. But there should be a question mark on the 5G support. Which level and how many features would this platform support, since 5G spec is still not fully decided?

  2. A few 5G test being done in UK this year, BT and Huawei 5G network slicing. Samsung and Arqiva, 5G network, fixed wireless access.
