$6.90 Wemos LoLin32 ESP32 Development Board Comes with 4MB Flash, Lithium Battery Support

Orange Pi Development Boards

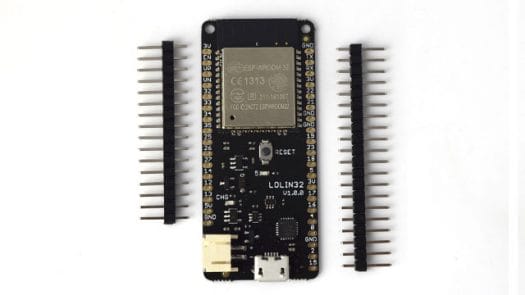

Wemos – the company behind the cool Wemos D1 mini ESP8266 board – has now launched its first Espressif ESP32 development board with LoLin32 equipped with ESP-WROOM-32 module with 4MB flash, a micro USB port, and a battery header.

Click to Enlarge

Wemos Lolin32 specifications:

  • Wireless Module – ESP-WROOM-32 based on Espressif ESP-32 dual core processor @ 240 MHz with 4MB flash
  • Connectivity – 802.11 b/g/n WiFi + Bluetooth LE
  • I/Os
    • 26x digital I/Os
    • 12x analog inputs
    • UART, I2C, SPI, VP/VN, DAC
    • 3.3V I/O voltage
    • Breadboard compatible
  • USB – 1x micro USB port for power and programming/debugging
  • Power – 5V via micro USB + battery header for Lithium battery (charging current: 500mA max)
  • Dimensions – 5.8 x 2.54 cm
  • Weight – 5.8 grams

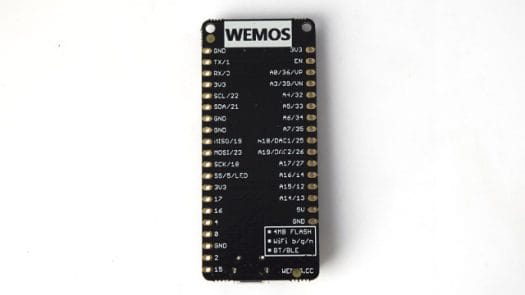

Click to Enlarge

The board is not compatible with Wemos D1 mini (34.2 x 25.6 mm) and shield, but offers a more powerful solution with Bluetooth LE, battery support, and more I/Os. The Wiki is still work-in-progres, and there’s no that much information on the page yet.

Wemos LoLin32 can be purchased for $6.90 + shipping ($8.66 in my case) on Aliexpress.

Via ESP32net twitter

  1. GunterO
    April 21st, 2017 at 17:41 | #1
  2. April 21st, 2017 at 20:20 | #2

    Not sure. I would not worry too much about those bugs, unless your application is specifically affected by one or more of them. Processors often have a list of errata.

  3. Deets
    April 22nd, 2017 at 06:19 | #3

    @GunterO almost definitely version 0. Version 1 is barely starting production. At some point it will probably transparently shift to version 1 and be impossible to tell, so hopefully they aren’t making tons that will stay in inventory all year.

  4. April 27th, 2017 at 20:01 | #4

    Already out of stock on Aliexpress.

  5. April 27th, 2017 at 20:08 | #5

    There is a Wemos Lolin32 board with OLED display sold for $8.80 + shipping @ https://www.aliexpress.com/item/Lolin-ESP32-OLED-wemos-for-Arduino-ESP32-OLED-WiFi-Modules-Bluetooth-Dual-ESP-32-ESP-32S/32807531243.html
    Note that this is not Wemos store.

  6. May 4th, 2017 at 23:34 | #6

    Got mine today, trying to flash Blink something with the Arduino IDE… the board does not seem to have an onboard led…

  7. BlueCoal
    May 7th, 2017 at 10:03 | #7


    On board Led is on pin 5.

  8. September 14th, 2017 at 11:08 | #8

    Wemos LoLin32 Lite goes for $4.90 + shipping -> https://www.aliexpress.com/store/product/WEMOS-LOLIN32-Lite-V1-0-0-wifi-bluetooth-board-based-ESP-32-esp32-Rev1-MicroPython-4MB/1331105_32831394824.html

    Removed ESP-WROOM-32, and designed their own circuit around ESP32-DOWNDQ6 Rev 1.0
