$59 HDFury Universal PSU Doctor Supports Power Monitoring via iOS or Android

We’ve recently covered Cambrionix PowerPad 15S, a high-end 16-port USB hub that can deliver 5V/2.1A on each port, integrates power monitoring function, and an API to control and monitor each port individually. That’s a very cool device, but it’s also expensive at around $600, and even the cheaper PowerPad 15C without data pins, come at $200. If you don’t need the complete set of features offered by Cambrionix devices, but you’ll like to get a reliable multi-port USB charger with power monitoring function, HDFury Universal PSU Doctor could be an interesting option.

HDFury Universal PSU Doctor specifications:

  • MCU – Renesas RL78 16-bit MCU
  • USB – 3x USB ports with 2x 5V ports up to 5V/2.14A, 1x USB QC 2.0 port supporting 5V/2.14A, 9V/1.6A or 12V/1.2A output
  • ADC – Up to 11 channels, 10-bit resolution for power monitoring
  • Sensor – n-chip temperature sensor
  • Power Supply
    • Built-in 100 ~ 240V AC with US, EU, UK plug types (Sorry Australian readers).
    • Ripple and Noise: 80mV
    • Efficiency: 80%
  • Power Consumption @ 5V?
    • Stop – RAM retained: 0.23 μA; LVD enabled: 0.31 μA
    • Snooze – 0.7 mA (UART), 1.20 mA (ADC)
    • Operating: 63 μA /MHz
  • Dimensions – 8.9 x 5.3 x 4.2 cm.
  • Weight – 142g
  • Certifications – Rohs, CE and FCC (no UL / ETV / TUV?)

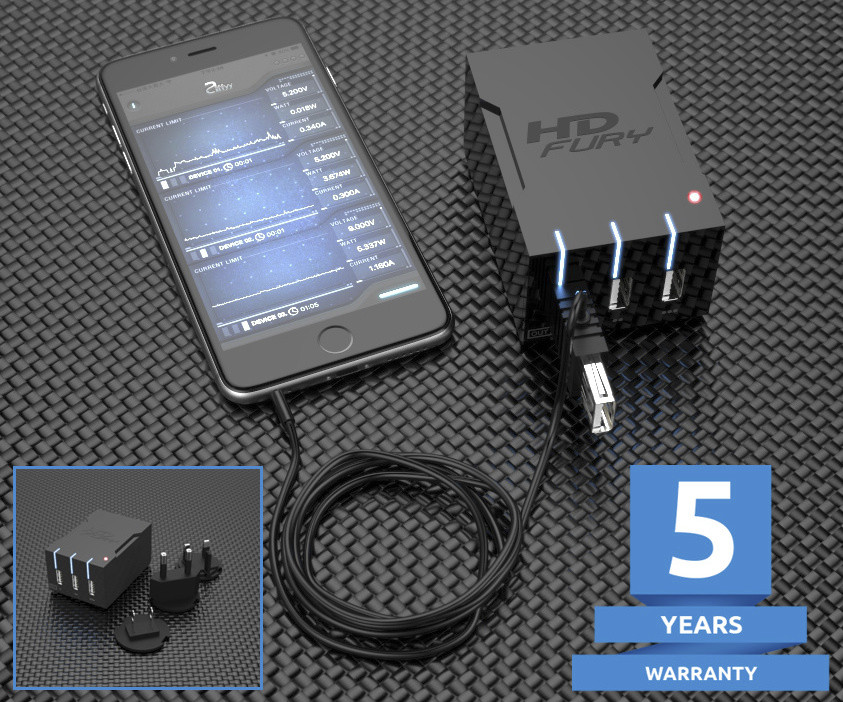

Click to Enlarge

The first two USB ports (1 & 2) can handle 5V, and the first one can connect to a smartphone audio jack to report the voltage, current, and power for all three USB ports. The third port also supports Quick Charge 2.0.

Power monitoring is done through DrPSU app available for Android and iOS, but note that it’s expected to work only on branded smartphones such as Samsung, LG, Sony, Xiaomi, Apple… and obviously this feature won’t work on the most recent models without an headphone jack since it is required. The app cannot control the USB port individually, for example to turn them on and off, it only displays the data. The video below demonstrates well how it all works.

HDFury Universal PSU Doctor is sold for $59 with free shipping on HDfury website. There’s a 5-year warranty, but you’d have to return the charger to China, and I could not find the warranty’s terms and conditions.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
Mum
Mum
4 years ago

Countdown till someone has modded an ESP8266 to receive and provide the measurements via WiFi!

tkaiser
tkaiser
4 years ago

@Mum
Negative countdowns? Just do a web search for ‘ina219 esp8266’ and you’re done 😉

tkaiser
tkaiser
4 years ago


One INA219 would be enough for me but I want the data in a real monitoring system (database included) and not on a smartphone using the ‘DrPSU HDFury’ app.

Hehe, just realized that I already bought one Adafruit INA219 last year (though no idea where I put it). According to their product description 4 different I2C addresses can be ‘programmed’ with a solder iron. Same applies to the cheap stuff on Aliexpress (just had a look, you get a bundle of 5 for less than $11)
