HiMedia Q30 TV Box is Powered by HiSilicon Hi3798M V200 Processor

HiSilicon Hi3798M V200 processor is a cost-down version of Hi3798C V200 processor with a cheaper Mali-450MP GPU, a single Gigabit Ethernet MAC, a single USB 3.0 port shared with SATA and PCIe interface. One of the first devices with the processor will be Himedia Q30 TV box based on Himedia Q3 design.

HiMedia Q30 specifications:

  • SoC – HiSilicon Hi3798M V200 quad-core ARM Cortex A53 processor with an ARM Mali-450MP GPU supporting OpenGL ES2.0/1.1, OpenVG1.1, EGL, and
  • System Memory – 2 GB DDR3
  • Storage – 8 GB eMMC flash, SD card slot
  • Video Output – 1x HDMI 2.0a up to 4K @ 60 Hz, 1x composite video (RCA); Imprex 2.0 PQ engine with support for HDR/HLG/SLF/HDR to SDR, BT.709, and BT.2020

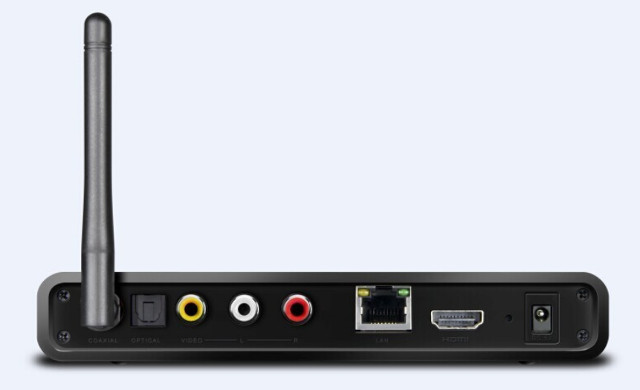

  • Audio Output – HDMI, stereo audio (RCA), optical S/PDIF port
  • Video Engine –  HiVXE 2.0 with support for HEVC 10-bit 4Kx2K @ 60 fps, H.264 4K2K @ 30 fps
  • Connectivity – 10/100M Ethernet, 802.11 b/g/n WiFi (2.4 GHz) with one external antenna
  • USB – 1x USB 3.0 host port, 2x USB 2.0 host ports
  • Misc – Power button, power LED, IR receiver
  • Power Supply – 12V/2A (TBC)
  • Dimensions – 170 x 115.5 x 24.5mm

The TV box runs Android 7.0 operating system with a 1920×1080 user interface. According to a YouTube video, the box should launch later this month, and resellers should already be able to inquire about the device through Alibaba.

Via AndroidTVBox.eu

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

4 Replies to “HiMedia Q30 TV Box is Powered by HiSilicon Hi3798M V200 Processor”

    1. Multi room audio is also a reason for rca. Some home theatre enthusiasts who have amplifiers setup for multiple rooms will use an analog audio output because most amplifiers on the market today only support multiroom from an analog source.
