Banana Pi BPI-R2’s U-boot & Linux 4.4 Source Code & MediaTek MT7623N Datasheet Released

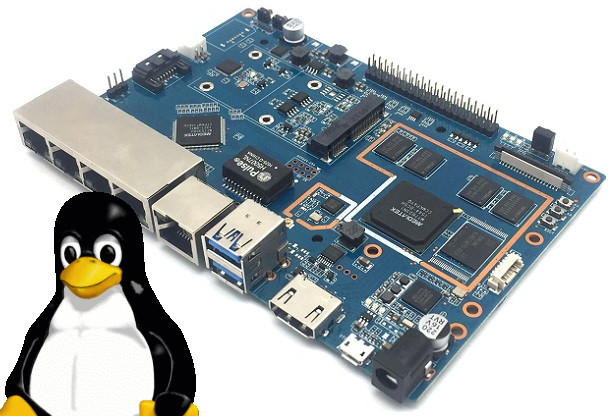

Banana Pi BPI-R2 is a multimedia router board powered by MediaTek MT7623N quad core processor with 2GB RAM, 5 Gigabit Ethernet ports, up to two SATA ports, two USB 3.0 ports, HDMI output, and I/O headers. The board is not for sale yet, but the company has recently released the source code with U-boot and Linux 4.4.70, as well as a datasheet for MediaTek MT7623N processor.

The source code can be found on Github, so let’s see if we can build it:


After a couple of minutes, the build would end with:


For the very last step, it asks you to login as root / sudoer, which it should not do… But we end up with the images, so at least it builds:


MediaTek has also been active by committing patchsets for MT7623 to the Linux Kernel Mailing List, so mainline Linux is an eventual possibility for BPI-R2 board. We just don’t have a clear view of what works and what doesn’t with mainline.

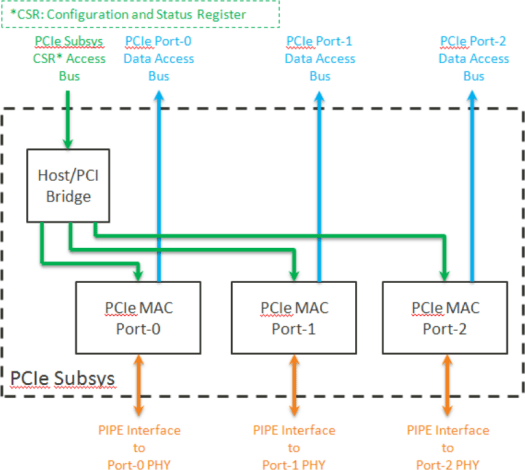

Mediatek MT7623N PCIe Subsystem Block Diagram

The datasheet is a 1,235-page document, but the name “MT7623N Datasheet for Development Board” implies that it may actually be a subset of another larger and more complete datasheet. Nevertheless, it looks to have enough information to control peripherals like GPIOs, I2C, PWM, UART, timers, GMAC, USB, etc… You’ll also find BPI-R2 schematics (PDF only) in the board’s Wiki.
