Sonoff B1 is an $18 Hackable WiFi RGB LED E27 Light Bulb based on ESP8285 WiSoC

Orange Pi Development Boards

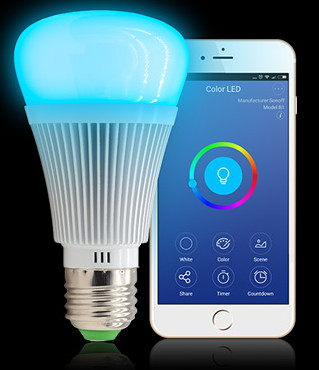

Earlier this year, I wrote about an ESP8266 based RGB LED “AI Light” lightbulb that was hacked to run ESPurna open source firmware. That’s all good, except some people tried to get one, and ended with a different hardware. So if you’d like something that’s more of a “sure thing”, ITEAD Studio has designed Sonoff B1 dimmable RGB LED E27 light bulb based on ESP8285 processor, and with a “4 pads” to allow for custom firmware flashing.

Sonoff B1 hardware specifications:

  • Typical Lumen Output – 600lm
  • Beam Angle – 120 degrees typ.
  • Color Temperature –  2800K-6500K & RGB full color
  • Connectivity – WiFi 802.11 b/g/n @ 2.4GHz
  • Power Supply – 90-260V AC 50/60Hz via E27 base
  • Power Consumption – Light off: 0.5W Max; rated power: 6W
  • Temperature Range – Operating: 0ºC~ 40ºC; storage: -20ºC~ 80ºC
  • Operating Humidity – 5%-90% RH

Sonoff B1 with stock firmware can be controlled using the usual eWelink Android / iOS app to turn the light on and off, define timers, select the color, and/or dim the light. The aopp also supports 4 scenes for resting, reading, partying and casual use that you can customize as you wish. The LED bulb is also compatible with Amazon Alexa, and Google Assistant services so you can use voice commands to control the light instead. Bear in mind that you may need to wait a little longer to get custom firmware working for it, unless you are willing to get your hands dirty. But this looks so similar to “AI Light”, that I’d expect a port not to be too difficult.

You can purchase Sonoff B1 light bulb for $18 + shipping on ITEAD Studio website.

  1. keel
    July 4th, 2017 at 14:37 | #1

    I’m more concerned about the brightness level for itead’s own smart bulb.
    Most of the reviews I’ve read for Ai light complained that it’s not as bright as regular 7watt bulb (similar complain to xiaomi yeelights)

  2. Jerry
    July 4th, 2017 at 20:18 | #2

    Wasn’t RPi Zero supposed to be The IoT platform for these? People would control stuff with JavaScript apps directly from the browser running on the SBC.

  3. July 4th, 2017 at 20:54 | #3

    @Jerry
    RPi Zero W would be a little too big for this purpose, and you don’t really need a “powerful” processor for this, so ESP8266/ESP8285 are better suited to the task.

  4. tkaiser
    July 4th, 2017 at 21:27 | #4

    @Jerry
    No one will remember RPi Zero any more soon since the most famous SBC manufacturer out there is about to release ‘RPi Zero W killer’ called ‘BPi M2 Zero’! 😛

  5. FreeZing
    July 4th, 2017 at 22:32 | #5

    Here is another new product of Sonoff family :
    https://item.taobao.com/item.htm?spm=a1z10.1-c.w10975943-13959575189.1.4eeee40cQmq5rb&id=554420216654

    RF Bridge – now your 433MHz/315MHz RF devices can be control by cellphone , and make the RF device works with Alexa and Google home.

  6. Marius
    July 6th, 2017 at 00:47 | #6

    @tkaiser
    ehhm …. lol?
