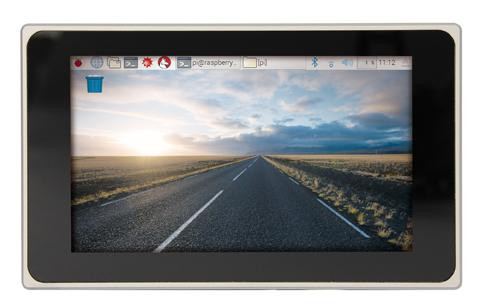

MASS RPI 07 is a 7″ Industrial Touch Panel PC Based on Raspberry Pi 3

MASS GmbH has launched RPI 07, a touch panel PC with a 7″ 800×480 display powered by a Raspberry Pi 3 board, and designed for industrial applications thanks to a 12V to 24V variable power input, aluminum housing, DIO with optocouplers, an optional CAN Bus and more.

MASS RPI-07 specifications:

  • SoC – Broadcom BCM2837 quad core ARM Cortex A53 processor @ up to 1.2 GHz with VideoCore IV GPU
  • System Memory – 1GB LPDDR2
  • Storage – 16GB micro SD SDHC Class 10
  • Display – 7″ WVGA 800×480 touchscreen display with 250cd/m² brightness, 500:1 contrast, 10-point touch

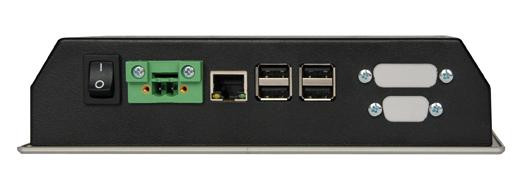

  • Connectivity – 1x 10/100Mbps Ethernet, 802.11 b/g/n WiFi and Bluetooth 4.2 LE
  • USB – 4x USB 2.0
  • Optional Interfaces – Real-time clock (RTC), DIO with optocouplers, I²C, CAN, RS232
  • Power supply – 12 to 24V DC (15W max) via 2-pin terminal with on/off switch
  • Dimensions – 200 x 118 x 48mm (powder coated metal housing)
  • Weight – 900 grams
  • Certifications – CE

Hardware options include VESA 75 mount with pivot arm or foot,holding clamp for mounting in consoles, control cabinet doors or wall recessing, digital input card 8-bit with optocouplers, digital output 8-bit card with optocouplers, analog input card 5 channel 10-bit, and analog output card 4 channel 10-bit.

The company supports Raspbian and Microsoft Windows IoT Core for the panel PC, with other operating systems available on requests.

The company has not released availability and pricing information for the RPI 07. You may find more details on the product page.

Via LinuxGizmos

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
Nobody of Import
Nobody of Import
7 years ago

No price. Shame.

Basically, it’s a very nice industrial class touchpanel case with options of enclosing some very useful I/O solutions in the same case.

The SD card’s going to be a constrainer. The thing halts and skips a bit if your application needs storage access- the SD has to be “right” along with you “overclocking” it on a Pi3 for it to be consistent in access speed. You’ll want a U-1 rated UHS-I card or better, and preferably an A1 rated card to make this rock.

Luke
Luke
7 years ago

Well

There are industrial SD’s with better life ^ don’t remember class / speed wise.

geokon
geokon
7 years ago

Everything I’ve been reading is that people that have tried to use RPi’s in products very quickly have major SD card problems and have to swap out cards once a year or so. There are similar products at a similar price point that come with built-in storage

D4rk1B0t
D4rk1B0t
7 years ago

SD cards wear out when (sloppily) running them under an OS that considers them an HDD: lots of writes…
Need to use an OS fully running in RAM (OpenWRT/LEDE, Openelec, …), a filesystem with wear-leveling or a combination of both.
