Intel Celeron N3060 based Industrial Fanless Touch Panel Computer Supports SATA Drives

Orange Pi Development Boards

Axiomtek GOT5103W-845 is a new IP65 industrial touch panel PC with a 10.1″ display, an Intel Celeron N3060 dual core processor, up to 8GB RAM, dual Gigabit Ethernet, USB 3.0, and support for half-slim SATA and mSATA SSD drives.
Axiomtek_GOT5103W-845_Panel_PC_SATASpecifications:

  • SoC – Intel Celeron N3060 dual core processor @ 1.6GHz / 2.48 GHz (Turbo) with Intel HD graphics 400 with 12EU @ 320/600 MHz
  • System Memory – 1 x 204-pin SO-DIMM DDR3L-1600 up to 8 GB
  • Storage – 1x mSATA, 1x optional half-slim SATA SSD
  • Display – 10.1″ WXGA TFT LCD with LED and projected capacitive touch screen; 350 nits; 1280 x 800 resolution
  • Video Output – 1x HDMI port
  • Audio – 1x Line Out, HDMI, 2x speakers
  • Connectivity – 2x 10/100/1000Mbps (Intel i211AT), optional WLAN antenna
  • USB – 2x USB 2.0, 2 x USB 3.0
  • COM ports – 1 x RS-232; 1 x RS-232/422/485
  • Expansion for storage, Wifi, GPRS/GSM, or 3G/4G
    • 1x Full-size PCI Express Mini Card with mSATA supported
    • 1x Full-size PCI Express Mini Card with SIM slot
  • Misc – Watchdog Timer, 5 membrane keys on front panel to adjust system display, volume and brightness
  • Power Supply
    • AC version: 100~240V AC-DC 60W power adapter (default) with screw connector
    • DC version 1: 9-36VDC with over current protection fuse (optional) via terminal block
    • DC version 2: 24VDC with over current protection fuse (optional) via terminal block
  • Dimensions – 260.8 x 38 x 194.1mm
  • IP Rating – IP65 (front panel)
  • Operating Temperature – 0° ~ +50°C
  • Relative Humidity – 20% ~ 90% @ 40°C; non-condensing
  • Vibration – 2 G, 10 ~ 500Hz, random for SSD
  • Certification – CE

The panel is said to support Windows 10, Windows 8.1, WE8S, Windows 7, or WES 7. No words about Linux support, but I assume this could be implemented on request. Several mounting options are available, namely panel mount, wall mount, VESA arm, or  desktop stand.

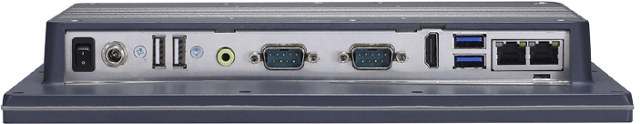

Industrial_Touch_Panel_PC_Dual_Gigabit_USB_3.0_SerialExtra options include Wi-Fi + Bluetooth kit, panel mount kit, half slim SATA SSD bracket kit, and/or RFID kit.

Axiomtek latest industrial touch panel computer will be available soon, but price has not been publicly disclosed. You can visit Axiomtek GOT5103W-845 product page for a few more details.
