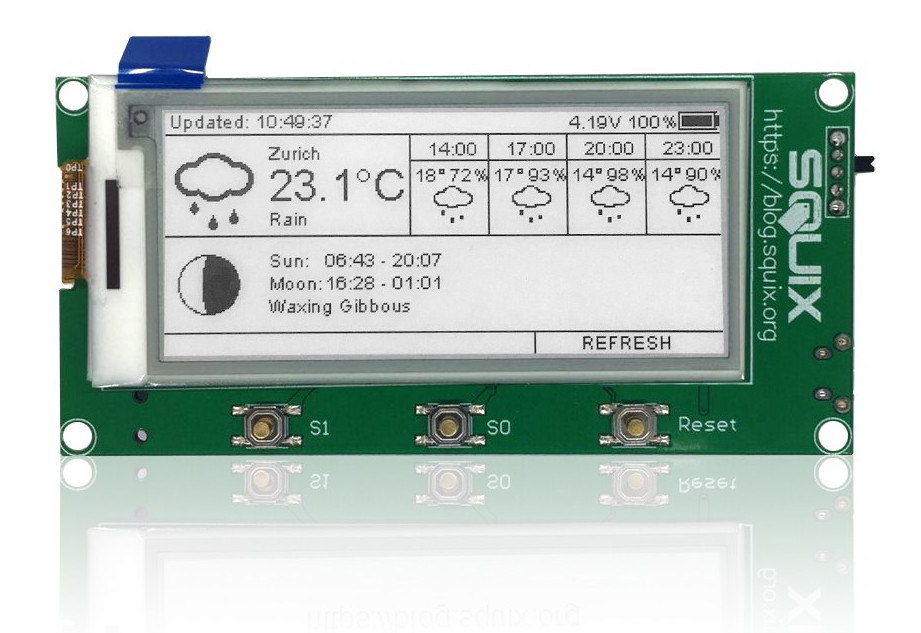

Squix (Daniel Eichhorn) has designed a 2.9″ ESPaper Lite Kite is a battery powered kit based on a black and white ePaper module, and ESP-WROOM-02 module based on Espressif Systems ESP8266 WiSoC.
2.9″ ESPaper Lite Kit specifications:
- Wireless Module – ESP-WROOM-02 WiFi module with Espressif ESP8266
- Display – 2.9″ B&W ePaper module with 296×128 pixels resolution connect over SPI to ESP8266
- Debugging / Programming – 6-pin serial port header
- USB – 1x micro USB port for programming
- Misc – 3 buttons: Reset (wake up from deep sleep); S0 (flash/GPIO0); S1: user button connected to GPIO12; power switch; charging and (firmware) flashing LEDs
- Power – JST connector for LiPo battery; charging circuit
You’ll need a 3.3V USB to TTL debug board for flashing the firmware to the board, and a LiPo battery to power it up. The solution is particularly useful if you want a battery powered display that is infrequently updated, since such display only consumes electricity when updated. They could run the module for several weeks with a 800m Ah battery while updating weather info every 20 minutes. MiniGrafx library provides drivers and samples for the board. It is available on Github.
