AAEON FWS-2360 Denverton Desktop Network Appliance Supports up to 6 Ethernet Ports, SATA Storage

Last summer, we started to see products and motherboards based on Intel Atom C3000 series Denverton SoC, including GIGABYTE MA10-ST0 server motherboard and Axiomtek NA362 network appliance with up to 10 LAN ports.

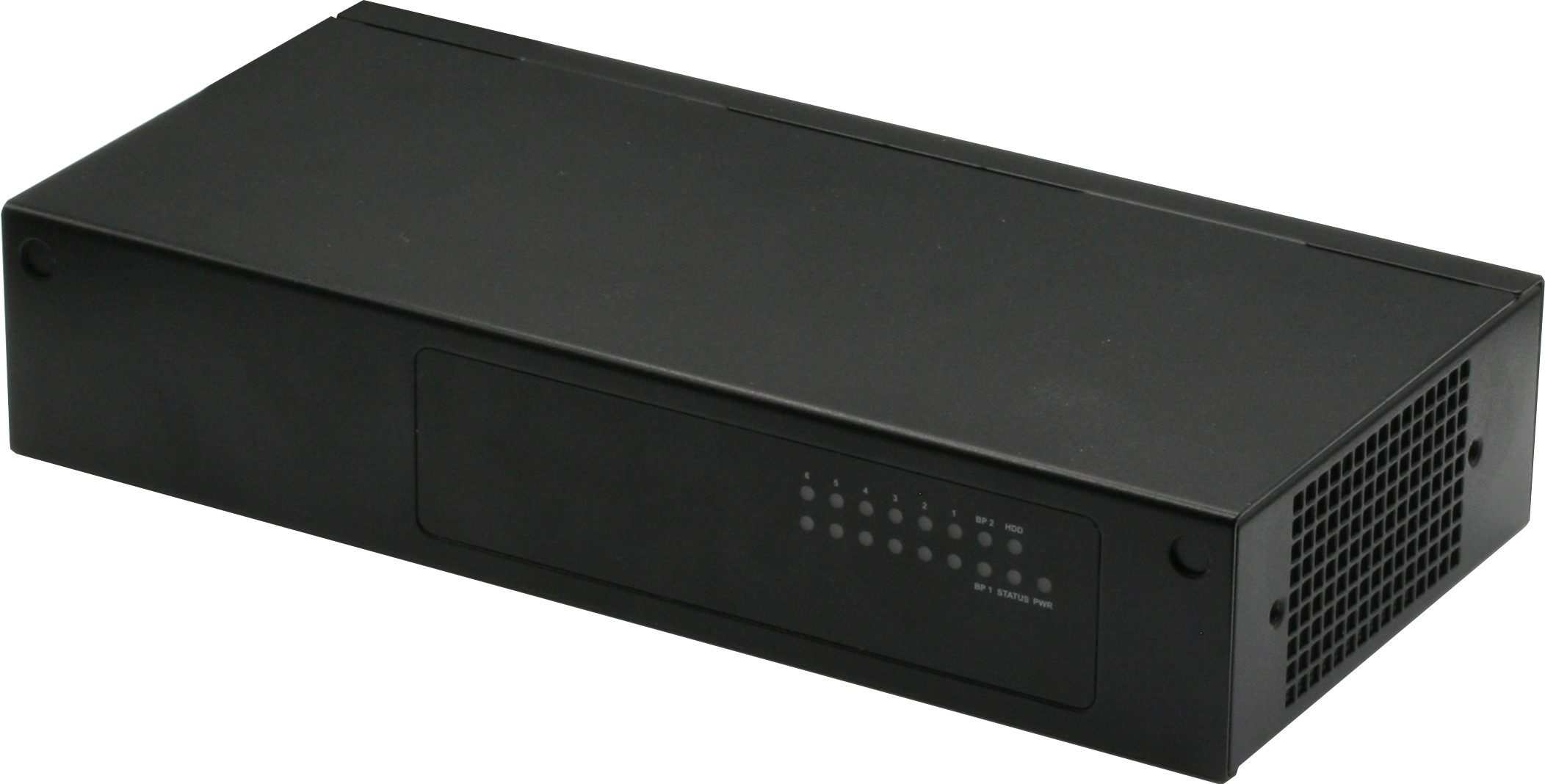

AAEON has informed me they’ve launched their own Denverton network appliance with AAEON FWS-2360 equipped with a pair of fiber/copper SFP GbE ports, four  GbE ports and two Mini-card slots to accommodate WiFi and 4G LTE expansion. The device also comes with an mSATA socket and a 2.5” SATA bay for storage.



Click to Enlarge

AAEON FWS:

  • SoC (one or the other)
    • Intel Atom C3308 dual core Denverton processor @ 1.60 / 2.20 GHz with 4MB cache; 9.5W TDP
    • Intel Atom C3558 quad core Denverton processor @ 2.20 GHz with 8MB cache; 16W TDP
  • System Memory
    • Dual core – 1x DDR4 SODIMM ECC DIMM
    • Quad core – 2x DDR4 SODIMM ECC DIMM
  • Storage – On-board eMMC flash up to 16GB; 1x 2.5″ SATA III HDD/SSD bay; 1x mSATA
  • Ethernet
    • 4x Gigabit Ethernet RJ45 ports via Intel X553 based on Marvell 88E1543 PHY
    • 2x Gigabit Ethernet ports using Intel i211 (default) or 2x SFP cages using Intel i210
    • Up to two pairs bypass function
  • USB – 2x USB 3.0 ports, 1x internal USB 3.0 interface
  • Expansion
    • 2x mPCIe mini card sockets with one SIM card socket
    • 8-pin internal header for digital I/Os (4-in /4-out)
  • Management – 1x RJ45 console port
  • Security – TPM v1.2 9660/TPM2.0 9665
  • Misc – Power, network, and storage status LEDs, power & reset buttons, reserved pin-header for mouse/keyboard connector, RTC, watchdog timer, system fan header, 4x antenna holes
  • Power Supply – 12V DC input
  • Dimensions –  220 x 105 x 44mm
  • Weight – Net: 1.64 kg; gross: 2.54 kg with 12V/5A adapter,2.69 kg with 12V/7A adapter
  • Temperature Range – 0°C ~ +40°C
  • Vibration
    • 0.5 Grms/ 5 ~ 500Hz / operation (2.5″ HDD)
    • 1.5 Grms/ 5 ~ 500Hz / non operation
  • Shock
    • 10 G peak acceleration (11 m sec. duration), operation
    • 20 G peak acceleration (11 m sec. duration), non operation
  • Certifications – FCC class B, CE class B

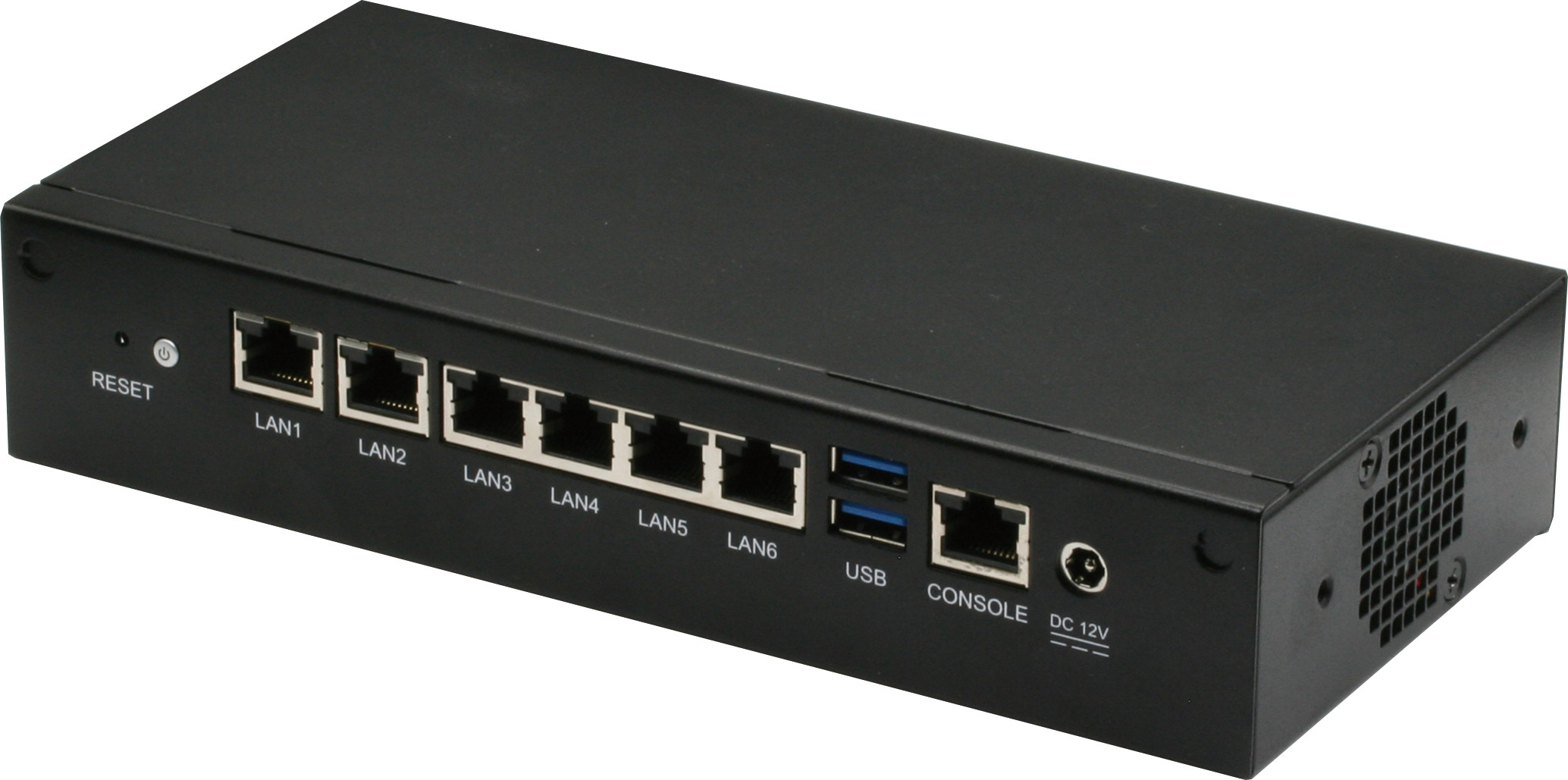

Click to Enlarge

This type of system can be used for wireless gateway, SD-WAN, IPS, WAN Optimization, NFV and vCPE applications. FWS-2360 supports Intel QuickAssist Technology (QAT) built into to the Denverton processor, allowing faster encryption and data compression. The company also produces an entry-level alternative FWS-2273, based instead on Celeron N3350 Apollo Lake processor.

Pricing is not publicly available. Visit AAEON FWS-2360 or/and FWS-2273 product pages for more information.
