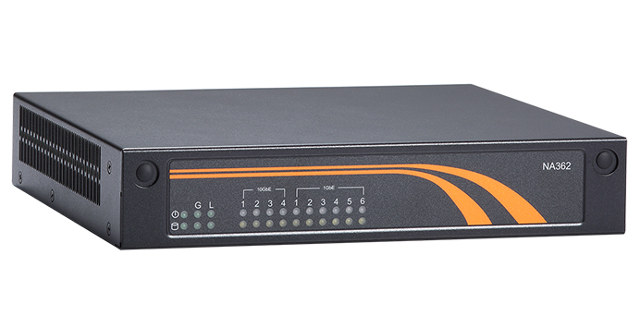

Axiomtek NA362 Network Appliance Features Intel Atom C3538/C3758 Processors, Up to 10 LAN Ports

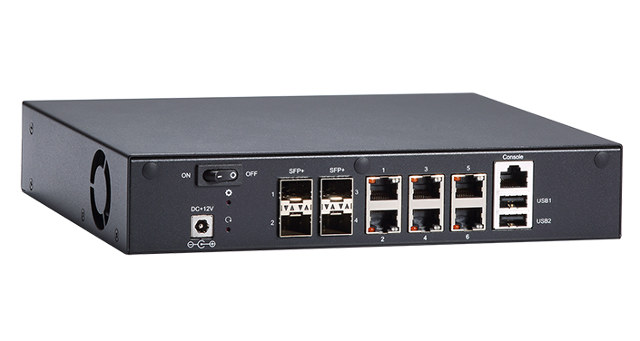

We reported about GIGABYTE MA10-ST0 motherboard powered by a 16-core Intel C3958 Denverton processor earlier this week, but that also corresponded to the official launch of Intel Denverton family, and many companies made announcements for their Denverton boards, products, or COM Express modules including SuperMicro, Kontron, Portwell, and others, such as Axiomtek NA362 Network Appliance powered by Atom C3538 or C3758 processors, and offering up to 10 LAN ports with six GbE RJ-45 ports, and up to four SFP+ cages.

Axiomtek NA362 specifications:

  • SoC (one or the other)
    • Intel Atom C3538 quad core “Denverton” processor @ 2.10 GHz with 8MB cache; 15W TDP
    • Intel Atom C3758 octa core “Denverton” processor @ 2.2 GHz with 16MB cache; 25W TDP
  • System Memory – 2x or 4 x R-DIMM/U-DIMM non-buffer DDR4, up to 64/128GB
  • Storage – 1x 2.5″ SATA3 HDD; 1x mSATA
  • Ethernet
    • 6x 10/100/1000 Mbps RJ45 ports via Intel i210
    • 4x 10 GbE SFP+ cages for C3758 model only
    • One pair LAN Bypass
  • Expansion – 1x PCI Express Mini Card for optional Wi-Fi/3G/LTE
  • USB – 2x USB 2.0 port
  • Management – 1x RS-232 (RJ45) console port
  • Misc – Power & network Status LEDs, power switch
  • Power Supply – 1x 12V/5A or 1x 12V/7A power adapter (depends on CPU SKU)
  • Temperature Range – 0°C ~ +40°C
  • Dimensions –  231 x 197 x 44 mm (1U desktop form factor)
  • Weight – Net: 1.64 kg; gross: 2.54 kg with 12V/5A adapter,2.69 kg with 12V/7A adapter
  • Certifications – FCC class B, CE class B

Atom C3538 SoC is equipped with two 10 GbE interface, but Axiomtek decided not to provide any SFP+ cages on the model based on this processor with only the six RJ45 ports.

The appliance supports the Intel Data Plane Development Kit (Intel DPDK), the Yocto Project, as well as Linux, Windows Server 2012 R2, and Windows Server 2016 operating systems. The server is said to be suitable for VPN, network bandwidth controller, firewall and UTM (Unified Threat Management) applications.

Axiomtek NA362 will be available in October 2017 through two SKUs: NA362-DAMI-C3758-US (C3758, 4x DIMM, 10 LAN) and NA362-D6GI-C3538-U (C3538, 2x DIMM, 6 LAN). Check out the product page for further information.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

4
Leave a Reply

avatar
4 Comment threads
0 Thread replies
2 Followers

Most reacted comment
Hottest comment thread
3 Comment authors
WillyJaXXblu Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Willy
Guest
Willy

It’s great to see small devices like this one finally adopting 10GE and making use of these CPUs capabilities. The only thing this box is missing in my opinion is a small LCD+4 buttons on the right (where there’s nothing) to report a bit more information like “master”/”backup”, data rate, CPU usage and so on. With 4x10G, such a device can play an important role in a networked infrastructure (eg: top-of-the-rack firewall) and its small size will tend to make it confused with an ADSL router or to make operators simply disregard it during operations. And to people who will think “pwah, an atom with 10G!”, I’d say yes, a properly tuned atom can deal with 10G. Even more via DPDK when you have 8 available cores!

blu
Guest
blu

10GbE is definitely here to stay, Atom or otherwise ; )

JaXX
Guest

10G yes, but not 10GbE, Base-T twisted copper takes too much juice, and actually makes it more expensive, SFP+ and DACs are the path to follow !

Willy
Guest
Willy

@JaXX
Yep absolutely! Also DAC cables have lower latency than RJ45 which requires a slower line coding (I think there are in fact multiple transformations). The difference is even visible in ping time (a few microseconds difference). DAC are perfect for short distances, for adjacent racks or even on a desk or in a lab.
