NXP i.MX 8M Mini Low Power Cortex A53/Cortex M4 Processor to be Manufactured using 14LPC FinFET Process Technology

NXP i.MX 8, i.MX 8M, and i.MX 8X processors are barely available, but the company has already announced another member of their i.MX8 family with i.MX 8M Mini processors with one to four Cortex A53 application cores, one Cortex-M4F real-time core, 2D/ 3D graphics accelerator, and support for 1080p video playback and output.

Apart from the lack of 4K support, that looks about the same as i.MX 8, but there’s one important difference: the manufacturing process. i.MX 8M Mini processors are manufactured using 14LPC FinFET process technology allowing the Cortex A53 cores to reach 2.0 GHz, and the Cortex-M4F core can be clocked up to 400+ MHz. Some video interfaces  have also been removed from the new processor such as embedded DisplayPort and HDMI 2.0a.

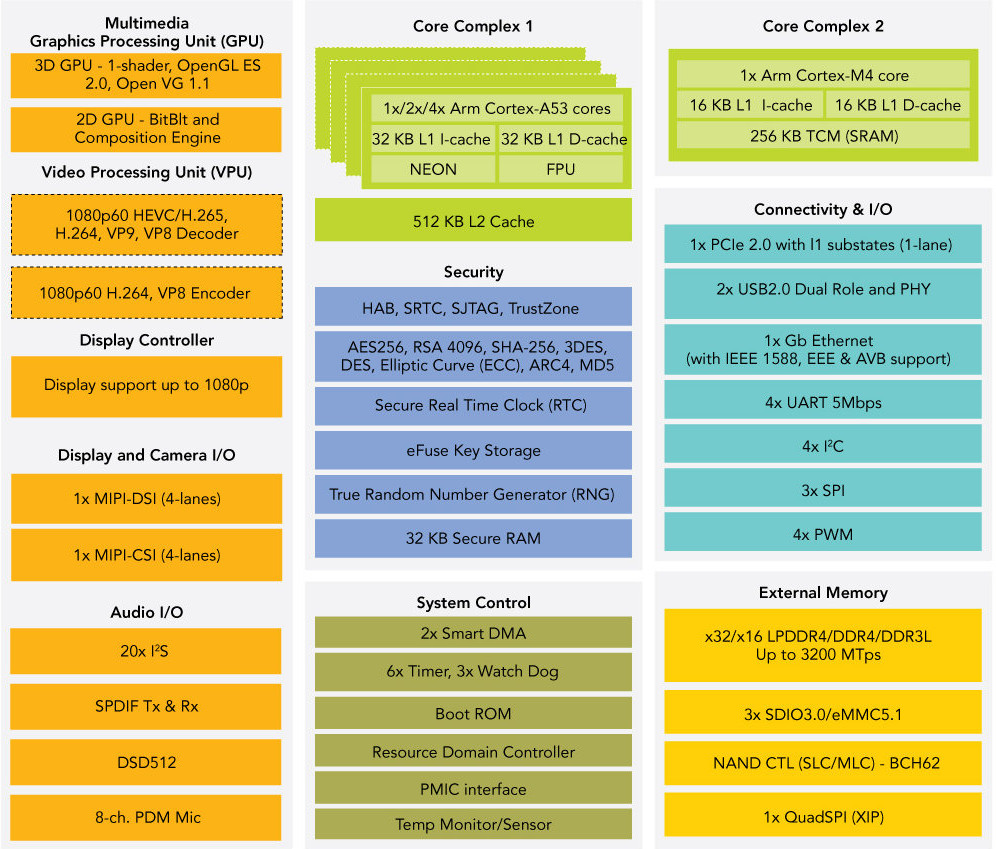

Click to Enlarge – Dotted line items are optional

NXP i.MX 8M Mini key features:

  • Application cores – One to four Arm Cortex-A53 cores up to 2GHz
  • Real-time core – Arm Cortex-M4 at speeds of 400+MHz
  • Memory – DDR3L, DDR4 and LPDDR4
  • Video – Optional 1080p video encode and decode
  • GPU – Optional 2D and 3D graphics
  • Display and camera MIPI DSI/CSI interfaces
  • Multi-channel audio and digital microphone inputs
  • Peripherals – I2C, SAI, UART, SPI, SDIO, USB, PCIe, Gigabit Ethernet
  • Low-power and standard DDR memory support
  • Multiple pin-compatible product offerings

i.MX 8M Mini family will be used in any embedded consumer and industrial application with sampling starting in Q2 2018, and mass production schedule for Q1 2019. Some limited additional information may be found on the product page.
