STMicro VL53L1X Time of Flight (ToF) Sensor Extends Distance Measurement Range up to 4 Meters

STMicroElectronics VL53L0X ToF (Time-of-flight) range sensor is a tiny chip that can accurately and quickly measure distance up to 2 meters using laser light.  I had the chance to test the sensor via TinyLIDAR board connected Arduino and Raspberry Pi, and found it was a great little sensor. TinyLIDAR includes an STM32 MCU, but you can also find standalone board for as low as about $4 shipped on Aliexpress.

However, if 2 meters is too short a range for your project, the good news is that STMicro has now launched VL53L1X ToF “FlightSense” sensor with a range of up to 4 meters. VL53L1X is pin-to-pin compatible with VL53L0X, so existing PCBs could be re-used with the new sensor.

STMicro VL53L1X main specifications:

  • Emitter: 940 nm invisible laser (Class1)
  • SPAD (single photon avalanche diode) receiving array with integrated lens
  • Low-power microcontroller running advanced digital firmware
  • Distance Ranging up to 4 meters distance measurement, up to 50 Hz ranging frequency
  • Field-of-view (FoV) – 27 ° typ., but the region-of-interest (ROI) size is programmable allowing for a lower FoV
  • Programmable ROI position on the receiving array, providing multizone operation control from the host
  • Host interface – I2C up to 1 MHz
  • Shutdown and interrupt pins
  • Supply Voltage – 2.8V
  • Dimensions – 4.9×2.5×1.56 mm

It’s still to early to find ultra-cheap (Chinese) VL53L1X boards, but the new chip can be tested using STMicro P-NUCLEO-53L1A1 Nucleo pack for STM32 Nucleo or X-NUCLEO-53L1A1 expansion board for STM32 Nucleo with you already own NUCLEO-F401RE and NUCLEO-L476RG  development board.

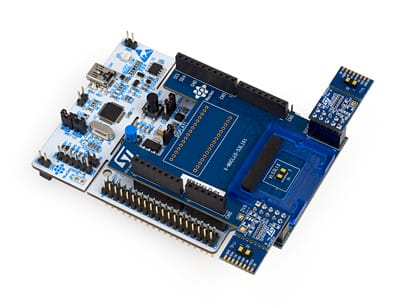

P-NUCLEO-53L1A1 Evaluation Board

The Nucleo pack sells for $56, while the expansion board goes for $36. STMicro VL53L1X sensor itself sells for $3.6 per unit for 1k orders. More details about features, tools, and purchase links on the product page.

Via Softei
