Broadcom AFBR-S50 Industrial ToF Sensor Works up to 10 Meters

Time-of-Flight (ToF) ranging sensors can measure distance accurately using laser light and are sold in a really tiny package. STMicro VL53L0X ToF sensor may be the most popular with a 2 meter range, and its ultra low cost.

The sensor got an extended range up to 4 meter with the recent launch of VL53L1X, but STMicro is not the only company providing such solution, and Broadcom has just introduced their AFBR-S50 ToF sensors for industrial applications and a range of up to 10 meters.

Two versions are offered with different laser light sources, field of view, and number of pixels:

  • AFBR-S50MV680B
    • 680nm laser light source
    • One illuminated pixel
    • FOV 1.55° x 1.55°
    • Single voltage – 5V supply
  • AFBR-S50MV85G
    • 850nm laser light source
    • 9-16 illuminated pixels
    • FOV 6.2° x 6.2°
    • Single voltage – 5V supply

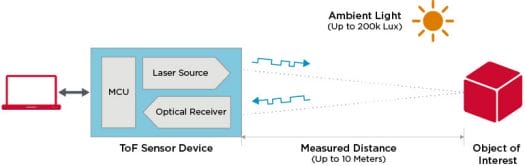

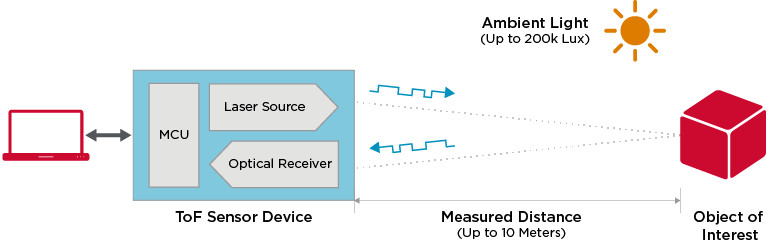

The multipixel version of AFBR-S50 supports up to 3,000 frames per second with up to 16 illuminated pixels out of 32,  and is operational under ambient light conditions up to 200k Lux.  A SPI interface is used to communicate with the host.

The solutions is suitable for industrial sensors,  gesture sensing, distance measurement,  robotics, and  automation and control.

More details can be found on the product page.
