PIPO X3 Windows Mini PC / PoS Integrates a Thermal Printer

PIPO has launched several Windows 10 mini PC with a built-in touchscreen display suitable for PoS (Point of Sale) applications. You just had to connect your own thermal printer and/or barcode scanner.

It now appears the company has taken their Atom x5 based PIPO X12 model and redesigned a case around the main board to integrate a thermal printer to print receipts. Meet PIPO X3.

PIPO X3 POS Thermal PrinterPIPO X3 specifications:

  • SoC – Intel Atom x5-Z8350 “Cherry Trail” quad-core processor @ 1.44 GHz  / 1.92 GHz (Turbo) with Intel HD graphics 400
  • System Memory – 2 GB DDR3
  • Storage – 32 GB flash, and micro SD slot up to 64GB
  • Display – 8.9″ PLS display with 1920×1200 resolution
  • Video Output – HDMI 1.4a output
  • Audio Output – HDMI, 3.5mm audio jack, built-in stereo speaker.
  • Connectivity – 10/100M Ethernet ports, 802.11 b/g/n WiFi 4 and Bluetooth 4.0 with external antenna
  • USB – 3x USB 2.0 host ports, 1x USB 3.0 port
  • Printer
    • Print Paper Specification – 58mm
    • Print Width – 48mm
    • Print Speed – 90mm/s
    • Print Paper Capacity – 50,000,000m
  • Misc – Power and volume buttons, and reset pinhole; RJ11 port; RS-232 serial port
  • Power Supply – 24V/2.5A
  • Dimensions – 31.2 x 15.10 x 7.7 cm
  • Weight – 1.09 kg

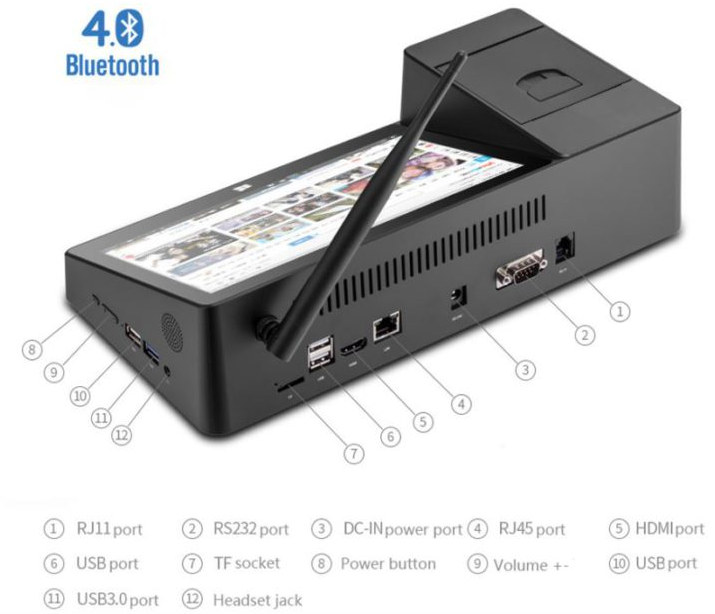

PIPO X3 ports

The mini PC runs Windows 10, and ships with a power supply, and a user manual. The RS-232 can be used with a barcode reader, but I’m not sure what the RJ11 port is for unless the PoS needs the ability to fax documents, or Internet dial-up is still a thing in some parts of the world.

I first found PIPO X3  for $199.99 including shipping on GearBest [Update: Coupon GBCNX3 brings that down to $189.99], but you’ll also find it on Aliexpress for as low as $154.80 plus shipping. Note that according to at least one Aliexpress seller, PIPO X3 runs both Windows 10 and Android 5.1, but they did not provide any photos or screenshots to confirm the claim.

Via AndroidTVBox.eu

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

4 Replies to “PIPO X3 Windows Mini PC / PoS Integrates a Thermal Printer”

    1. Thank you. Another person also left a similar comment on Facebook:

      And the RJ11 will be for a drawer kicker to make the cashdraw open, standard output on most receipt printers to a 24v solenoid in the cash drawer
