Novasom SBC-U1 is a Tiny Industrial grade ESP32 Single Board Computer

Novasom Industries is an international company specializing in SBCs (Single Board Computers) with offices in Romania and the US. Most of their products are based on Arm and Intel processors, and they have two product lines their U-Line for low power IoT devices, and M-Line for applications requiring multimedia processing with various Rockchip,  Qualcomm, and Intel processors.

One model in the U-Line caught my attention, as beside an NXP i.MX6ULL SBC, the company is also offering an industrial temperature grade ESP32 SBC named SBC-U1 / SBC-U1A.

SBC-U1A Industrial ESP32 Board

SBC-U1/SBC-U1A board specifications:

  • SoC – Espressif Systems ESP32 dual core Tensilica LX6 processor @ 240 MHz, 384KB RAM
  • Storage – 4MB flash, micro SD card slot up to 32GB
  • Connectivity – 802.11 b/n/g WiFi 4, Bluetooth 4.1 LE
  • I/Os – 24-pin 2.54mm pitch header with up to 15 GPIO @ 3.3V, I2C, SPI, 2-ch 12-bit ADC, 2-ch 10-bit DAC, 2x protected inputs up to 30V
  • Misc – User LED, RTC
  • Power Supply
    • 5V inversion polarity protected
    • Battery support with charger circuit
    • Consumption – 0.9W operating, 0.75mW in standby
  • Dimensions – 37.5 x 31 mm
  • Temperature Range – -40 to 85°C

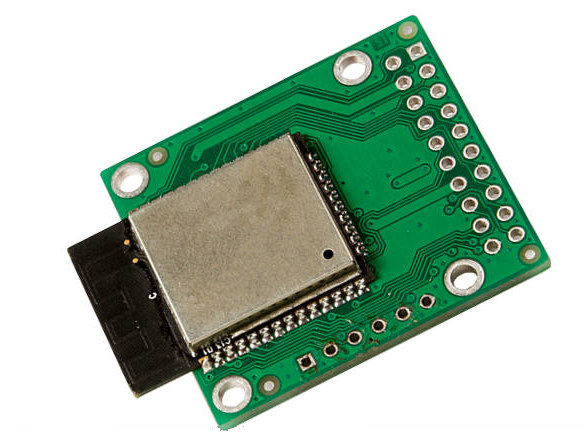

ESP32 industrial board

I could not find any differences between SBC-U1 and SBC-U1A by just looking at the specifications, but the company explains that SBC-U1 without letters indicates the “range” of capabilities of the board, while SBC-U1A their standard OEM product with fixed configuration, and customers can customize the board to their own needs as well if ordering  a few thousands units. The board runs FreeRTOS real-time operating systems, and is designed for IoT and “smart devices” applications requiring WiFi/Bluetooth connectivity and battery support such as vending, domotics and other handheld applications.

You’ll find more details about SBC-U1A and other embedded products from the company in the products catalogue.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

6
Leave a Reply

avatar
3 Comment threads
3 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
5 Comment authors
chrisBorisdgptheyguyukJerry Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Jerry
Guest
Jerry

Probably ok for edge computing but rpi zero makes more sense in general when full gpu power is needed.

chris
Guest
chris

this cheap board has been made when NO GPU power is needed…

theyguyuk
Guest
theyguyuk

I was reading a article and watched a video yesterday where a well known YouTube poster used a esp32 and some resistors to get a VGA display. Quite interesting what these cheap devices can do.

dgp
Guest
dgp

People have been resistor ladder based VGA for ages. It’s possible in software even on an AVR: https://www.youtube.com/watch?v=sNCqrylNY-0

Boris
Guest
Boris

All ESP32-WROVER modules (module used on this board) are specified for temperature range -40 – +85 C, so nothing special about this board to call it “industrial grade” board.
It is just another ESP32 board like dozens other boads in the price range oof 8-15 US$ …

chris
Guest
chris

they add a battery charger manager- i think very useful for field IO operation , and some protected input up to 30 V. Do not confuse extended temperature range with industrial grade board…but i agree with you it’s a very simple IO node. Useful and ready for the field . I dont think as many other ….
