ESP32-PICO-D4 System-in-Package Combines ESP32, 4MB SPI Flash, a Crystal Oscillator, and Passive Components

Espressif Systems has revealed another ESP32 variant, but this time it’s not an SoC, but a 7x7mm system-in-package (SIP) that comes ESP32 dual core processor, a 4MB  SPI flash, a crystal oscillator and various passive components, so that you don’t need to include those in your design, and create an ultra-compact PCB for wearables and other space-constrained applications.

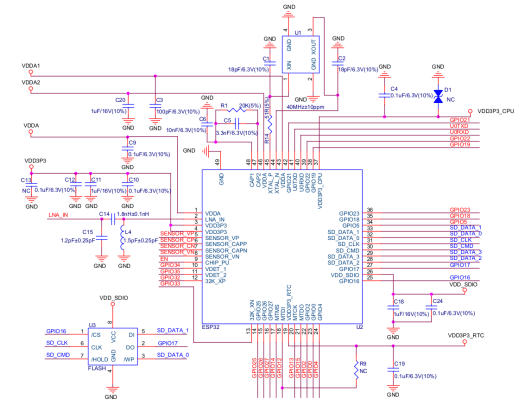

ESP32-PICO-D4 Internal Schematics – Click to Enlarge

ESP32-PICO-D4 SiP specifications:

  • SoC – ESP32 with two Tensilica LX6 cores, 448 KB ROM, 520 KB SRAM (inc. 8KB RTC memory), 1kbit eFuse
  • On-module Flash – 4MB SPI flash
  • Connectivity
    • WiFi – 802.11 b/g/n/e/i (802.11n up to 150 Mbps)
    • Bluetooth – Bluetooth V4.2 BR/EDR and BLE specification; ; class-1, class-2 and class-3 transmitter; Audio: CVSD and SBC
  • SIP Interfaces
    • SD card, UART, SPI, SDIO, LED PWM, Motor PWM, I2S, I2C, IR
    • GPIO, capacitive touch sensor, ADC, DAC, LNA pre-amplifier
  • Sensors –  On-chip Hall sensor & temperature sensor
  • Clock – On-module 40 MHz crystal
  • Power supply – 2.3 ~ 3.6V
  • Operating current – Average: 80 mA
  • Temperature range –  -40°C ~ 85°C
  • Package dimensions –  7.0±0.1 mm x 7.0±0.1 mm x 0.94±0.1 mm

I understand ESP32 supports up to 16MB flash, so future ESP32-PICO-D16 SIP might be possible too. The second schematics in the datasheet shows what a basic board with ESP32-PICO SIP looks like.

ESP32-PICO-D4 Module Peripheral Schematics – Click to Enlarge

The company explains the SiP is particularly suited for any space-limited or battery-operated applications, such as wearable electronics, medical equipment, sensors and other IoT products. Beside the datasheet, there’s currently very little information about ESP32-PICO-D4 on the web, so we’ll have to wait to see what comes out of it.

[Update: Photo of module with ESP32-PICO-D4

]

Via ESP32net Tweet
