NiteFury Puts Xilinx Artix-7 FPGA into an M.2 Card (Crowdfunding)

NiteFury is an FPGA development board, but it works differently than most, as RHS Research LLC put a Xilinx Artix-7 FPGA into an M.2 Key M card that you can easily insert into a laptop or mini PC with a 80mm M.2 socket.

The board also includes DDR3 memory, and exposes a few configurable I/Os. You can use NiteFury to experiment with Xilinx PCIe IP, but also as FPGA co-processor for example to handle encryption, and encoding/decoding data.

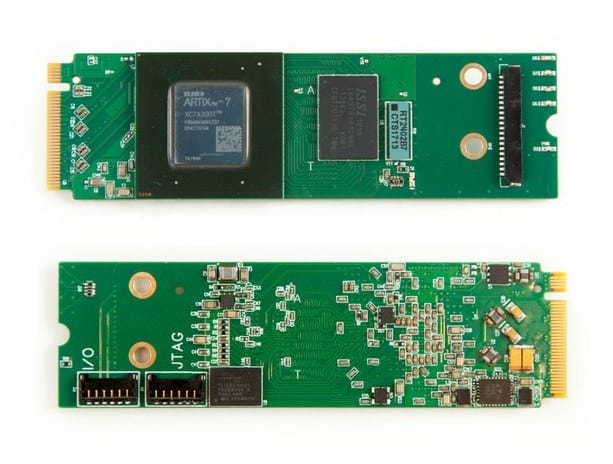

NiteFury FPGA M.2 CardNiteFury card specifications:

  • FPGA – Xilinx Artix XC7A200T-2FBG484E delivering up to ~1000 GMAC/s, with 215,360 Logic cells, 33,650 Slices, 269,200 CLB flip-flops, and 740 DSP slices.
  • System Memory – 8 Gbit DDR3 (512 MB x 16)
  • Host Interface – PCIe 4x gen 2 (2 Gb/s)
  • External I/Os
    • Via I/O connectors – 12x I/O including 4x selectable analog or digital – JTAG ready
    • Via PCIe connector – 1x 3.3 V digital I/O (LED), SMBus
  • Misc – 4x LEDs
  • Dimensions – 80 x 22mm; M.2 (NGFF) 2280, keyed for M slot; Height: 5.5 mm without heatsink, 10 mm with heatsink
Artix-7 FPGA Card Block Diagram
Block Diagram

The board can be programmed using Xilinx Vivado Design Suite. The company has already published PDF schematics and sample projects in Github.

NiteFury launched on Crowd Supply earlier this month with a funding target of $17,200. The FPGA itself is said to cost over $250, but the board goes for just $320 without heatsink, and $359 with a heatsink and fan for 8W of power dissipation. Shipping is free to the US, and adds $20 to the rest of the world. NiteFury is expected to ship in August 2019. Note the company highlights that a heatsink is an absolutely necessity when using NiteFury, so if you go with the $320 reward, you’ll want to use your own cooling solution. It is also recommended to have at least 7.5 mm of clearance above the top of the board.
