KB-IDE Open Source IDE Supports ESP-IDF, Arduino, and Visual Programming for ESP32 Boards

We’ve previously written about MakerAsia when covering their KBX Extension case for Kidbright ESP32 educational board. The company has now launched a new product, but it’s not an hardware platform, and instead KB-IDE is an open IDE (Integrated Development Environment) ESP32 boards.

The IDE is suitable whatever your level from kids getting started with supports visual programming, to Arduino programming, and even the official Espressif ESP-IDF framework for more experienced makers.

KB-IDE

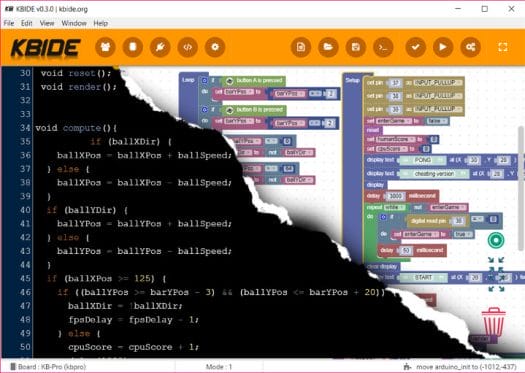

Code Editor and Block Mode (Visual Programming)

The IDE comes with with a Board Manager, a Plugins System and works with any Arduino Library out of the box.

Made with Vue.js framework, KB-IDE is open source with the code available on Github.  You can install a binary release, or build it from source for Windows, Linux, or Mac OS. Since it’s open source, it’s also expandable so makers can customize it, for instance by adding new architectures (AVR and ARM are already planned), new boards,  creating plugins and/or adding libraries.

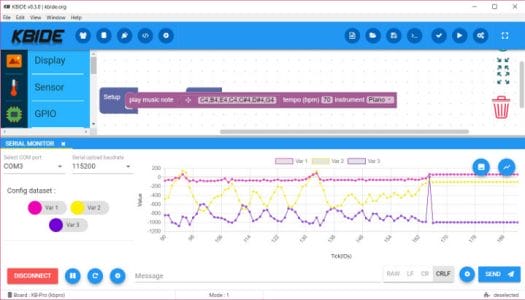

KBIDE Serial Console
KBIDE Serial Console

I’ve found KD-IDE to be quite nicer looking than Arduino IDE with for example the board manager showing actual photos of the boards beside the name. Some other notable improvements and features include 30-60% faster compilation, as serial console with raw text mode, customizable graph and controllable sending process, examples with tutorials and so on.

If you’d like to give it a try or get further details visit the official website.

KB-IDE Board Manager

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
blu
blu
5 years ago
Menno
Menno
5 years ago

Building it from source fails:

Using the binary gives me an empty window with no functionality.
Thanks, but no thanks.
I’ll check it out when they reach 1.0, for now I’ll just stick with Arduino IDE>

Comdet Phaudphut
Comdet Phaudphut
5 years ago

Binary running, can you show me the error log by open View->Toggle Developer Tools ?
Mostly install and compile from source we didn’t password protect any parts of our repo. After Googled, someone say this error may solved by using “npm cache clear –force” or install directly “npm install -g @vue/cli”
Thanks.

Niclas Hedhman
Niclas Hedhman
5 years ago

The “git clone” should use a https:// url instead of the ssh one. I have never used this, so I don’t know where the ssh url is introduced, but a relatively simple fix.
