$20 ICE Tower CPU Cooling Fan Targets Raspberry Pi 4

Orange Pi Development Boards

The Raspberry Pi 4 is much more powerful than its predecessors, but with great power comes a lot of heat, and it may affect the performance of your board under leaod. We’ve already seen that fitting a heatsink to Raspberry Pi 4 does help, and provided it’s sized appropriately, should help you board work at its full potential in most circumstances.

The Raspberry Pi Foundation is also working on improved firmware to lower temperature and power consumption of their latest single board computer, but if you want to make sure your board stays cool at all times: ICE Tower CPU cooling fan will certainly do the trick.

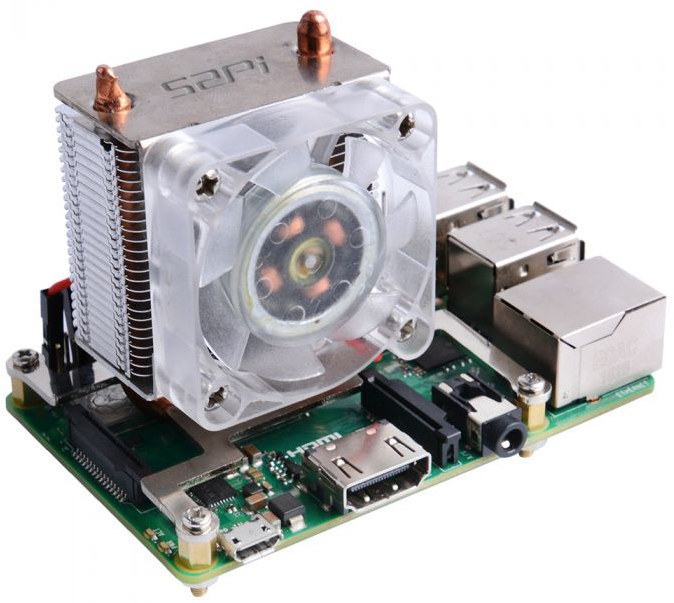

Raspberry Pi 4 Cooling FanIt’s fitted to a Raspberry Pi 3 board in the photo above, but Seeed Studio reports it’s compatible with Raspberry Pi 4, and can reduce the temperature of the Raspberry Pi from 80°C to 40°C.

It’s actually compatible with all recent Raspberry Pi boards as it’s placed on the four RPi mounting holes, and powered by the 5V from the 40-pin GPIO header.

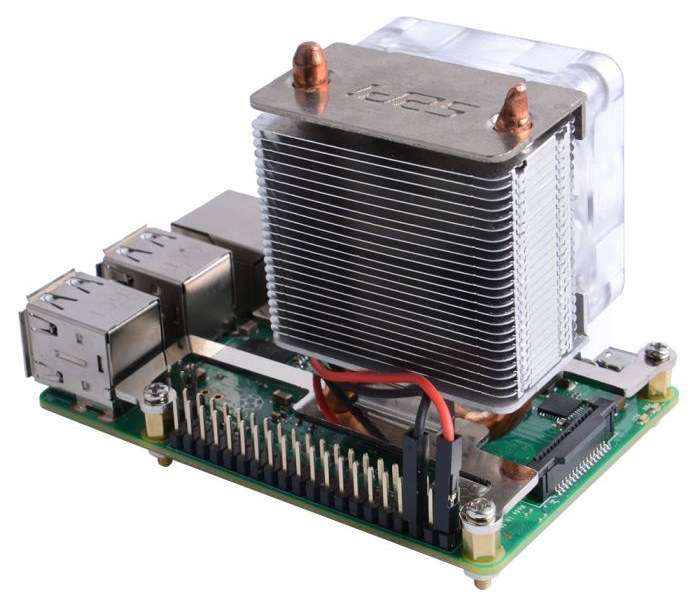

Raspberry Pi 4 Large HeatsinkMost people won’t actually need this, but they may want it, as it looks pretty cool (pun intended), and does not cost that much with Seeed Studio taking pre-orders for $19.90 plus shipping..Delivery is scheduled for July 19.
