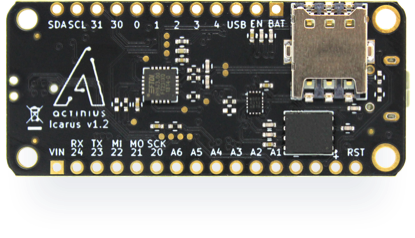

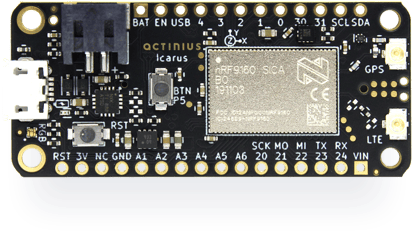

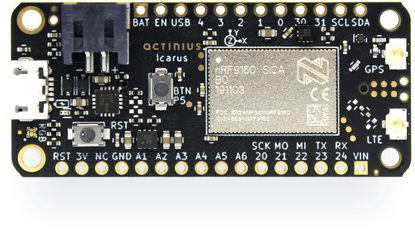

The new Icarus IoT board from Actinius, uses the Nordic nRF9160 SiP, a powerful yet low power system in a package designed for use with GPS and LTE-M & NB-IoT cellular data, also found in Ruuvi node which we covered a few months ago. The board’s purpose is for mobility and ease of project tracking anywhere, and can be found in application scenarios such as fleet management and security, cargo tracking, or asset monitoring, and many more.
The nRF9160, by Nordic Semiconductor, is a SiP (System in a Package) that carries an extensive line of embedded software and hardware. As we had reported the nRF9160 SiP low-power IoT solution consists of a global multimode LTE-M/NB IoT modem, an Arm Cortex-M33 core with Arm Trustzone security, assisted GPS, and flash memory. The whole SiP is housed in a 16 x 10 x 1.2 mm case and soldered to the Adafruit Feather compatible Icarus IoT board.

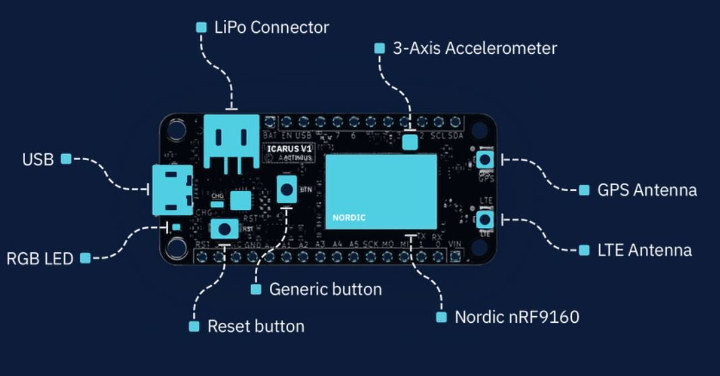

The Icarus has 1 MB Flash, 256 KB RAM, and interfaces are as follows:
- USB (via FTDI UART Bridge)
- up to 18x General Purpose IO
- up to 6x 12-bit, 200 ksps ADC with EasyDMA
- up to 4x SPI master/slave with EasyDMA (can be mapped to any pin)
- up to 4x I2C master/slave with EasyDMA (can be mapped to any pin; 1 preconfigured for onboard I2C peripherals and default I2C pin headers)
- up to 4x UART (also with CTS/RTS) with EasyDMA (can be mapped to any pin; 1 preconfigured for onboard USB-UART Bridge)
- I2S (Inter-IC Sound Interface) with EasyDMA digital microphone interface (PDM) with EasyDMA (can be mapped to any pin)
- 4x pulse width modulator (PWM) unit with EasyDMA (can be mapped to any pin)
- Serial Wire Debug (SWD) on 6-pin TagConnect footprint on the top plus programming pads on the bottom side
- ARM Trustzone
- ARM Cryptocell 310
- Supported by the OTAU Platform of Actinius for always secure and up-to-date firmware
- Can be powered from any combination of USB, Battery, or VIN (e.g. solar panel)
- Input voltage – 4.35V – 10.2V
- Max Input voltage (safety rating): 28V
- Over-voltage & under-voltage protection
- Low-noise, low power, switching power supply, with output up to 400mA
- USB-friendly Li-Ion/LiPolymer charger with MPPT
- Dimensions – 50.8 mm x 22.8 mm
- Fully compatible form factor and pinouts with Adafruit’s FeatherWing spec
AFAICT, there’s no information about software on the product page, but Adafruit reports the board runs Zephyr OS by default, and the company is planning for a version of the board with a Microchip SAMD processor to enable Arduino (and CircuitPython) programming.
The maker of Icarus is offering a 3 Month free e-sim with 10 MB of data in select countries. The price at this time is €99,50 (excl. VAT), and the board can be purchased online directly from the Actinus website.
