Ryzen Embedded Powered Tranquil PC Mini Multi Display PC Features 4x 4K DisplayPort Outputs

The Multi-Display Embedded AMD Ryzen Mini PC

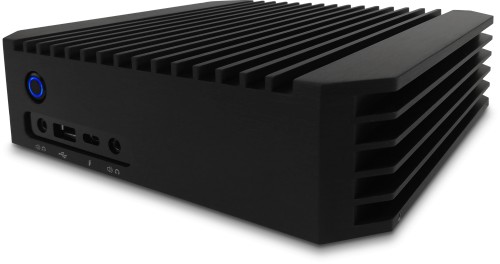

Tranquil’s mini multi-display PC (MMDPC) is a fanless workhorse housed in a full aluminum enclosure, running an embedded AMD Ryzen V1605B APU on the Sapphire Tech FS-FP5V motherboard announced in 2018.

A Fanless Mini PC

The durable housing for the MMDPC is a very artistically designed case that is quiet and functional, offering a back panel I/O that has 4x 4K capable DisplayPort outputs, 2x Ethernet ports, and USB a 3.1 Type C port.  The barebone PC does require your own RAM, M.2 SSD, and operating system.

The MMDPC Was Designed for Efficiency and Durability

The PC is meant for an industrial environment and is fanless for efficient cooling and durability.  Built to withstand the hazards of industry and the environment, the chassis’s fanless design cuts down on dust, debris, and moisture, which usually affect other industrial mini PCs. The removal of the fan and the use of an SSD means the PC has no moving parts, is completely silent,  and offers increased start-up speeds. The enclosure and the secured components resist vibrations and shocks, increasing the expected lifespan of the PC.

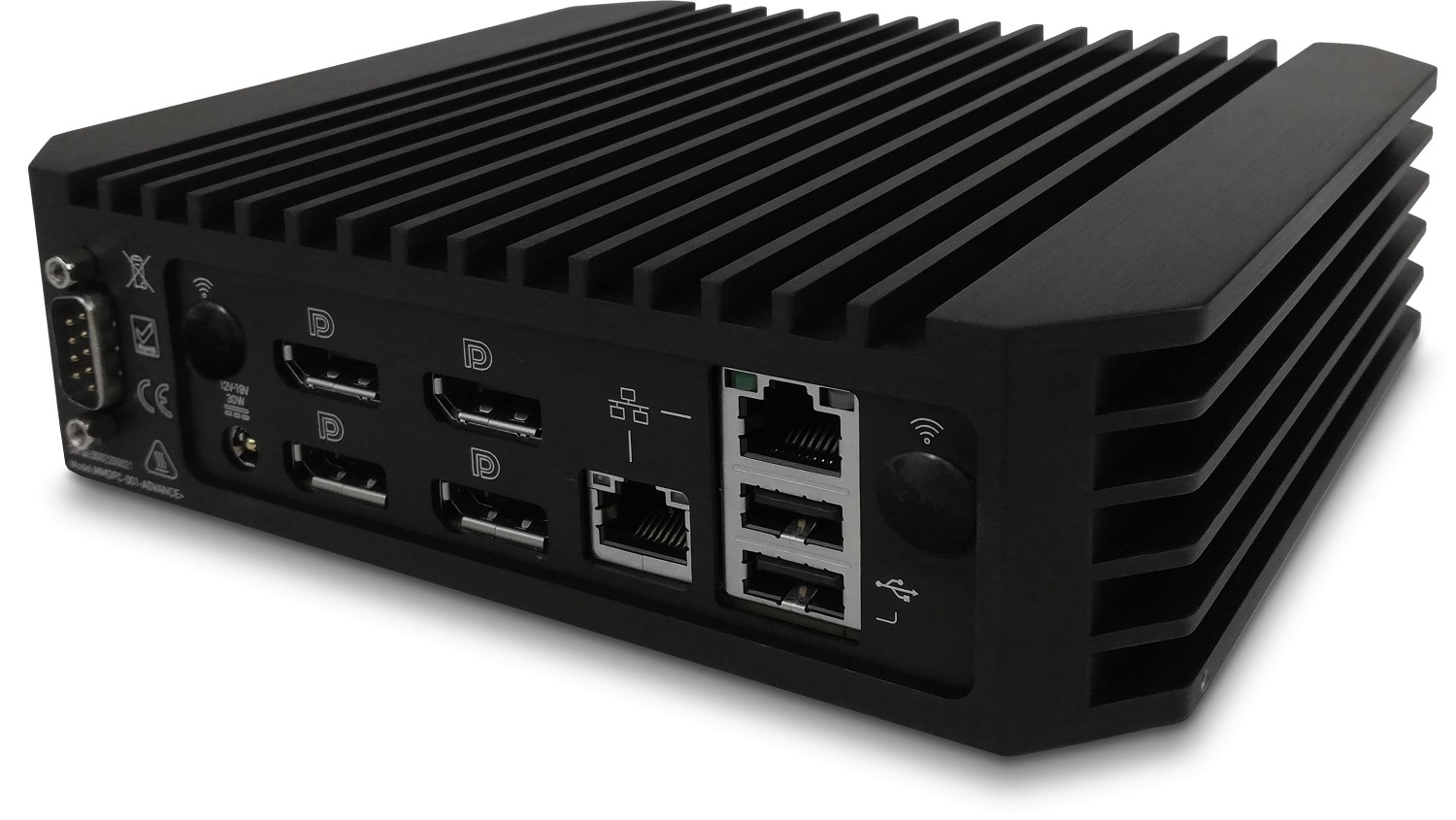

Four DisplayPort Mini PC
Click to Enlarge

Performance and Scalability

The embedded AMD Ryzen Advanced Processing Unit (APU) is incorporated into the Sapphire Tech FS-FP5V motherboard. The APU features four cores and eight threads running at a base speed of 2.0 GHz, with a turbo level of 3.0 GHz. The RAM can be up to 32 GB of SODIMM memory and is easily installed along with a single M.2 SSD from 120 GB to 2 TB.

Higher Level Graphics

The APU carries Vega 8 GPU which shares 2048 MB which offers a significant performance in gaming from a mini PC if that is the choice of the user.

Multi-Display Mini PC Port Assignment

The system comes with ports and controls on the front and back of the unit.

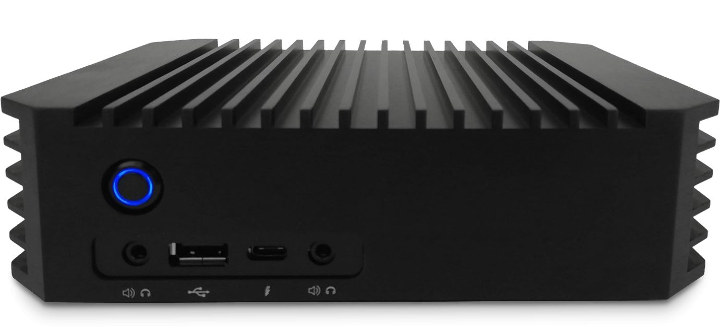

Tranquil PC Mini Multi display PC

On the front is

    • Line-Out
    • Mic-In
    • Power/Reset
    • USB 3.1 Type C

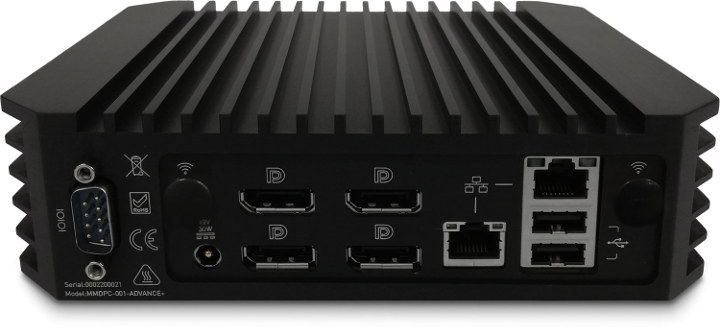

AMD Ryzen 4K DisplayPort Output

On the Back is

    • 2 x Gigabit Ethernet ports (Realtek RTL8111G)
    • RS232 Serial
    • 2x USB 2.0 ports
    • 4x DisplayPort 1.2 outputs
    • 12 ~ 19v DC-In

The unit weighs 1.8 kg.

Optional Dual-band wireless AC 7265 802.11ac Wi-Fi and Bluetooth card

The Tranquil PC mini multi-display PC is designed to be used in various applications and environments –

  • Multi-Display environments

  • Any dry environment

  • High resolution embedded applications
    • electronic gaming machines
    • medical imaging
    • interactive digital signage
    • thin clients
    • Point of Sale terminals
    • any home or office where a small silent pc could be used.

Compatible OS

    • Windows 10 64-bit
    • Linux 32/64-bit

Motherboard Four DisplayPort Outputs

SAPPHIRE-FS-FP5V-Ryzen-Embedded-Motherboard
SAPPHIRE FS-FP5V Motherboard

Pricing and Shipping

The Tranquil PC mini multi-display, fanless barebone case with AMD Ryzen 1605B and 4x DP is base-priced at £626.40 (~$792 US).

The PC is sold by Quiet PC and the Mini Multi-Display PC’s product page has additional information.

Tranquil PC Information

Tranquil PC is a manufacturer of technology devices based in the UK. At the Tranquil PC website, you can find out more about the Mini Multi-Display PC and how to get volume pricing.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

3 Replies to “Ryzen Embedded Powered Tranquil PC Mini Multi Display PC Features 4x 4K DisplayPort Outputs”

  1. This article appears to be a rehash of the article published on Fanless Tech back in Augist, 2019.

    An actual review of its performance would have been more useful.

    It is important to note that the unit can only be used in dry environments and is therefore not suitable for installation on the production line in abattoirs, meat packing plants, fish processing plants, or other high humidity environments.

    1. Nice thing.
      It would be interesting to see how this behaves with a high load.
      Would it still run on max capacity or would there be some thermal throttling

    2. I agree with Richard Crook, a performance test would be nice.
      Especially one that checks 4k (UHD) browser performance (HTML canvas animations 2D and 3D in full screen) while monitoring the FPS and temperature on Linux.
