SiFive Shield is an Open Security Platform for RISC-V Processors

Most Arm processors and Armv8-M microcontrollers support Arm TrustZone security with hardware-enforced isolation built into the CPU. But so far, I had not read anything about equivalent solutions for RISC-V processors.

It turns out Hex-Five’s MultiZone security is one of the RISC-V hardware-security providing an answer to Arm TrustZone, and besides checking out the presentation slides, you can also watch the video filmed at RISC-V Workshop Taiwan last March. But what brought me to write about RISC-V security is SiFive announcement for their Shield open security platform for RISC-V processors

SiFive Shield Overview

SiFive Shield is an open, scalable security platform designed for RISC-V processors.  It supports root-of-trust, customizations, and offers per-memory protected memory regions and multi-core privilege modes.  Combined with SiFive WorldGuard, SiFive Shield enables greater isolation.

SiFive WorldGuard Isolation

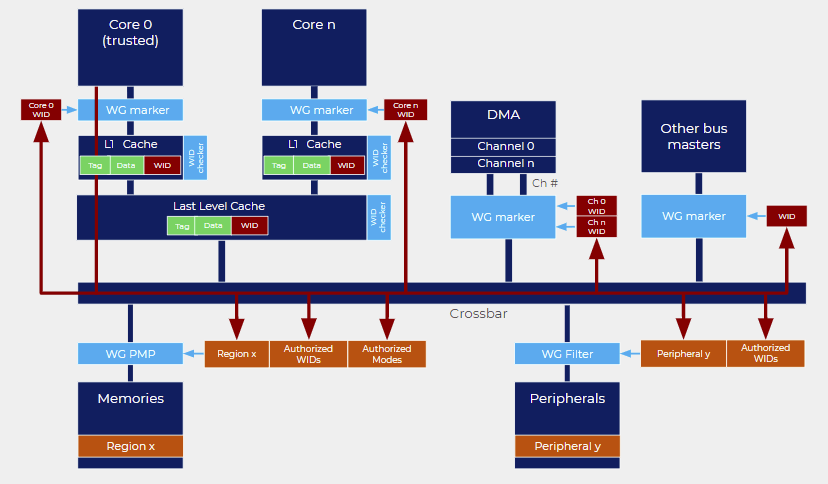

SiFive WorldGuard

SiFive WorldGuard is a fine-grain security model for isolated code execution and data protection. It offers core-driven and process-id driven modes to offer data protection for core, cache, interconnect, peripheral, and memory.

The chart above illustrates how World ID markers are used to isolate processes from each other in multi-core processors.  For single-core processors, such as the ones found in some embedded systems, PID-driven world ID’s can be used to isolate execution between user and machine mode.

Root of Trust

SiFive’s root of trust is based on open specifications and an open-source software platform. SiFive Shield further enables secure storage of keys on-chip with unique IDs which enables key and certificate provisioning at the factory.

Threat Prevention via Memory Protection

The security platform leverages Physical Memory Protection (PMP) and Physical Memory Attributes (PMA) part of RISC-V ISA in order to set limitations and privileges on memory ranges and/or memory-mapped peripherals.


The SiFive Shield architecture also includes crypto hardware such as a true random number generator (TRNG), an AES cryptographic engine, a secure hash crypto-engine with support for SHA-2 and SHA-3 standards, and RSA and ECDSA public-key cryptography is also supported. The crypto-engines are said to be protected against SPA/DPA/EMA attacks.


SiFive Shield is supported by a software platform based on open-source software that includes FreeRTOS and Linux OS operating systems, SiFive Freedom Metal and Freedom SDK toolchains.

SiFive Shield vs “Competitive Solutions”

The company also provided a comparison between Shield and other solutions, but it’s not clear whether this refers to Arm TrustZone or other RISC-V security solutions.

SiFive Shield vs Arm TrustZone
Click to Enlarge

You may find additional details in the press release.
