NVIDIA Jetson Nano Review with 52Pi ICE Tower Cooling Fan – Part 1: Unboxing

If you remember soon after Raspberry Pi 4 launch, there were talks about the SBC overheating under load, and depending on room temperature and workload a heatsink may be needed for the board to perform optimally at all times.

This gave birth to “interesting” solutions such as 52Pi ICE Tower Cooling Fan, an oversized cooling solution for Raspberry Pi 4. It does the job however, and it allows me to overclock Raspberry Pi 4 to 2.0 GHz while keeping the CPU temperature under 55°C in a room at 28°C.

But the latest Raspberry Pi Foundation board is not the only SBC to suffer from overheating, as at least one user noticed the board would just shutdown under load. The solution was to switch from 10W mode to 5W mode, not an ideal solution since it’s also lowering performance.

But 52Pi is coming to the rescue again, as they adapted their ICE tower cooling fan to Jetson Nano SBC. Seeed Studio asked me to review it, but since I do not own a Jetson Nano board it would be challenging. What eventually happened is that I got 52Pi ICE tower cooling fan together with a brand new NVIDIA Jetson Nano developer kit.

Jetson Nano Developer Kit-52Pi ICE Tower Cooling Fan

Jetson Nano Developer Kit Unboxing

The kit just comes with the board and a quick start guide.

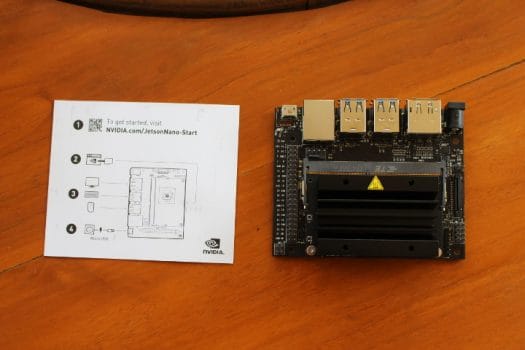

Jetson Nano Unboxing
Click to Enlarge

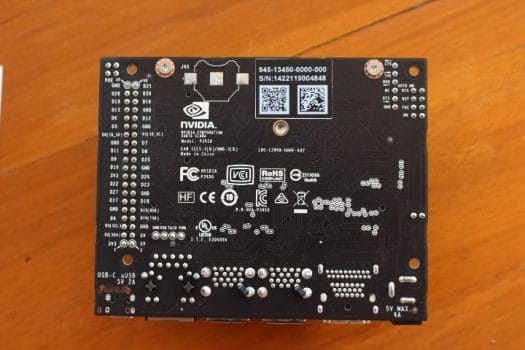

Jetson Nano Baseboard
Click to Enlarge

Just a quick look at the port as a reminder: DC power jack, DisplayPort and HDMI output, four USB 3.0 ports, Gigabit Ethernet, and micro USB device port.

DisplayPort, HDMI, USB, Gigabit Ethernet

It’s a baseboard + system-on-module below, so future upgrades are possible including with the just-announced Jetson Xavier NX, provided you can manage to procure one once it launched next year.

Jetson Baseboard
Click to Enlarge

If we remove the module we can see the microSD card slot and the mechanism to hold the heatsink in place underneath.

Jetson Nano Heatsink Holder MicroSD Card
Click to Enlarge

That’s important as we’ll see below, this will have to be removed.

Unboxing of 52Pi ICE Tower Cooling Fan

52Pi ICE Tower Cooling Fan
Click to Enlarge

Beside the fansink itself, we have thermal pads, and two screwdrivers.

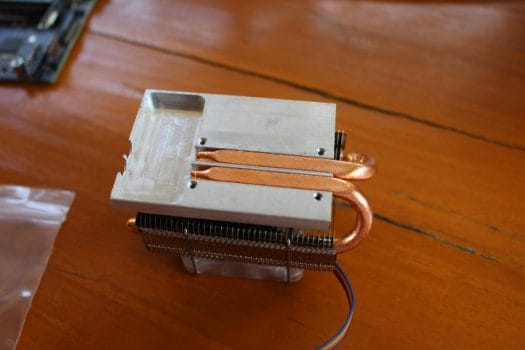

Heatsink Cooling Fan
Click to Enlarge

Underneath we have the four mounting screws compatible with the default Jetson Nano heatsink and two copper pipes for cooling the chips.

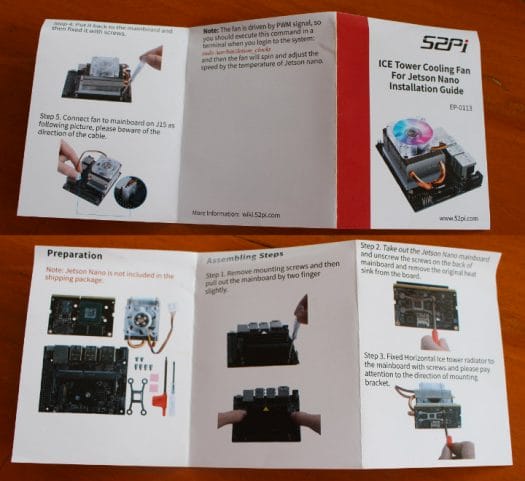

52Pi ICE Tower Cooling Fan User Manual
Click to Enlarge

The user manual explains how to install the cooling fan, and indeed that involves removing the existing heatsink. It’s a shame because that heatsink already has mounting holes for an external fan. So I asked Seeed Studio why not mount a PWM fan like the one provided by Waveshare for $3, and I was told the 52Pi solution can reduce the temperature to around 30 degrees.

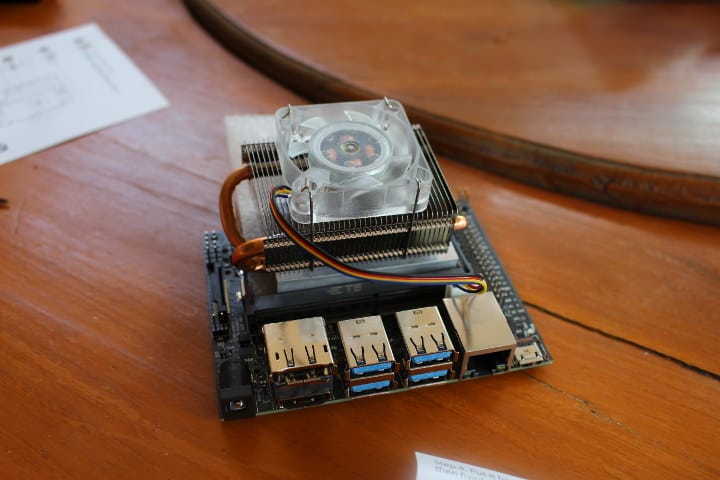

I had plans to install the cooling fan in this part of the review,  but since I’d need to remove the stock heatsink, I’ll test it stock first before removing it.  The photo just shows what it should look like once it’s installed with the cooling solution on top of the module, and the 4-pin cable connected to the PWM header on the board.

Jetson Nano Review with ICE Tower Cooling Fan
Click to Enlarge

I’d like to thank Seeed Studio for sending Jetson Nano developer kit and 52Pi ICE Tower cooling fan which you could buy respectively for $99.00 and $24.90 plus shipping on their store.

Continute reading Testing NVIDIA Jetson Nano Developer Kit with and without Fan.
