Moving Your Arduino Project to a Final Product: 8 Useful Tips

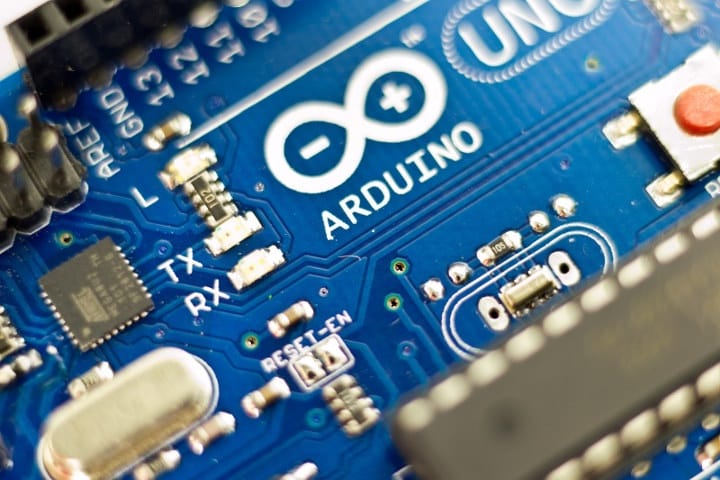

Arduino Project Final Product

This article was written in collaboration with Jonathan Bara from Neoden USA

Using Arduino to create your own tailor-made electronics equipment is a preferred method of thousands of electronics manufacturers worldwide, big and small. Arduino projects effectively start at the software to inform the Arduino microprocessor as to what to do, and then from there, move to the prototyping stage. An Arduino prototype is typically a very rough-looking machine whose only main goal is to prove that the concept at play is functional and worthy of refinement. After this stage, thought then goes into how to create a finished product that’s efficient, properly made, and ready for mainstream use. However, it isn’t always extremely easy to know when your prototype should go to the final design stage, or if there are still some kinks to be worked out.

To make this process easier, here’s a list of ten tips when it comes to moving your Arduino project from work-in-progress to final product:

Can the circuit be simplified?

In any circuit that makes up your machine, look to see if any space can be saved on the PCBs that make it up, or if any of the circuitry is redundant, or otherwise, serving a purpose that could be filled by a smaller or different machine. Things like moving from a network of resistors instead of a series of discrete resistors are a simple example of this. Ensure that every single component used in your final PCB design is necessary and serves a distinct purpose.

Are you ready to go from breadboard to PCB?

Most often, breadboards are used as a proof-of-concept of an Arduino setup. However, final products use PCBs. If you’ve finalized your circuit on a breadboard and everything works how you’d like it to, the next step is to design your own PCB using software like PCB Wizard, and then transferring it to a blank copper clad PCB. The requirements that shape your circuit will end up shaping your PCB design.

Arduino Breadboard Prototype

Can you create your final product?

It will take extra resources to create your finalized Arduino product. Before you can go to the production stage, you need to ensure you have solutions for each part of the manufacturing process. Firstly, make sure that you can both create your own PCBs, and then have your components assembled on it. Access to a pick and place machine makes assembly significantly easier, but according to Neoden USA these pick and place machines typically cost more than several thousand dollars. If you’re willing to do it by hand, that’s an option as well.

Would you be comfortable getting your project certified?

While you might not be immediately thinking about selling your final product, if it’s truly worthy of being put into the production stage, you should be confident that the FCC would certify your finished project if you were to supply it to them. Any worries you’d have about certain aspects of your project will probably surface now, and you can work on them before continuing. This way, you apply standards besides your own as to whether or not your project is completed.

Look for points of failure in your design

The next step is to carefully pour over every aspect of the creation process from the layout of your PCB to the components you’re using. Look for areas that are likely to cause issues in the future if the device is used for extended periods of time. If certain parts are being placed under sufficient stress that you worry about their longevity, that’s a good place to refine before moving on.

Do you know how much space it will occupy?

If you don’t know how much space your overall setup will need within a case, chances are you shouldn’t buy a few dozen cases, and then hope for the best. You should have at least one prototype with no case at all that you can use to figure out the dimensions you’ll need to enclose all of your equipment together in a functional manner.

arduino headers

Are all of your parts rated for the job?

It isn’t uncommon while prototyping to buy components that aren’t exactly ideal. It isn’t necessarily anyone’s fault. The simple fact is that early on in making any individual item, there’s a good chance those creating it didn’t exactly know what they’d need ahead of time. Look at all of the wattage and resistance ratings of your entire project, and see if there are any overpowered or underpowered parts. The goal is that all of your individual components can handle the stress placed upon them from the components surrounding them.

Find a manufacturer

If you plan on making a few dozen of your final product, you should pump the brakes on any big aspirations you have, unless you have a steady supply of all of the components necessary. Find a manufacturer for each portion of your machine that you’ll need (PCBs, components, cases, etc.) and figure out how much equipment you’re willing to buy at this point in time. After that, you’re free to make your orders, and then assemble it all once it arrives.

Final word

As exciting as it is to have gone from a schematic drawing to a functional electronic device, exiting the prototype phase early could have disastrous results on both your product’s functionality and its overall utility in the real world. By diligently ensuring that all aspects of your design are iron-clad, you reduce the risk of something going wrong exponentially. The prototyping stage is often fairly inexpensive because there isn’t as much responsibility on the product being 100% efficient and pretty to look at.

But then, the final production stage requires a significant monetary investment, since you’ll often have to buy parts in bulk that have been machined to a certain precision. Therefore, it’s vital to ensure you have total confidence in what you’ve built and how replicable it is, before deciding to produce your product at a professional standard. If your electronic device satisfies all of the criteria on this list, chances are you’re there. In just a few short weeks, you’ll have a finished product at your fingertips. Congratulations!
