Krescue for Khadas VIM Boards Enables Backup/Restore of eMMC flash, Access to the Terminal, and More

Sometimes things go wrong, and you need a way to recover your system, either by restoring a backup or accessing your system to check it out and hopefully fix the issue.

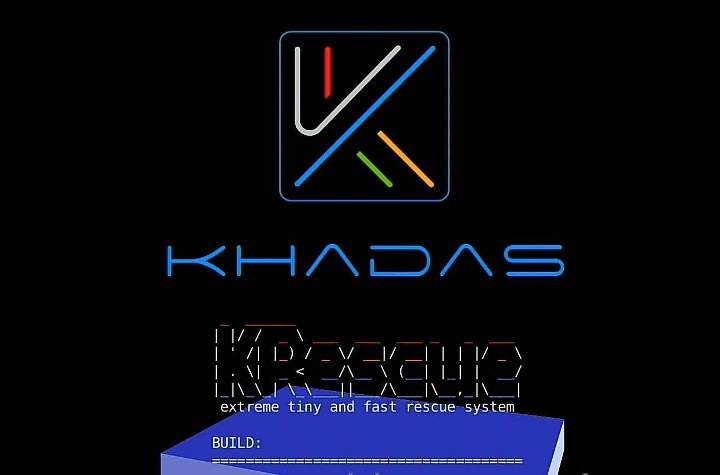

Krescue is a minimal firmware image (21MB compressed) for Khadas VIM boards designed to do just that, and more.

Some of the highlights of Krescue firmware image include:

  • Full eMMC flash dump/backup to Micro SD card, USB, or LAN host.
  • Restore the compressed dump (.img.gz) into an eMMC on the same device or another device
  • Rescue shell for expert users.
  • Shell access via UART, USB network, and Web browser

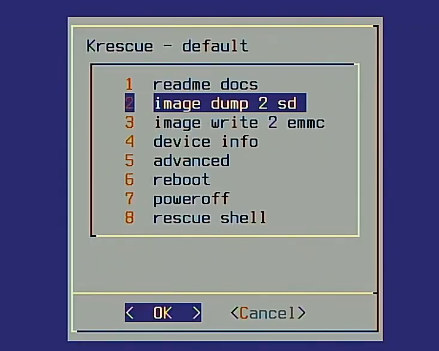

Khadas VIM Krescue

You’ll find Krescue for Khadas VIM1, VIM2, VIM3 and VIM3L on Khadas website which can be flashed to a MicroSD card using balenaEtcher. You can then insert the card into your board, and boot into maskROM mode to access the menu above, and control it with the IR remote control or USB keyboard.

You can see the minimal OS in action in the video below.

If you have any question or issues, you can always ask on Khadas forum
