Allwinner A-Series Processors 2020-2021 Roadmap – Allwinner A33E, A100 and A200 SoCs

We previously discussed Allwinner business units where each can share the same silicon (with different a name) but maintains its own software stacks for different target applications. Allwinner A-Series is the most well-known as Allwinner A10 & A20 were very popular SoC for tablets and TV boxes many years ago.

CNX Software received two slides that originated from Allwinner this morning. The first one shows the different Allwinner processor families, and the second provides a roadmap for A-Series processors for tablets with A33E, A100, and A200 coming this year and next.

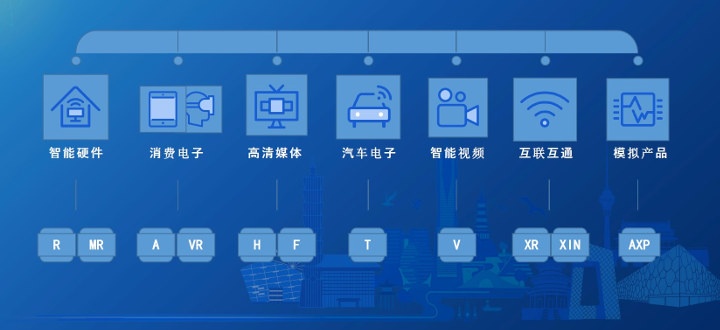

Let’s go through the Allwinner processor families first and their main use case:

  • R-Series and MR-Series – Smart home applications
  • A-Series – Tablets
  • VR-Series – Virtual reality
  • H-Series and F-Series- High-performance applications like multimedia (TV boxes)
  • T-Series- Automotive, I suppose mostly infotainment
  • V-Series – Camera SoCs
  • XR/XIN-Series – Wireless chips like the infamous XR819 WiFi chip.
  • AXP – PMIC (Power Management IC) accompanying the company’s Arm SoCs

Allwinner 2020-2021 Roadmap - A33E, A100 & A200

The second slide shows A33D, A100, and A200 processor coming in 2020-2021. We already mentioned the last time in an earlier roadmap, but there was a dearth of information with only marketing speaking describing A100 with “Experience the leap, flat-panel” and A200 with “AI blessing, computational power”.

Allwinner A33E SoC is an upgrade of Allwinner A33 designed for low-end tablets with the following key features:

  • CPU – Quad-core Cortex-A7 processor
  • VPU – 4K decode/1080p encode
  • Display I/F – MIPI DSI, LVDS, and RGB
  • Camera – ISP, MIPI CSI
  • Audio codec
  • Arm Trustzone

They did not bother including the GPU, but hopefully, Mali-400MP2 has been replaced with a more recent Mali-G31 GPU. The main improve I see is support for 4K video decoding.

Allwinner A100 specifications:

  • CPU – Quad-core Cortex-A53 processor
  • GPU – Imagination PowerVR GE8300
  • Memory I/F – DDR3/4/LPDDR3/4 32-bit
  • VPU – 4K decode/1080p encode
  • Display I/F – MIPI DSI, LVDS, and RGB up to 1080p
  • Camera – ISP, 2x MIPI CSI
  • Audio codec
  • Arm Trustzone

Allwinner A100 should be for mid-range tablets, and potentially offer an update path to Allwinner A64 designs.

Allwinner A200 specifications:

  • CPU – big.LITTLE design (AFAIK, only the second such processor from the company after Allwinner A80)
  • AI Accelerator – 3TOPS NPU
  • VPU – 8K decode, 4K encode
  • Display I/F – V-by-One, eDP, dual MIPI DSI
  • High speed I/O – USB 3.1 and PCIe 3.0

V-by-One is often used in televisions and has two versions the older V-by-One HS supporting  8Kp60 resolution via 32 pairs @ 4 Gbps, or the newer V-by-One US standard capable of handing 8Kp60 with 8 pairs @ 16 Gbps. It’s unclear which version A200 supports. This will be Allwinner’s most powerful processor so far by a wide margin since all their previous 64-bit Arm designs were based on low power Cortex-A53 cores.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard

16 Replies to “Allwinner A-Series Processors 2020-2021 Roadmap – Allwinner A33E, A100 and A200 SoCs”

    1. AKA why on earth are they planning on creating new SoCs based on A53 🙂 OK it might have been the most successful ever ARM core but A55 is more modern and more efficient now.

      1. >why on earth

        Do you throw your car away each time a slightly better model of the same car comes out despite knowing the extra fuel efficiency won’t cover the upfront costs of buying the car?

        1. >Do you throw your car away

          Do vast numbers still buy all those terrible cheap A7 SoC tablets that people hated when China flooded the market with them. No oddly the tablet market dies.
          Just buy a cheap low end 6″ Smartphone A7.

          A car at 10s of thousands money and trash end A7 powered tablet are not a like for like comparision.

          Allwinner has A7, A53 etc licences already.
          https://www.cnx-software.com/2020/02/27/allwinner-h616-tv-box-processor-comes-with-mali-g31-gpu-supports-android-10/

          1. >Allwinner has A7, A53 etc licences already.

            Exactly.. and they have spent the upfront costs on those already and they’ll keep making stuff with them.

          2. If I’m not mistaken, ARM gave integrators the chance to move the current A7 licensing deals to the focused A35 replacement platform at no charge just to move all of them to a newer low-cost platform.

          3. 64 bit is not always faster than 32 bit. If you are in a 32 bit environment, you don’t have any benefit of using 64 bit. So, why should they use a 64 bit processor? We all know that these efficiency numbers are just marketing bullshit. It really depends on the use-case. Some really old designs can be way more efficient than the new designs. ARM also added some bullshit instructions, just to make Javascript faster. What a bullshit. I was a web developer before, but hell, don’t add instructions just for Javascript. Fix fucking Javascript and don’t add “Features” to the processor to make Javascript 20% faster. So in this context, the A7 might be even cheaper to produce, because it doesn’t have all these bullshit features in it.

          4. >If I’m not mistaken, ARM gave integrators the chance to move the current A7 licensing deals

            That doesn’t cover the costs of setting up their kit to actually make anything else.
            AW just take the designs they are already mass producing and update one or two of the connected IP blocks. That’s much easier and cheaper than totally reworking their design to make it work with an A35 instead.

  1. Oh, crud, PowerVR, again? Well, that’s another dead generation of A series chips. I guess they wanted to go back to the ‘success’ of the A83T.

      1. I don’t know as I am unlikely to ever try it. It’s unlikely that HardKernel will make a board with one of these chips.

        1. > It’s unlikely that HardKernel will make a board with one of these chips

          Most probably as unlikely as Allwinner being producer of dirt cheap SoCs to be used with Android being interested in anything Linux?

      1. API support

        OpenGL® ES 1.1, 2.0, 3.0, 3.1, 3.2
        Vulkan® 1.0, 1.1
        OpenCL™ 1.1, 1.2
        Android NN HAL

  2. We currently use the AllWinner A64 SoC with the A53 processor for an appliance application running a 5.0″ MIPI display and USB camera. I’m wondering how long the A64 SoC will be available as well as how long the A53 processor will be available. Should we consider moving to AllWinner’s A100 (also using the A53) or move up to the A50 running the A7 Quad Core?

    1. Based on Olimex experience, as long as you can purchase at least 50,000 pieces, Allwinner will manufacture any of their processors for you, even if it’s phased out. If my memory serves mewell, they did that for the old Allwinner A13 a few years ago.

      About Arm Cortex-A53/A7 cores, they’ll still be around for a long time.
