Grove Beginner Kit for Arduino Features Arduino UNO Compatible Board & Ten Pre-wired Modules

Arduino boards are great to get started with electronics has they offer an ecosystem of expansion modules and libraries, as well as tutorials, that may it easy to get started with almost any projects.

Seeed Studio Grove is a family of standardized modules with 4-pin headers using digital I/O, analog I/O, UART or I2C interfaces and allowing you to easily connect to compatible board such as Seeeduino Lotus board. You still need to connect the Grove module via cables, so Seeed Studio decided to create a big board called Grove Beginner Kit for Arduino that features Seeduino Lotus at the center and ten pre-wired and detachable Grove modules so no cabling is required to get started apart from a USB cable.

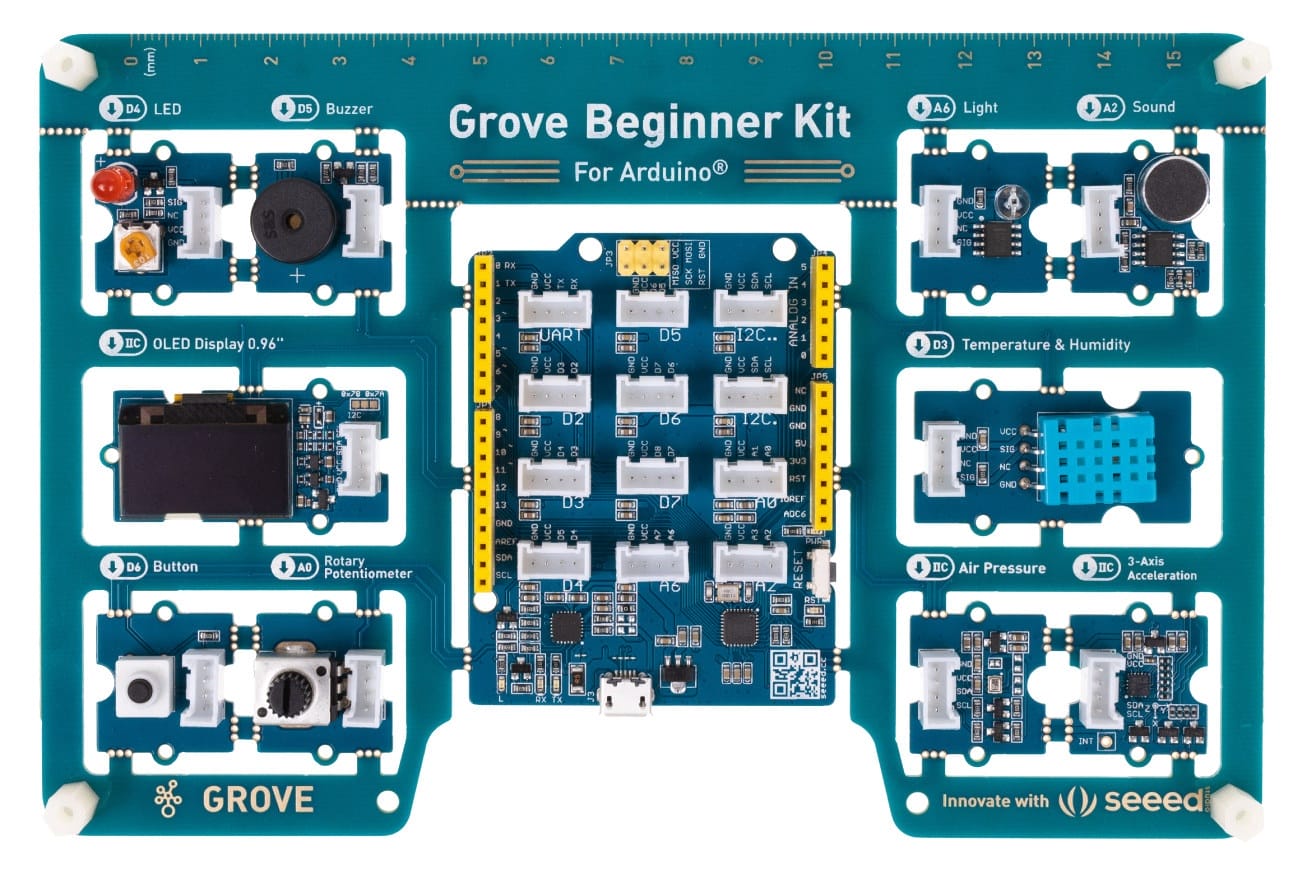

Grove Beginner Kit for ArduinoList of Grove Beginner Kit for Arduino board and modules:

  • Seeeduino Lotus ATmega320p board compatible with Arduino UNO compatible board and featuring 12 Grove connectors
  • 10 pre-wired modules without the requirements for breadboard nor jumper cables
    • Grove LED
    • Grove Buzzer
    • Grove OLED Display 0.96″
    • Grove Button
    • Grove Rotary Potentiometer
    • Grove Light
    • Grove Sound
    • Grove Temperature & Humidity Sensor
    • Grove Air Pressure Sensor
    • Grove 3-Axis Accelerator

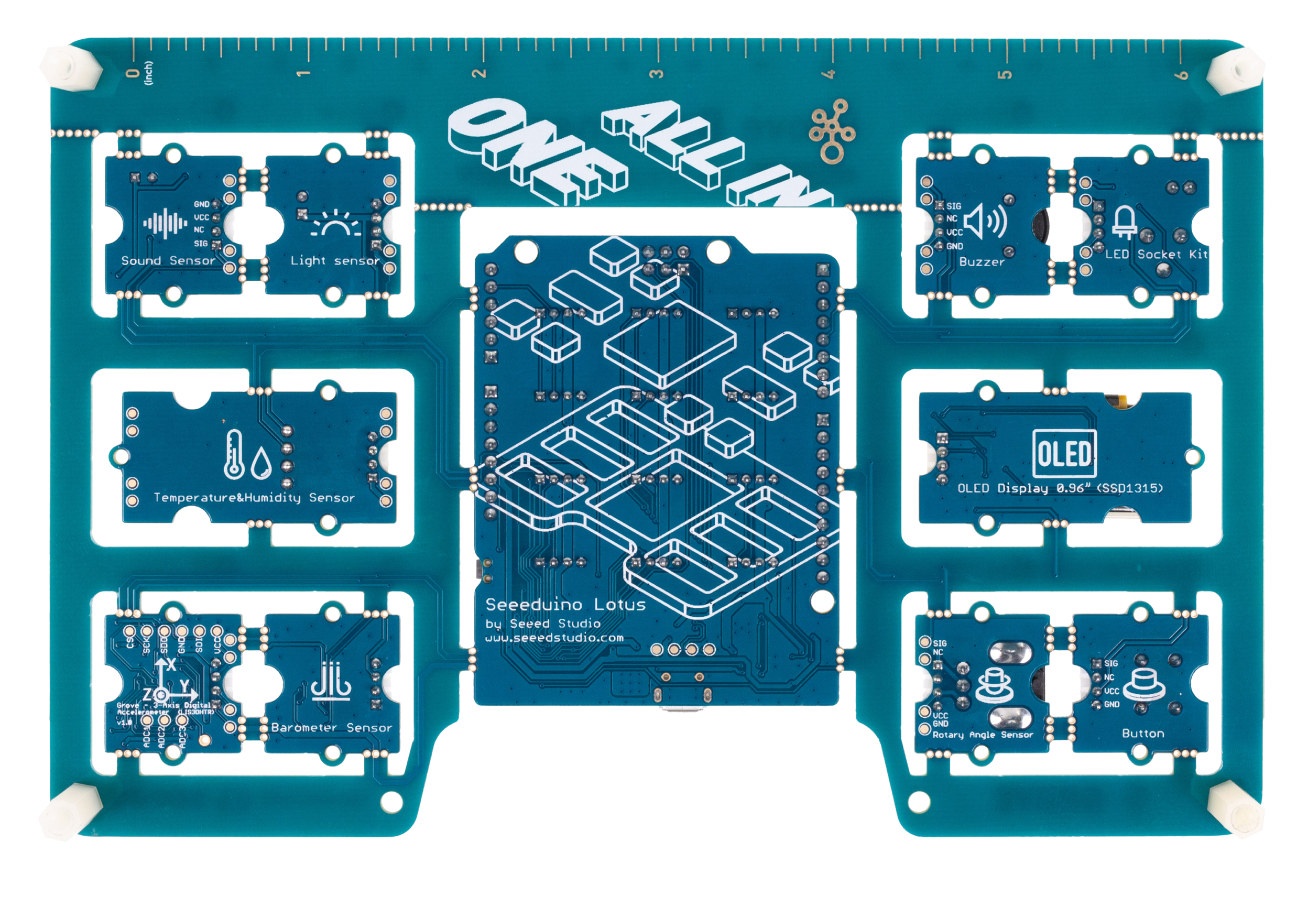

Arduino Board Pre-wired Grove ModulesIf you need even more modules,  you could connect some of the 300 Grove modules to the headers on the Seeduino Lotus board making sure it does not interfere with already pre-wired modules.

Apart from the hardware, Seeed Studio also provides a very detailed Wiki equivalent to a 74-page user manual and including 12 step-by-step tutorials. The schematics are also available.

Grove Beginner Kit for Arduino Package
Click to Enlarge

The kit ships in a nice package that explains the most common Arduino functions, and sells for $19.90 plus shipping. The first 1,000 orders will also get a free 4GB USB drive with supporting materials when using GFB4GB coupon

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
2 Comments
oldest
newest
zoobab
1 year ago

I think Intel did a thing with their Edison Groove kit:

https://www.seeedstudio.com/Grove-Indoor-Environment-Kit-for-Intel-Edison-p-2427.html

Drone
Drone
1 year ago

That blue rectangular thing on the temperature/humidity sensor module is the Chinese made DHT11 which is worse than useless, it lies to you in seemingly random ways, especially with the humidity output. The DHT22 sensor is better, only slightly more expensive, and is of the same form factor. The unanswered question of why they didn’t use the DHT22 instead of the lousy DHT11, is disturbing.
