Fanless Comet Lake mini PC Ships with Intel Core i7 Quad or Hexa-core Processor

Last week, we wrote about XCY X41 mini PC featuring a 10th generation Intel Core i7-10510U Comet Lake processor and cooled with an internal fan. We also pointed out there were other Comet Lake mini PCs on Aliexpress without looking into details yet.

It was brought to our attention that Eglobal had a white-brand fanless Comet Lake mini PC equipped with the same Intel Core i7-10510U quad-core processor or a more powerful Core i7-10710U hexa-core processor.

fanless comet lake mini pc

Eglobal “Noname” mini PC specifications:

  • SoC (one or the other – 10th Gen SoCs shown only)
    • Intel Core i7-10510U quad-core/octa-thread Comet Lake-U processor @ 1.10 GHz / 4.70GHz (Turbo single core) with 8MB cache, 24 EU Intel UHD Graphics 620; 15W TDP (TDP up: 25 W / TDP down: 10 W)
    • Intel Core i7-10710U hexa-core/deca-thread Comet Lake-U processor @ 1.80 GHz / 4.90GHz (Turbo single core) with 12MB cache, 24 EU Intel UHD Graphics 620; 15W TDP (TDP up: 25 W / TDP down: 12.5 W)
  • System Memory – 2x 260-pin SO-DIMM slot for up to 32GB DDR4 2133/2400MHz
  • Storage – mSATA socket, M.2 socket for M.2 2280 NVMe SSD, and 2.5″ SATA drive bay
  • Video Output
    • 1x HDMI up to 4K
    • 1x DisplayPort up to 4K
    • Dual independent display support
  • Audio – 3.5mm microphone jack, 3.5mm headphone jack
  • Connectivity
    • Gigabit Ethernet (RJ45)
    • Dual-band 802.11.b/g/n WiFI  4 up to 300Mbps with 2 antennas
  • USB – 4x USB 3.0, 4x USB 2.0
  • Misc – Power button & LED
  • Power Input – DC 12V-19V~3A/5A
  • Dimensions – 210 x 175 x 44mm (brushed aluminum alloy)
  • Weight – 2kg net???

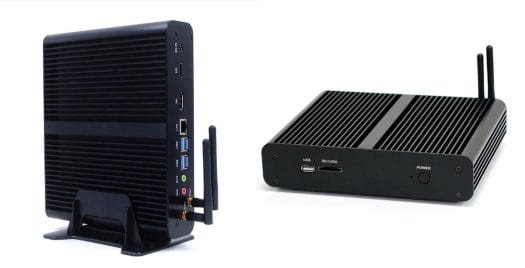

Eglobal fanless mini PCThat’s a bit strange not to include WiFi 5 (802.11ac) in this type of mini PC, so maybe there’s an error in the specifications. Also note that some of the photos (like the one just above and below) show one USB port, one MicroSD, and one power button on the front panel instead of four USB ports and a power button.

The company claims the computer support both Windows 10 and Linux distributions. Besides a power adapter and the two antennas, the mini desktop PC also ships with a vertical stand. VESA mounting is also possible, but as I understand it the bracket is not included.

Fanless Comet Lake Mini PC
Click to Enlarge

The model is offered in various configurations on Aliexpress with the barebone Core i7-10510U model (quad-core) selling for $406.59, and the Core i7-10710U model (hexa-core) going for $457.63 including free DHL shipping.

Via Liliputing
