Silicon Labs Introduces Bluetooth 5.2 BGM220S SiP and BGM220P PCB Module

Silicon Labs has recently announced two hardware modules based on the company’s BG22 secure Bluetooth 5.2 SoC, namely BGM220S System-in-Package (SiP) measuring just 6x6mm, and BGM220P, a slightly larger PCB variant optimized for wireless performance along with a better link budget for greater range.

Both modules can be integrated into products with up to 10-year battery life from a single coin cell. All BGM220S/P variants can support Bluetooth Direction Finding and some of the parts can also handle Bluetooth Mesh Low Power protocol.

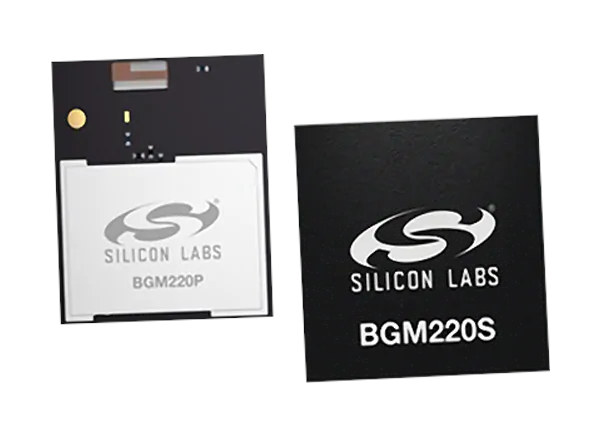

BGM220S-BGM220P & Bluetooth 5.2 SiPSilicon Labs BGM220S/P key features:

  • Wireless SoC – Silicon Labs EFR32BG22  Arm Cortex-M33 with DSP instructions and floating-point unit, up to 512 kB Flash, 32 kB RAM, 2.4 GHz radio with TX power up to 8 dBm, and Embedded Trace Macrocell (ETM) for advanced debugging
  • Supported Protocols
    • Bluetooth Low Energy (Bluetooth 5.2)
    • Direction-finding
    • Bluetooth mesh Low Power Node
  • Various MCU peripherals include ADC, up to 25x GPIOs, DMS, PWM, I2C, UART, PDM (mic), etc… See EFR32BG22 specifications for details.
  • Supply Voltage – 1.8 V to 3.8 V
  • Current Consumption:
    • 4.3 mA RX current at 1 Mbps GFSK
    • 4.8 mA TX current at 0 dBm output power
    • 26 μA/MHz in Active Mode (EM0)
    • 1.40 μA EM2 DeepSleep current (RTCC running from LFXO, Full RAM retention)
  • Dimensions:
    • BGM220S SiP – 6 mm × 6 mm × 1.1 mm
    • BGM220P PCB Module – 12.9 mm x 15.0 mm x 2.2 mm
  • Temperature Range – -40 °C to +105 °C
  • Regulatory Certifications – FCC, CE,IC/ISEDC, MIC/TELEC, KCC

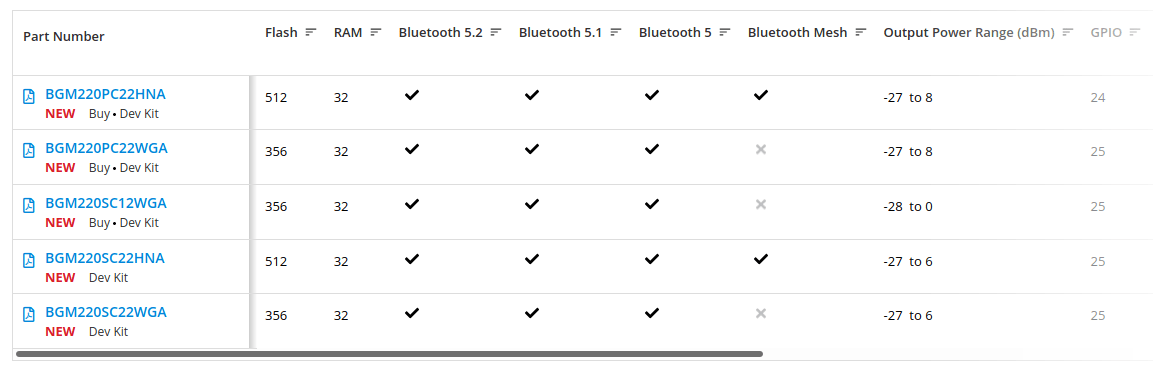

Silabs Bluetooth 5.2 SIP & PCB ModulesThere are currently two BGM220P PCB modules and three BGM220S SiPs that mostly differ in terms of flash capacity, support for Bluetooth Mesh, and output power range.

Silicon Labs explains the SiP modules are ideal for device makers needing the smallest form factor pre-certified Bluetooth Low Energy with little to no RF design or engineering required, while PCB modules offer many of the same benefits as SiP modules, but at a lower cost.

BGM220 Bluetooth Module Wireless Starter KitThe company also offers a $99 BGM220 Bluetooth Module Wireless Starter Kit (SLWSTK6103A) to get started with the new parts.

The new BGM220P/S modules currently available for purchase, including on Mouser with sample price starting at $5.25, while the starter kit can be purchased directly from Silabs. Further information may be found on the product page.
