MorphESP 240 ESP32-S2 board integrates a 1.3-inch color display (Crowdfunding)

MorphESP 240 ESP32-S2 board with color display

We’ve already seen ESP32 platforms with a color display such as M5Stack, but MorphESP 240 is kind of cute with a 1.3-inch color display, features the more recent ESP32-S2 WiFi processor, and supports battery power & charging.

MorphESP 240 specifications:

  • Wireless Module – ESP32-S2-WROOM with Espressif Systems ESP32-S2 single-core 32-bit Xtensa LX7 microprocessor up to 240 MHz with 128 KB ROM, 320 KB SRAM, 16 KB SRAM in RTC, 4MB SPI flash, 802.11 b/g/n 2.4 GHz Wi-Fi connectivity
  • Display – Onboard 1.3-inch ST7789 display with 240 x 240 resolution, connected over SPI
  • USB – 1x Micro USB port for power/charging and programming
  • Expansion – 16-pin and 24-pin headers with GPIO, I2C, UART, SPI, USB, and power signals
  • Misc – WS2812B RGB LED connected to IO16, Reset button, boot mode switch, battery on/off switch
  • Power Supply
    • 5 V to 3.3 V regulator to feed additional modules
    • JST connector for a battery plus a USB charging module
  • Dimensions – 89 x 28 x 6 mm
  • Weight – 20 grams

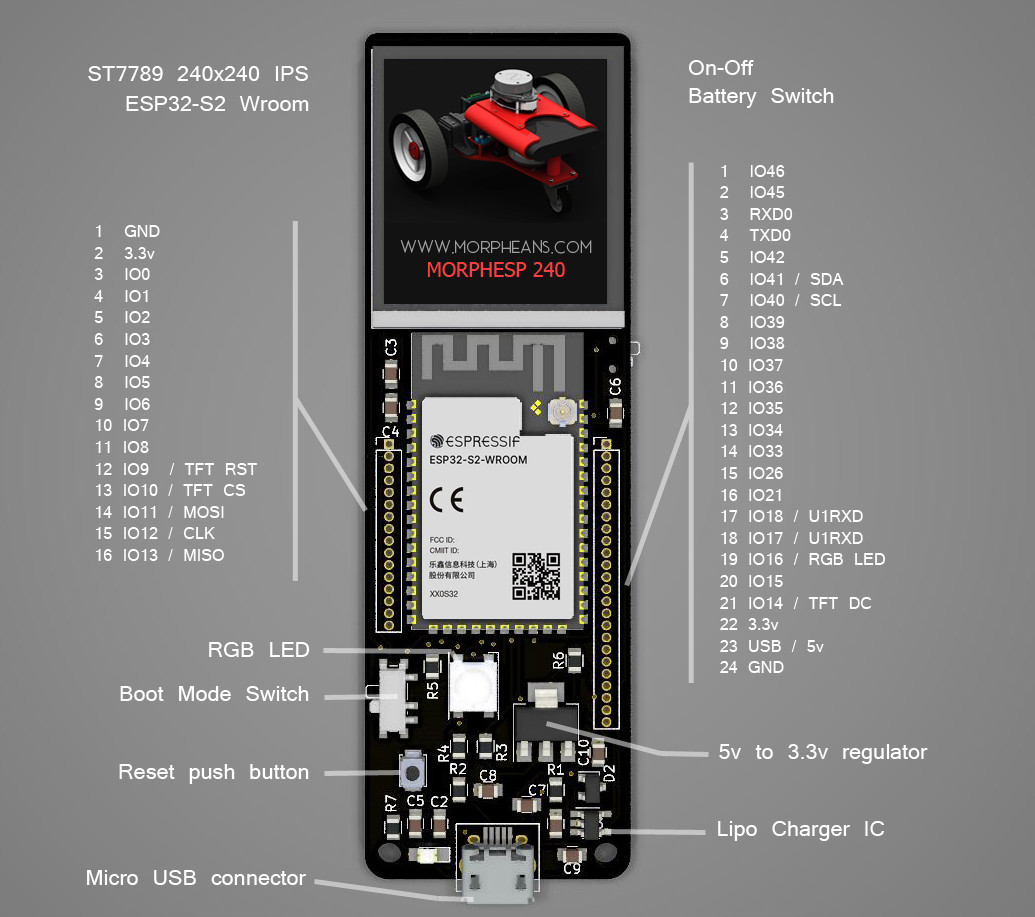

MorphESP 240 pinout diagram

MorphESP 240 can be programmed with the Arduino IDE and CircuitPython, and as an open-source hardware board, the KiCad design files (schematics, PCB layout, etc…), the DXF, STL, and Solidworks files to laser-cut or 3D print the acrylic enclosure, and an Arduino sample code can all be found on Github.

Morpheus expects the board to be used for IoT gateways, sensor networks, test and measurement equipment, wireless input devices, radio communication platforms, media streaming appliances, imaging technologies, and prototyping projects.

While the eventual goal of the company is to sell 10 million units (and clearly achieve world domination!), they’ve set a smaller $9,500 target on Crowd Supply. MorphESP 240 is offered for $39 on the crowdfunding platform. Shipping is free to the US, and $9 to the rest of the world with delivery scheduled for the end of March 2021. They’ve also defined stretch goals with a free breadboard-friendly adapter if they reach 1,000 backers, and a free acrylic enclosure with over 2,000 backers.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
6 Comments
oldest
newest
Frank
Frank
4 years ago

Can we use usb otg feature?

GunterO
GunterO
4 years ago

“features the more recent ESP32-S2 WiFi processor”
A bit misleading if you compare it like that with the M5Stack, because the “older” processor is dual core with 540kb of RAM + 8MB PS RAM, while this is single core with 320kb RAM…
I find the $39 price tag quite steep. For about the same price, you have the M5Stack CORE2 with many more features.

Jon Smirl
4 years ago

This URL for $5.99 price. It is a flash sale. 156 left.

matt
matt
4 years ago

you can find them all day for 8 or 9 $ delivered
