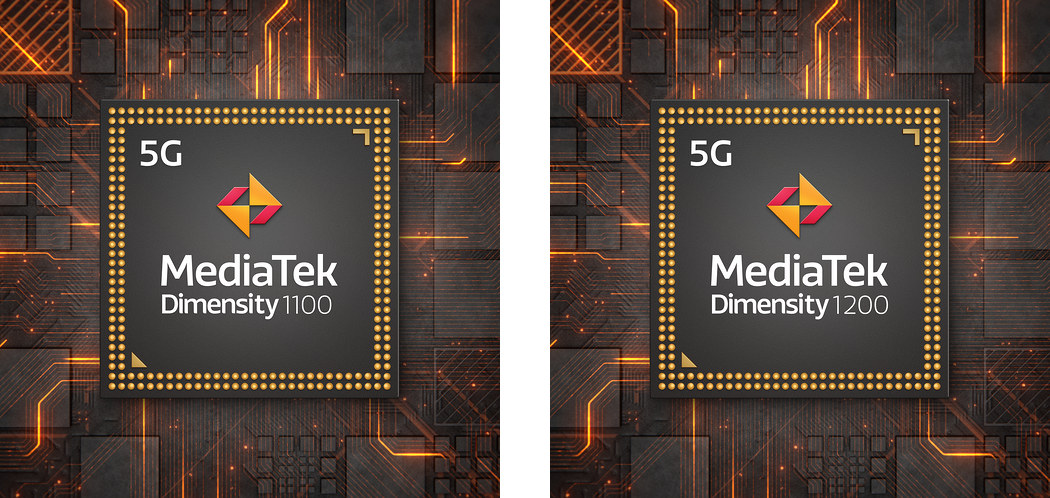

MediaTek has just unveiled not one, but two premium 5G SoC’s with Dimensity 1100 and Dimensity 1200 octa-core processors with the latter including an “Ultra” Arm Cortex-A78 clocked at up to 3GHz.
Both chipsets are manufactured on TSMC’s advanced 6nm process technology, offer 5G connectivity up to 4.7Gbps download speed, and improvement in terms of performance, and camera compared to the earlier Dimensity 1000+ processor.
MediaTek Dimensity 1100 and Dimensity 1200 share many of the same specifications:
- CPU
- DImensity 1100
- 4x Arm Cortex-A78 @ up to 2.6GHz
- 4x Arm Cortex-A55 @ up to 2GHz
- DImensity 1200
- 1x ultra-core Arm Cortex-A78 @ up to 3GHz
- 3x Arm Cortex-A78 cores
- 4x Arm Cortex-A55 cores @ up to 2GHz
- DImensity 1100
- GPU – Arm Mali-G77 MC9
- AI accelerator – Six-core MediaTek APU 3.0
- VPU
- Video Playback – H.264, H.265 / HEVC, VP-9, AV1
- Video Encoding – H.264, H.265 / HEVC
- Memory – Up to 16GB LPDDR4x @ 4266 Mbps
- Storage – UFS 3.1
- Display – Up to 2520 x 1080 @ 144Hz (Dimensity 1100) or @ 168 Hz (Dimensity 1200)
- Camera
- Dimensity 1100 – Up to 32MP + 16MP, 108MP
-
Dimensity 1200 – Up to 32MP + 16MP, 200MP
-
Resolution up to 3840 x 2160
- Camera Features – HDR-ISP (3+2) / Video HDR / Video NR / Video Bokeh / Video EIS / AI-Shutter / AI-AE / AI-AF / AI-AWB / AI-NR HDR / AI-HDR / AI-FD
- Connectivity
- Cellular
- 2G / 3G / 4G / 5G Multi-Mode modem
- Technologies – 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA), CDMA2000 1x/EVDO Rev. A (SRLTE), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA
- Functions – SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 200 MHz bandwidth, 4×4 MIMO, 256QAM NR UL 2CC, 2×2 MIMO, 256QAM VoNR / EPS fallback
- Peak Speed – Download:4.7Gbps; upload: 2.5Gbps
- WiFi 6 (802.11 a/b/g/n/ac/ax) with 2T2R antenna
- Bluetooth 5.2, ready for Bluetooth LE Audio
- GNSS – GPS L1CA+L5 / BeiDou B1I+ B2a / Glonass L1OF / Galileo E1 + E5a / QZSS L1CA+ L5 / NavIC
- FM Radio
- Cellular
The first devices with the new MediaTek Dimensity 1200 and 1100 chipsets are expected to hit the market at the end of Q1 and/or beginning of Q2 this year from several OEMs including Xiaomi, Vivo, OPPO, and Realme. Additional information about the new processor may be found on MediaTek 5G product page.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
What does Arm Mali-G77, MC9 mean?
It means it’s a 9-core GPU, but I can’t find the difference between MC9 and MP9.
I guess both are the same. ARM talks about “core”.
https://developer.arm.com/ip-products/graphics-and-multimedia/mali-gpus/mali-g77-gpu
Thank you both for the reply.
Also CNX will you be covering the Android ALLDOCUBE IPLAY 40 which has 8gb ram and A75, A55 cores at 12nm? On banggood @ $197.
Pity you cannot get a review sample.
It’s a tablet. Not sure I’ll cover it, but maybe interesting as there aren’t that many UniSOC powered tablets. There’s no problem getting Android tablets through customs, only Android TV boxes cause troubles.
the problem with tablets nowadays is the Display, There no 2.5K resolution tablets anymore, 2000*1920 simply is not enough for such big screens, I don’t know the exact problem behind that maybe CNXSOFT could invistigate this matter
2000×1200 at 10.4 inches is not enough? As a trash 1366×768 user (11.6, 15.6 inches, and a 720p TV), I chuckle.
My interest is aroused by the Alldocube iPlay 40.
Alldocube iPlay 40 is just 2000×1200, there is only 2.5K screen in OLED with some pricey tablets like LENOVO XIAOXIN, there is no 2.5K LCD screen for tablets anymore, I came to think that it is a supply issue, maybe JDI AUO and LG Display doesn’t manufacture them anymore
