Beelink GTI 11 Tiger Lake mini PC offers triple display output, dual 2.5GbE

Beelink GTI 11 mini PC is offered with either Intel Core i5-1135G7 or Core i7-1165G7 Tiger Lake processor, coupled with 16GB or 32GB DDR4, a 500 GB NVMe SSD, and provides triple display support via HDMI, DisplayPort, and USB-C interfaces, two 2.5GbE ports, and more.

Beelink first teased the board in June with an upcoming crowdfunding campaign that never happened, but the Tiger Lake mini PC is now available on Banggood for $609.99 (Core i5, 16GB RAM) and $819.99 (Core i7, 32GB RAM). Note those are promotional prices valid until December 28, and initially, I was shown $809.99 and $1,089.99 respectively with an address in Thailand. Switching to a US address lowered the price, so the promotion depends on the warehouse, and YMMV.

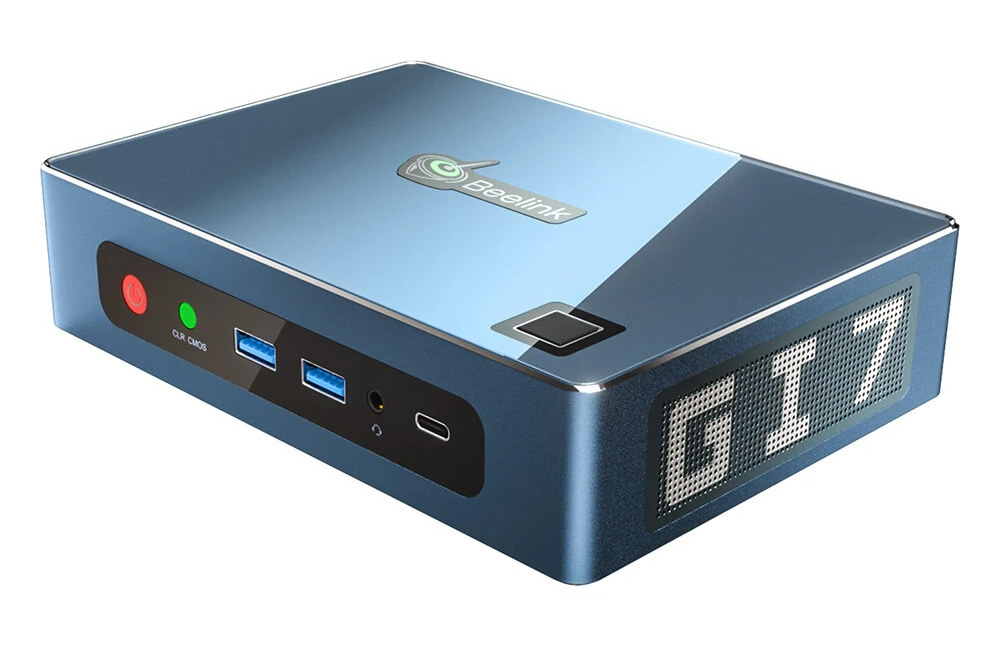

Beelink GTI 11Beelink GTI 11 mini PC specifications:

  • Tiger Lake SoC (one or the other)
    • Intel Core i5-1135G7 quad-core/8-thread processor @ up to 2.4GHz / 4.2GHz (Turbo) with 8MB Smart Cache, 80EU Intel Iris Xe Graphics; TDP: 12 to 28W
    • Intel Core i7-1165G7 quad-core/8-thread processor @ up to 2.8 GHz / 4.7 GHz (Turbo) with 12MB Smart Cache, 96EU Intel Iris Xe Graphics; TDP: 12 to 28W
  • System Memory – 16GB DDR4 3200MHz (Core i5) or 32GB (Core i7), upgradeable up to 64GB
  • Storage
    • 500GB M.2 2280 NVME SSD, 2200MB/S (Kingston)
    • M.2 2280 SATA socket
    • Support for 2.5-inch SATA drive up to 7mm thick
  • Video Output
    • HDMI 2.0 port up to 4Kp60
    • DisplayPort port up to 8Kp60
    • DisplayPort via USB-C port up to 8Kp60
  • Audio – 3.5mm audio (headphone+mic) jack, digital audio via HDMI, DP
  •  Networking
    • Dual 2.5GbE RJ45 ports via Intel I225LV
    • WiFi 6 (802.11ax) and Bluetooth 5.0
  • USB – 4x USB 3.0 ports, 2x USB 2.0 ports, 1x USB Type-C port
  • Misc
    • Power button and LED
    • Fingerprint scanner for identification, 0.5s quick unlock
    • RTC plus battery
    • BIOS with WoL and “auto power on” support
  • Power Supply – 19V/3A (57W) via DC jack
  • Dimensions – 168 x 120 x 39mm
  • Temperature Range – Operating: -10°C–45°C, storage: -20°C–60°C

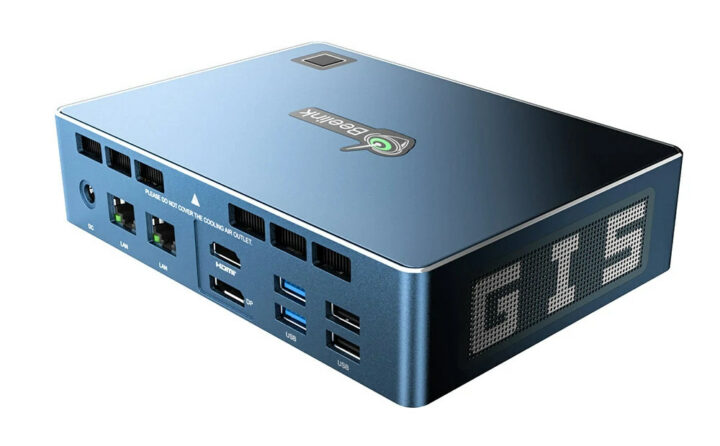

Tiger Lake Mini PC dual 2.5GbE HDMI, DisplayPortBeelink lists Windows 10 and Windows 11 as supported operating systems, but recent versions of Linux should work too. Beelink GTI 11 mini PC ships with a wall-mounting bracket, 20cm and 1m HDMI cables, a power adapter, and a user manual.

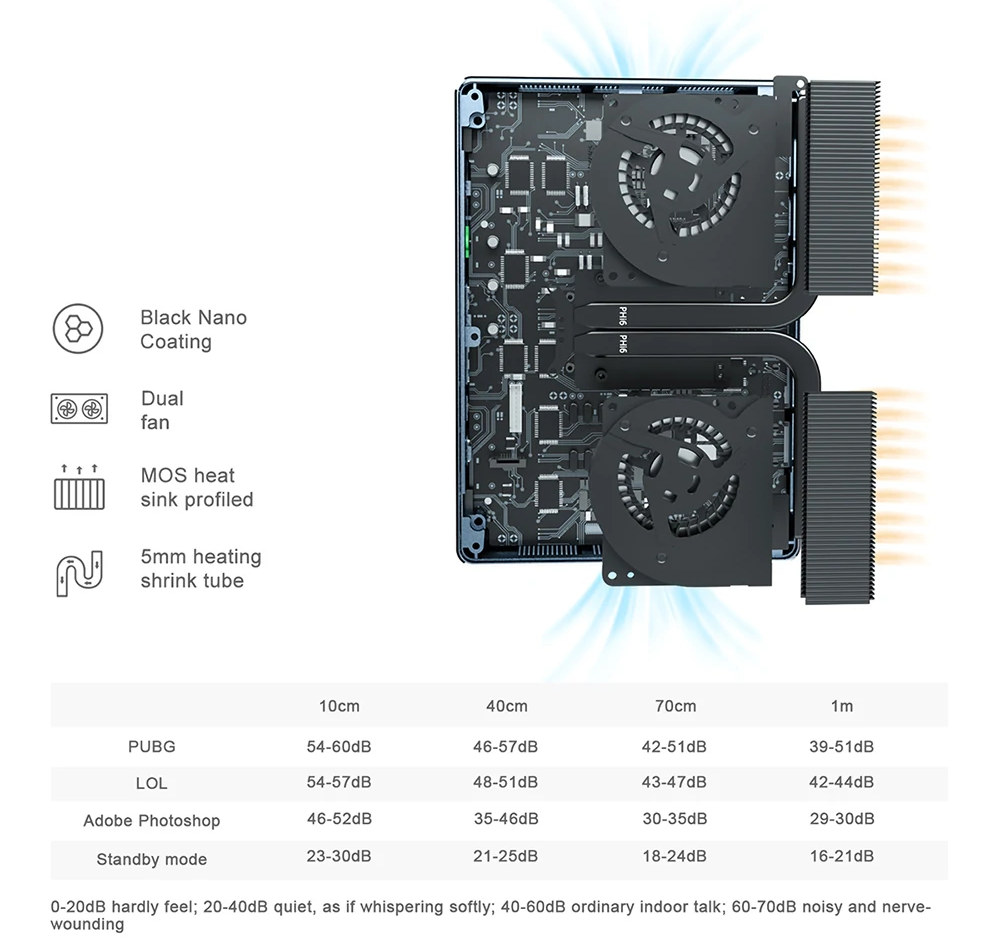

Cooling is achieved with a dual-fan system that is said to be “quiet” and provide “strong heat dissipation”.  Beelink measured noise under various loads and distances, and it will be clearly audible while playing games if placed on a desk at around one meter from the user.

dual fan cooling systemVia Liliputing, Minimachines
