Add 10GbE to your system with an M.2 2280 module

It’s now possible to add 10GbE through an M.2 socket thanks to Innodisk EGPL-T101 M.2 2280 module based on Marvell AQtion Ethernet controller offering support for 10Gbps, 5Gbps, 2.5Gbps, 1000M, and 100M/10M LAN speeds.

The solution is comprised of three parts with the M.2 module equipped with a heatsink to cool the Ethernet controller, a flexible high-speed cable, and a daughter board with an RJ45 connector and two threads for mounting to a chassis.

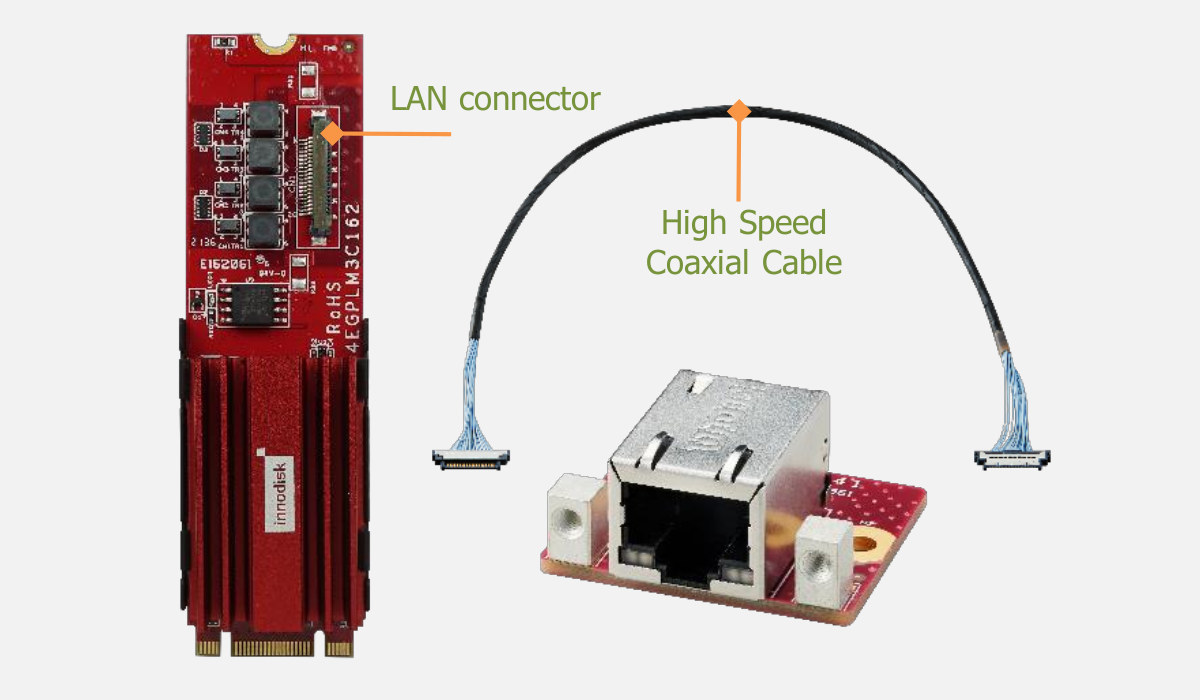

EGPL-T101 10GbE M2 module

Innodisk EGPL-T101 specifications:

  • Ethernet controller – Marvell AQtion likely AQC113 “single-port 6speed, 10Gbps PCIe to Multi-Gig Ethernet controller with MAC and PHY with I-grade support”
  • M.2 input interface – PCI Express 3.0 x 2
  • RJ45 connector for up to 10GbE
  • Power Consumption – Up to 2.5W (3.3V, 762mA)
  • Dimensions (W x L x H/mm)
    • M.2 Board: 22 x 80 x 14.5 mm (M.2 2280 form factor)
    • Daughter Board: 31.75 x 28 x 17.7 mm
  • Temperature Range – Operation: 0°C ~ +55°C; Storage: -55°C ~ +95°C
  • Vibration – 5G @7~2000Hz
  • Shock – 50G @ 0.5ms
  • Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

Innodisk provides drivers for Windows 10 or greater, and Linux distributions with kernel 3.10 or later. The company warns LRO (Large Receive Offload) is enabled by default in the drivers to achieves the lowest CPU utilization, but it should be disabled if the user needs ip forwarding or bridging,

Innodisk says the EGPL-T101 is the first M.2 2280-to-single 10GbE Base-T Ethernet module, and also happens to be the world’s smallest 10GbE expansion solution so far. Applications that may make use of the module include machine vision in industrial applications, high throughput network data transmission, high-resolution imaging for surveillance, and casino gaming machines.

Mass production of the EGPL-T101 M.2 to 10GbE module is said to have started in December 2021, and it’s already available in some shops for $166, although we are told to contact the distributor for “availability and current pricing”. More details, including Windows and Linux drivers, can be found on the product page.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
16 Comments
oldest
newest
c2r
c2r
4 months ago

I see an interesting typo at the beginning of that spec list.

gion
gion
4 months ago

Ethernet contronller”

Eazy Red
Eazy Red
4 months ago

they fixed it lol

Willy
4 months ago

I’ve been dreaming about such a thing for a long time! Sure it’s expensive but can be reasonable when trying to upgrade an existing system, typically turn your lab to 10G, or upgrade your local file server that has no spare slot due to a Mini-ITX form factor. Even some SBCs such as the ClearFog could benefit from this, though with a lower speed (PCIe 2 x1 should max out around 4 Gbps).

fossxplorer
4 months ago

Me too! Although the price set me off.
I guess i’d wait until alternatives appear with lower prices at Ali Express!

tkaiser
tkaiser
4 months ago

> Marvell AQtion likely AQC113

Based on consumption numbers I would agree that it’s AQC113 and not AQC107 here. According to STH the chip also performs well in a Gen4 x1 config so this card is also more future-proof compared to AQC107 🙂

tkaiser
tkaiser
4 months ago

Ah, you’re right. I wasn’t aware of the AQC107 not containing a PHY for 10BASE-T.

TLS
TLS
4 months ago

They have different SKUs for different interfaces, so it might not be quite that simple.

Andreas
4 months ago

Wondering if this would be compatible with any USB M.2 PCI Express adapter that supports USB 3.2 Gen 2 (formerly known as USB 3.1 Gen 2)?

There look to be many USB M.2 enclosures out there that claim to support USB 3.2 but most do not support PCI Express.

Been looking for a 10GbE USB 3.2 adapter but can only find 10GbE Thunderbolt adapters or 5GbE USB 3.0 adapters which only do close to 5Gbps, and obviously need USB 3.2 to get close to 10 Gigabit per second bandwidth.

TLS
TLS
4 months ago

You’ll have to wait for USB4…

tkaiser
tkaiser
4 months ago

> many USB M.2 enclosures out there that claim to support USB 3.2 but most do not support PCI Express

None supports PCIe since USB and PCIe are something entirely different though some USB enclosures contain an USB-to-NVMe bridge but this is just a protocol converter for SSDs and bottlenecks those significantly.

PCIe via USB-C (the cable/connector) is called Thunderbolt and has nothing to do with USB (as protocol). Once a host is certified as ‘USB4 compliant’ it must be capable to avoid USB on the wire and use Thunderbolt/PCIe directly.

David Cooley
David Cooley
4 months ago

In the diagram, that is not a “coax cable”. A coax cable is a single conductor then the insulation “dielectric”, and then a surrounding shield and the outer plastic jacket. The cable in the diagram is a “shielded” cable. It has multiple conductors so is not “coax”. Don’t think I’d trust an electronics product from a company that doesn’t even know what cable their product uses.

Willy
4 months ago

I noticed as well, I guess it’s just shielded twisted pairs rolled together. I suspect that cable is quite fragile and the plug needs to be installed once for all and not left hanging.

St. X
St. X
4 months ago

Are they putting the 4 pairs each into their own tiny coax cable? The picture appears to show even more than Cat-6 — is that 8 pairs?

Or are they just abusing the term “coax cable” to mean “not a ribbon cable”?

domih
domih
3 months ago

Low-cost alternative today:

https://www.ebay.com/sch/i.html?_sacat=0&_nkw=m2+to+pci-e+4x+riser

Plus whatever 10GbE card you want (RJ-45 or SFP+). Example for SFP+:

https://www.ebay.com/sch/i.html?_nkw=SFN5152F&_sacat=0 (*)

Total cost per system around $25 + $15 (SFP+ cable) = $40. Add switch.

(*) As long as you don’t care about the lack of 2.5 or 5 GbE autonegotiation in the “old” SolarFlare cards. Otherwise go with a modern RJ-45 card that will support it, but these cards are also $$$ for now. Cables: https://www.ebay.com/sch/i.html?&_nkw=10g+3m+sfp+dac+cable+cisco
