Hybrid Time-of-Flight (ToF) 3D range image sensor offers up to 30-meter range

We’ve written about STMicro Time-of-Flight ranging sensors several times over the year, including the latest VL53L8 which offers a range of up to 4 meters. But if your application would benefit from a more extended range, Toppan and Brookman Technology have designed a three-dimensional range image sensor (3D sensor) capable of measuring distances from one to 30 meters. using a hybrid Time-of-Flight (ToF) method.

That method, proposed by Professor Shoji Kawahito of Shizuoka University, is a new sensing technology combining the indirect ToF method of measuring distance by phase difference and the direct ToF methodology for measurement based on time differences. The hybrid method is said to be more tolerant to ambient light noise than the conventional indirect ToF method, especially outdoors.

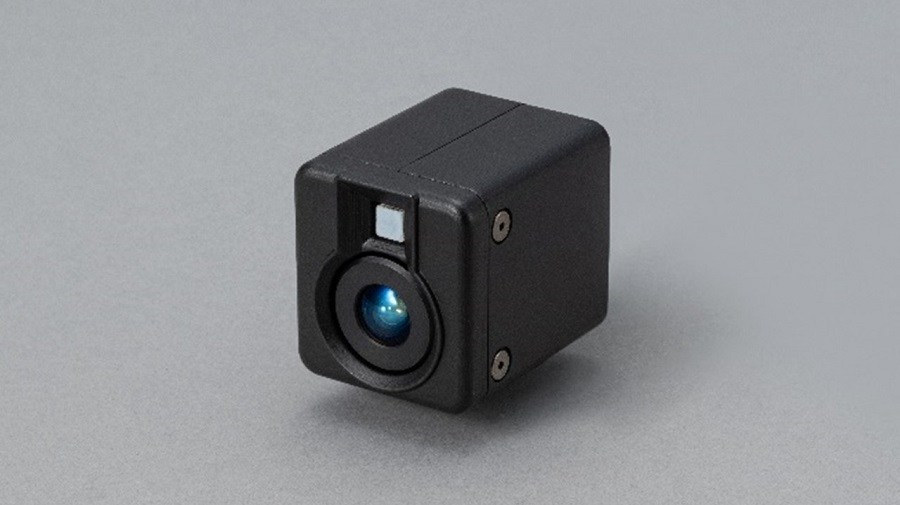

ToF sensor 30-meter range

Highlights of the hybrid ToF sensor:

  • Measurement of distances up to 30 meters, or over 5x further than conventional models
  • Noise-canceling function to facilitate outdoor measurement. Each pixel is equipped with a function to eliminate components of external light even when illuminance is in the range of 100,000 lux, equivalent to mid-summer daylight (the range would be limited to around 20 meters in that case).
  • High-speed imaging of 120 frames per second
  • Simultaneous operation of up to 256 cameras thanks to a control technique to cancel out signals emitted from other cameras by treating them as ambient light.

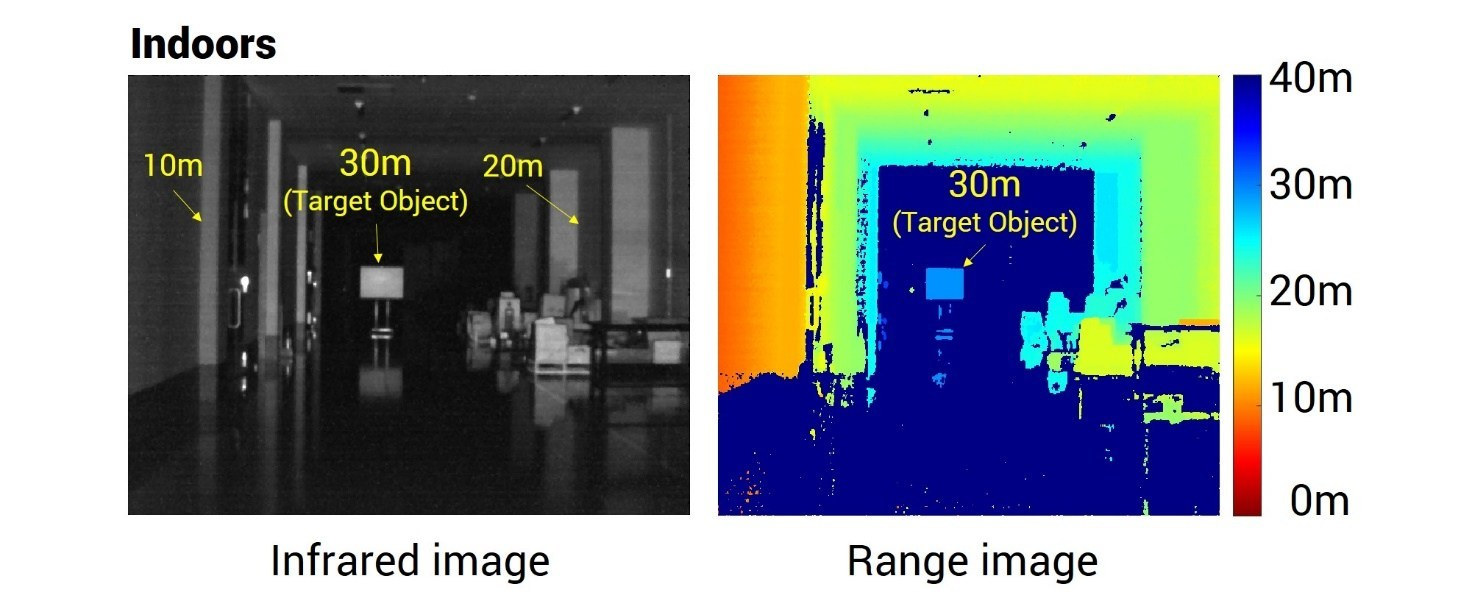

infrared range images
Indoors distance measurement
Hybrid ToF sensor outdoors measurement
Outdoors distance measurements

The new ToF sensor will mostly be useful for autonomous drones and robot carriers, but may also find its way into smartphones and game consoles. Besides the more extended range, the hybrid ToF sensor solves the light tolerance issues that impact indirect ToF sensors, and Toppan expects the new technology to drive further adoption into robots operating outdoors.

The details of this new type of ToF sensor technology were presented on June 15 by Toppan, Brookman Technology, and Shizuoka University at the 2022 IEEE Symposium on VLSI Technology & Circuits, and it’s not quite available just yet with samples expected by December this year, and commercial devices slated for Q4 2023. Additional information may be found in the press release.

Thanks to TLS for the tip.
