Iono RP D16 industrial IO module features Raspberry Pi RP2040 MCU

Sfera Labs has launched another Raspberry Pi RP2040-based hardware platform with the Iono RP D16 industrial IO module following the Exo Sense RP multi-sensor module we covered last month.

The Iono RP D16 module provides sixteen digital 24V I/O lines, an RS-485 serial interface, a wide range 12-28V power supply input, and its DIN-rail case enables installation in electrical cabinets and automation control systems.

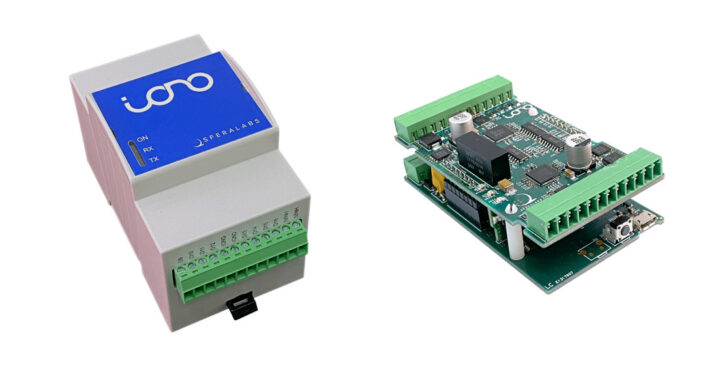

Iono RP D16 industrial IO module Raspberry Pi RP2040

Iono RP D16 specifications:

  • MCU – Raspberry Pi RP2040 dual-core Arm Cortex-M0+ microcontroller @ 133MHz with 264kB on-chip SRAM
  • Storage – 16MB SPI flash
  • Inputs/Outputs via terminal blocks
    • Up to 16x 24V 640mA outputs driven by high-side switches that can also be configured as push-pull drivers for high-speed switching (via MAX14912 chips)
    • Up to 16x 24V IEC 61131-2 compliant current-sinking inputs (via MAX22190 chips)
    • 4x TTL level I/Os (1-Wire, I2C, Wiegand support)
  • Serial  –  RS-485 interface to the RP2040 serial lines via terminal block with electrostatic discharge protection
  • USB – 1x micro USB port for programming/debugging
  • Options – Real-time clock with backup battery, secure element chip, earthquake sensor module
  • Power Supply
    • 12 to 28 V DC power supply input via terminal block, with surge and reverse polarity protection and 1.1A resettable fuse
    • 5V 400mA auxiliary voltage output via terminal block, with overcurrent and reverse current protection
  • Dimensions – 3 module DIN-rail case
  • Certifications – CE, FCC, and IC compliant

The company recommends C/C++ or MicroPython for developing firmware for the industrial RP2040 IO module using resources provided by Raspberry Pi Trading. They also have a Github repository for Arduino, C/C++, and MicroPython samples, but everything is shown as “coming soon”, meaning the repository is currently empty…

Iono RP D16 IO module can be purchased for 276 Euros and up excluding tax on the company’s online store. Additional information may also be found in the announcement.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
MiPl
MiPl
1 year ago

I just wonder what is the purpose of such devices (this one an similar). They have the typical industrial case and can be mounted on the DIN rail, but nothing more. The price range is already similar to the more robust Programmable Logic Controllers… The PLCs comes with the all the possible certificates etc. In case such product the one has to do all on its own. Is it flexibility? But the different PLC on the market can be also programmed with more modern languages (not only ladder logic). In addition PLC usually have long live span and after ?… Read more »

ACSJR
ACSJR
1 year ago

Totally agree with you. Just can’t imagine why use this and similar having once used something like Rockwell Micro 800 series and stuff… Moreover: ladder logic is quite expressive, and some no IEC standards like specially 984LL from Modicon/Schneider is even more expressive than IEC ladder, allowing indirect address or pointer technics for aligned or not memory registers, for example. Entered here expecting a budget price that could eventually justify using this, but… Best regards.

Andy
Andy
1 year ago

Appreciate the competition. Standard PLCs are not affordable to everyone, especially when it comes to software licenses.
These platforms are ideal for people that want to take responsibility for what they are doing. I have seen many poorly documentes jobs out there with the big products where the “programmers” relied on graphical tools and skipped documentation. With a little bit of passion for the job, we should love these devices.

Bhairav gund
Bhairav gund
1 year ago

What price
And wireing day garm
