HiPo batteryless NFC-powered 3.52-inch e-Paper display also comes with an SPI interface (Crowdfunding)

HiPo is a 3.52-inch black and white e-Paper Display that can be updated through NFC without the need for external power and offers an alternative to the 4.2-inch and 7.5-inch NFC-powered e-Paper displays from Wareshare that also operate without battery only using the data and power from NFC to update the image.

Alternatively, Guangdong SID Technology’s HiPo display can also be connected to an SPI adapter board allowing the users to connect it to an STM32 board provided by the company, but it could also be used with Arduino boards, ESP8266 & ESP32 hardware platforms, Raspberry Pi SBCs and MCU boards, or any platform with an SPI interface.

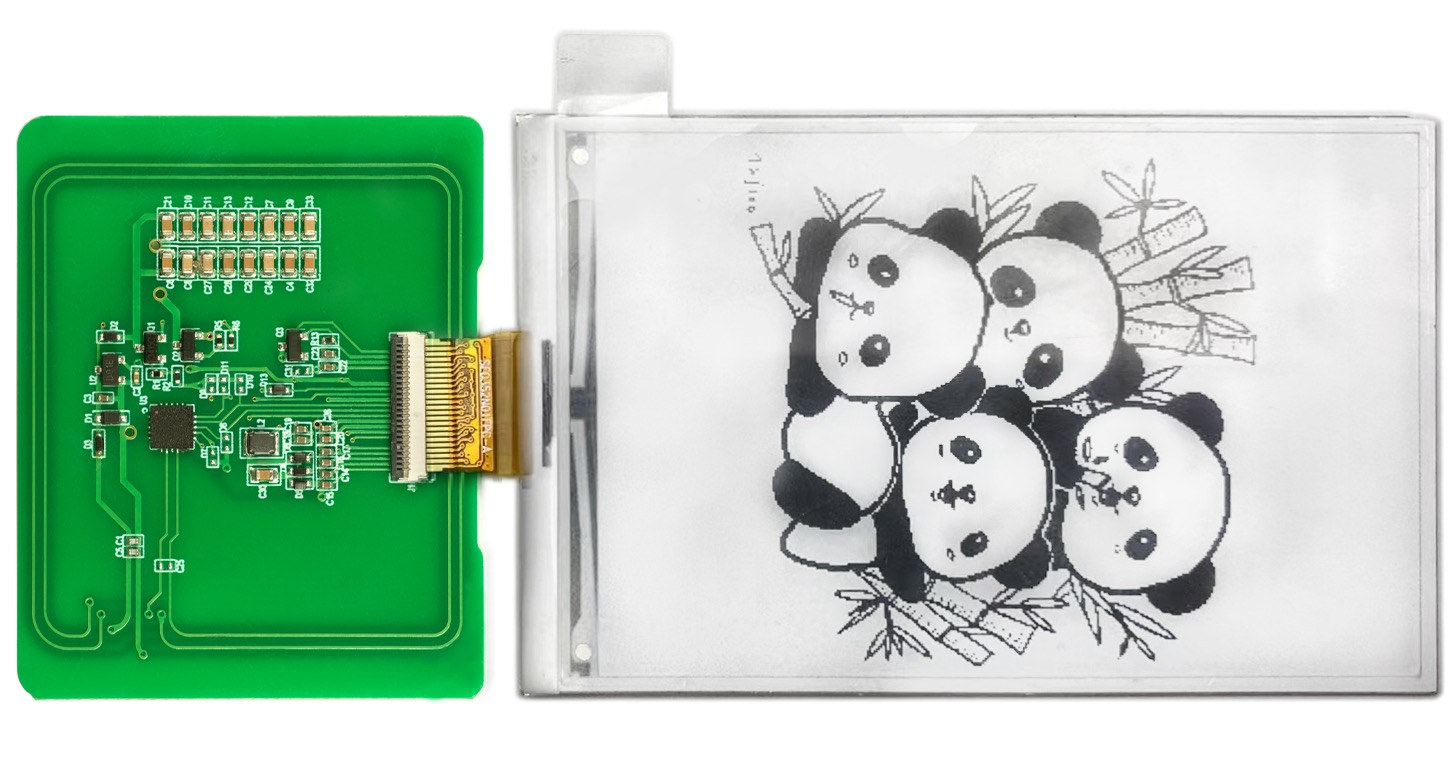

HiPo display NFC reader
HiPo connected to NFC reader board

HiPo specifications:

  • Controller – Ultrachip UC8251 all-in-one driver IC with timing controller for E-tag applications
  • Display
    • 3.52-inch B&W e-Paper display with 360 x 240 resolution (model name: SE0352N01-MNG-A0)
    • 3 seconds refresh time
    • On-chip display RAM
    • White reflectance above 30%
    • Contrast ratio above 8:1
    • Ultra-wide viewing angle (no number provided even in the datasheet)
    • Pure reflective mode, Bi-stable display
  • Adapter boards
    • NFC reader to update the display through a mobile phone or other NFC transmitter
    • Board for connection to 3.3V SPI host from 1 to 5 Mbps
  • Dimensions – 74.5 x 49.7 mm
  • Temperature Range – Operating: 0 to 50°C; storage: -20 to +70°C

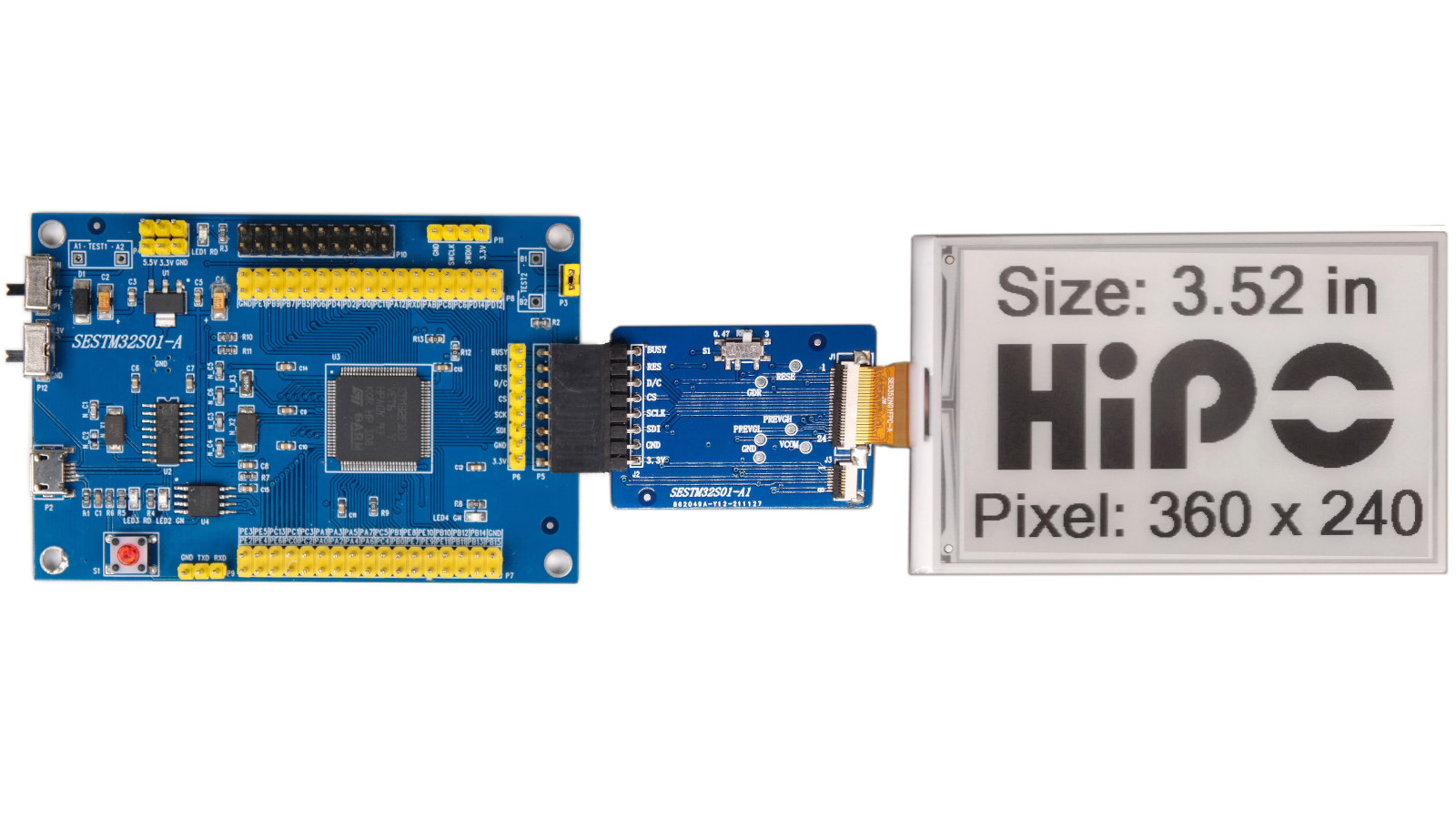

HiPo e-Paper DIsplay SPI STM32 board
HiPo connected to STM32 board through SPI adapter board

If the display is connected to the NFC reader board (green) you’d just typically tap with your smartphone to power it and update the image. The mobile app is not released yet and will be available for Android. If you don’t need NFC, and rather run your own program, the company provides an adapter board plus an STM32 development board, as well as source code samples for Arm’s Keil IDE which can find on Github together with some datasheets and PDF schematics.

The HiPo e-Paper display is now listed on Crowd Supply with a $3,000 funding goal. Two rewards are offered either the display with the NFC reader for $36, or the STM32 devkit for $96. Shipping is free to the US but adds $12 to the rest of the world. Backers should expect their perks to ship by early January 2023.
