UP Squared 2 is a compact Elkhart Lake SBC with Celeron N6210 or Pentium J6426 processor

UP Squared 2 is a compact single board computer powered by either an Intel Celeron N6210 or Pentium J6426 “Elkhart Lake” processor with up to 16GB RAM, 64GB eMMC flash, 4K capable HDMI and DisplayPort video outputs, two Gigabit Ethernet ports, and more.

Slightly smaller than two business cards, the UP Squared 2 is an upgrade of the UP Squared SBC introduced in 2016 with Intel Celeron N3350 or Pentium N4200 “Apollo Lake” processor. The new board offers virtually the same features, except the two HDMI ports, have been replaced by one HDMI port, and one DisplayPort connector, the mini PCIe slot is gone in favor of an M.2 NVMe socket, the Altera FPGA has been removed, and the new system provides overall better specifications in terms of CPU/GPU performance.

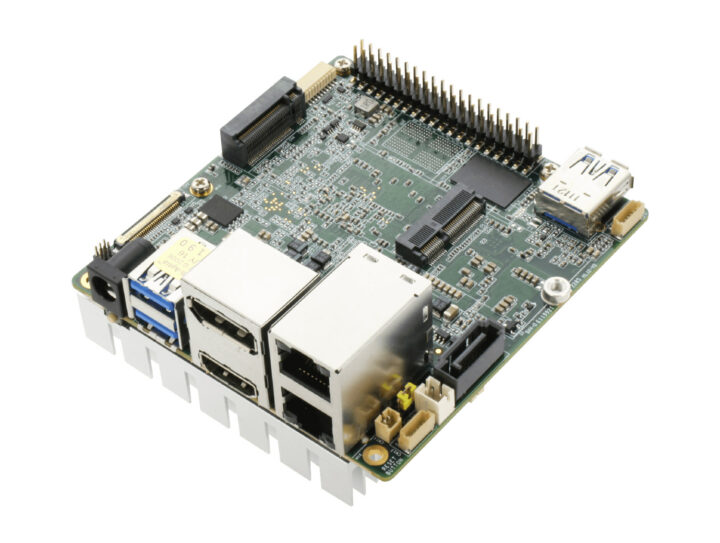

UP Squared V2

UP Squared V2 specifications:

  • Elkhart Lake SoC (one or the other)
    • Intel Celeron N6210 dual-core processor up to 2.6 GHz with Intel UHD graphics
    • Intel Pentium J6426 quad-core processor up to 3.0 GHz with Intel UHD graphics
  • System Memory – Up to 16GB RAM
  • Storage – Up to 64GB eMMC flash, SATA III port + power
  • Video Output
    • 1x HDMI 1.4b port up to 4Kp30
    • 1x DisplayPort 1.2 up to 4Kp60
    • 1x eDP connector
  • Audio – 6-pin wafer with Mic-in and Line-out
  • Connectivity
    • 2x Gigabit Ethernet RJ45 ports via Realtek RTL8111H controllers
    • Optional WiFi 5/6 and Bluetooth via Intel Wireless AC-9260 inserted into M.2 2230 E Key slot
  • USB – 3x USB 3.2 Gen 2 Type-A ports, 2x USB 2.0 via 10-pin wafer
  • Serial – 1x UART via 10-pin wafer, 1x RS-232 via 6-pin header
  • Expansion
    • 1x M.2 2230 E Key socket
    • 1x M.2 2280 M Key socket
    • 40-pin Raspberry Pi HAT header
  • Security – TPM 2.0
  • Misc – RTC, Wake-on-LAN (WoL), Watchdog timer, PXE
  • Power Supply – 12V @ 6A; AT/ATX type (default AT mode)
  • Power Consumption (typical) – 30W to 38W depending on SKU
  • Dimensions – 90 x 85.6 mm
  • Temperature Range – Operating: 0°C to 60°C; storage: -40°C to 80°C
  • Humidity – 0% ~ 90% relative humidity, non-condensing
  • MTBF – 465,586 hours
  • Certifications – CE/FCC Class A, RoHS compliant

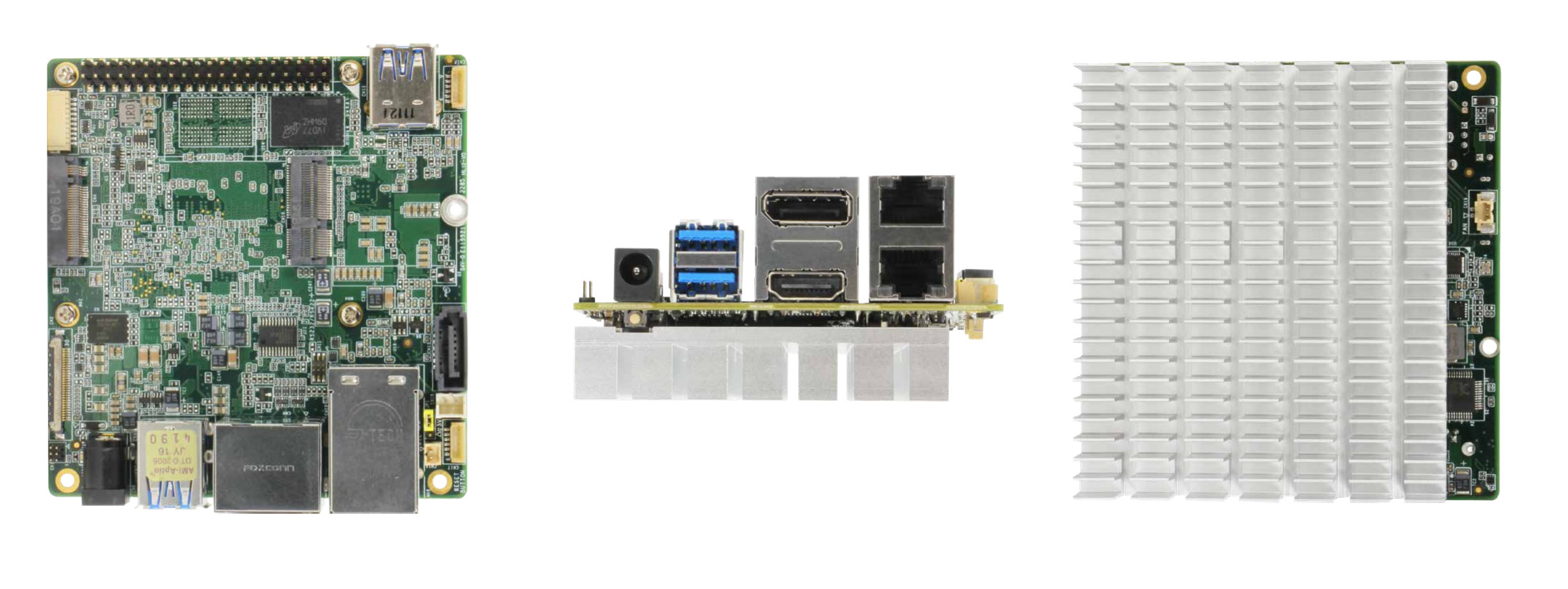

Elkhart Lake SBC Celeron N6210 or Pentium J6426

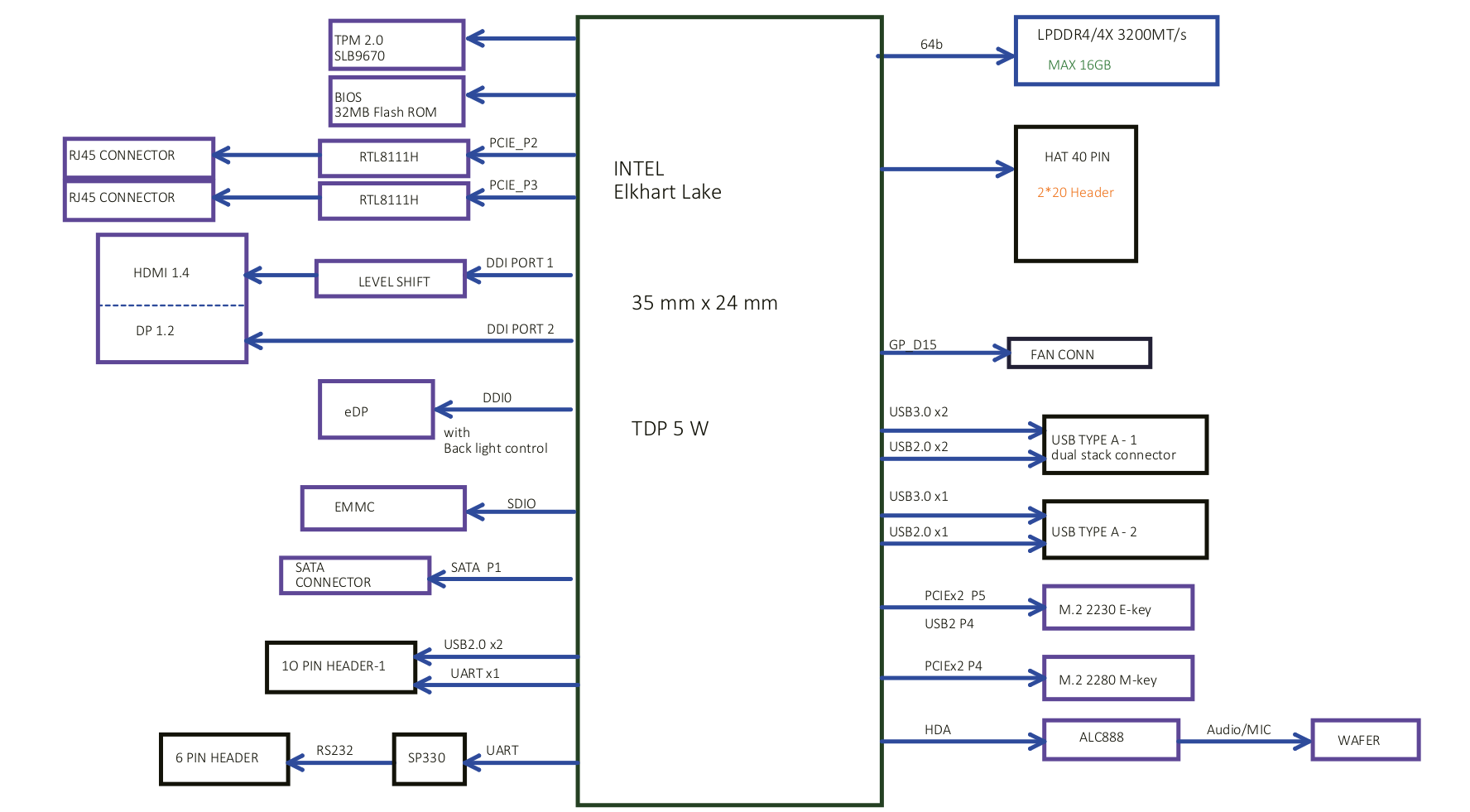

UP Squared V2 Board block diagram
Block Diagram

AAEON says the UP Squared 2 supports Microsoft Windows 10, Windows IoT Core, and Linux (Ubuntu, Yocto). It is designed for fanless operating with a large heatsink placed underneath the board, and the company promises long-term support with supplies available until 2035. The documentation and instructions will basically be the same as for the original UP Squared since the layout and ports are mostly identical.

AAEON is taking pre-orders for the UP Square 2 starting at $161 for the model with a Celeron N6210, 2GB RAM, 32GB eMMC flash, and going up to $323 with a Pentium J6426 CPU, 64GB eMMC flash, and 16GB RAM. The power supply, a WiFI module, and a 256GB M.2 SSD are offered as options at extra cost. A complete mini PC with enclosure, named UP Square 2 Edge, is also in the works, but no additional information is available at the time of writing. You can also check out the product page for more details.

Share this:

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
Tim
Tim
3 months ago

I don’t understand HDMI only doing [email protected] in 2022, sure the display port is [email protected] capable.

Anonymous
Anonymous
3 months ago

What don’t you understand, why they didn’t include at least an HDMI 2.0 port? I guess you’d have to ask them. Gen11 graphics should not be the problem.

Theguyuk
Theguyuk
3 months ago

What is it you want 60 FPS 4k for ?

Anonymous
Anonymous
3 months ago

Who wants to run a display at 30 Hz? Nobody.

Horst
Horst
3 months ago

FPS does not imply games. Some people would like to use a 4K monitor for sharper text.

Willy
3 months ago

Could be interesting for some use cases.

The price calculator on their site doesn’t work, it always shows the same price for all models, you need to click “add to cart” and check the price there. While entry level models are affordable, these quickly reach the price of a NUC when you add RAM.
