T-Watch-Keyboard-C3 with ESP32 “watch”, ESP32-C3 keyboard looks like a miniature PC replica

T-Watch-Keyboard-C3 is a device that looks like a miniature PC replica comprised of an ESP32-C3 powered keyboard, and the TTGO T-Watch ESP32 programmable device with a 1.54-inch touchscreen display.

The LilyGo TTGO T-Watch ESP32 programmable touchscreen display has been around for a while, and the company used to provide an accessory keyboard based on Microchip ATSAM20 Cortex-M0+ microcontroller that has now been replaced with ESP32-C3 WiFi and Bluetooth RISC-V microcontroller to create the T-Watch-Keyboard-C3 devices pictured below.

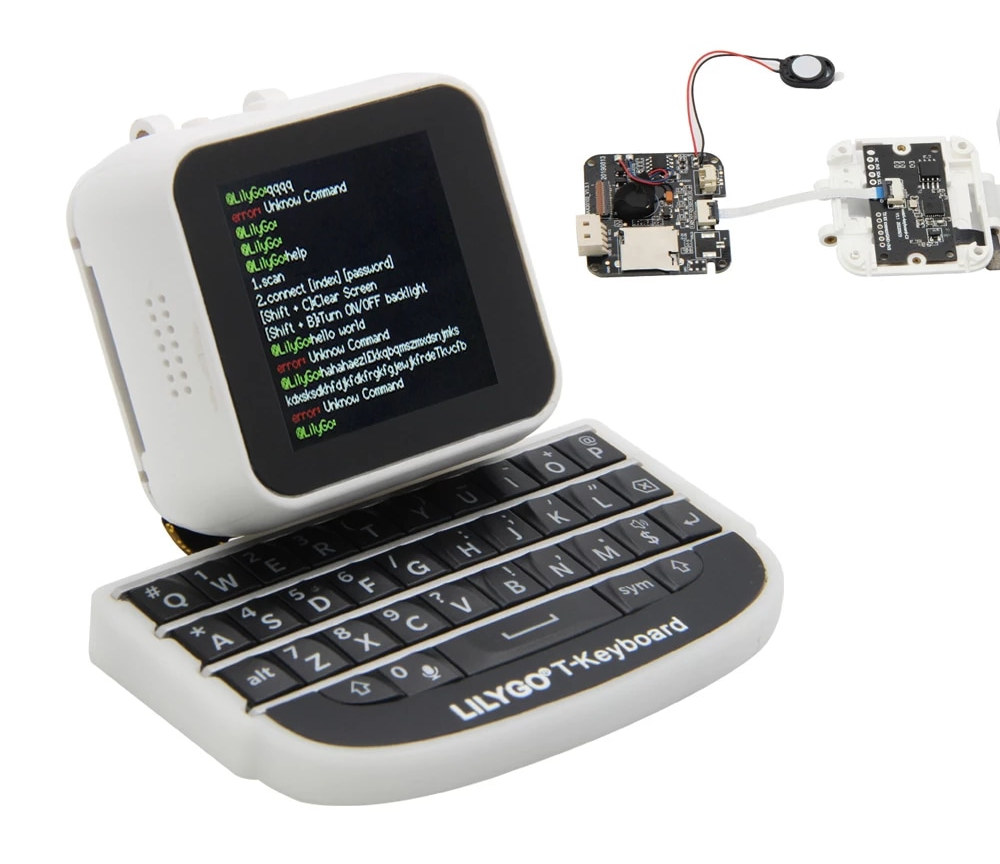

LILYGO Watch Keyboard C3

T-Watch-Keyboard-C3 specifications:

  • TTGO T-Watch
    • MCU – ESP32-D0WDQ6 dual-core microcontroller @ 240 MHz with WiFi 4 and Bluetooth 4.x with 520KB SRAM
    • Memory – 8MB PSRAM
    • Storage – 16MB QSPI flash
    • Display – 1.54-inch LCD screen
    • USB – 1x USB Type-C port for power and programming via CP2104 USB to TTL chip
    • Sensor – 3-axis accelerometer
    • Misc – Power button, RTC
    • Dimensions – 40 x 38 x 20 mm
    • Weight – 43.19 grams
  • Watch-keyboard-C3
    • MCU – ESP32-C3 single core RISC-V microcontroller @ 160 MHz with WiFi 4 and Bluetooth 5.0 LE
    • QWERTY mini keyboard



watch-keyboard-C3 board

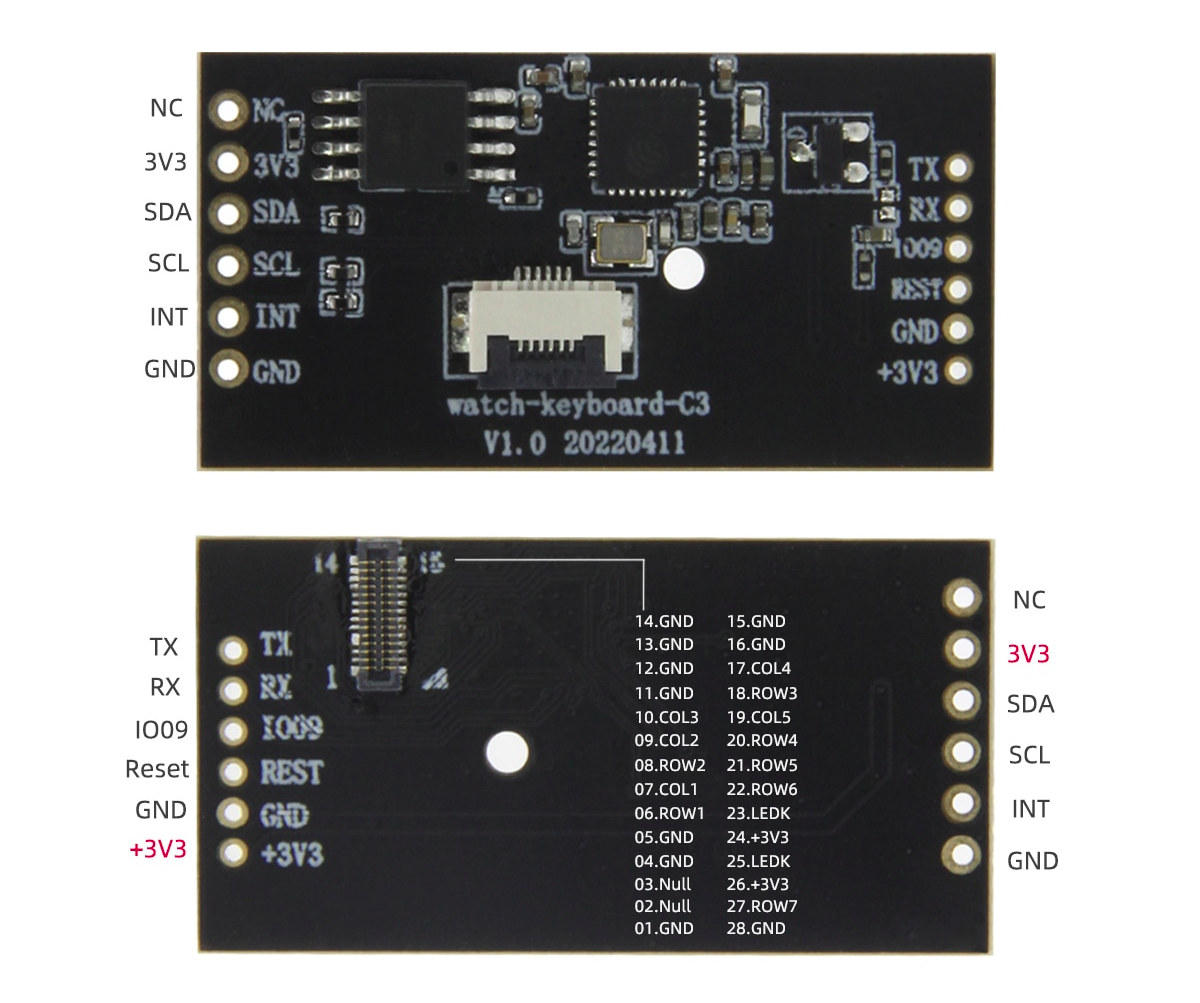

Watch-keyboard-C3 board

LilyGO provides Arduino sample code for the keyboard on Github, and the display in a separate repository. Documentation from the company is not usually great, but it’s really abyssal for the T-Watch-Keyboard-C3, as I had to chat with the company to find out there were actually two ESP32 chips in the design, one ESP32 for the display, and one ESP32-C3 for the keyboard. I’d assume the latter replaced the Microchip MCU due to some supply issues and it is cheap enough. It’s not even clear how the display and keyboard interface with each other although it must be I2C or SPI.

To make matters worse, the Aliexpress page where the T-Watch-Keyboard-C3 is sold for $47.98 includes three options with the other two being the watch-keyboard-C3 board only with some cables and headers, and watch-keyboard-C3 board with additional “motor mic speaker module” which I assume is a board with a vibration motor, and built-in speaker and microphone, with the latter possibly not included in the T-Watch-Keyboard-C3 package, but only God and LilyGo know about that…
